Mobile Concrete Batching Plant Price Asphalt Mixing Plant
Shanghai Super-Above Industry Holdings Co., Ltd.- Shotcrete Type：Wet
- Machining Process：Vacuum
Base Info
- Model NO.：Concrete Batching Plant
- Structure：Rotor Type
- Productivity：240m²,h
- Feeding Height：1400mm
- Vibrating Amplitude：2.2mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：Yellow
- Capacity：35-90cbm,H
- Mixer：Js Series
- Max. Aggr. Size：80mm
- Discharging Height：3.8m
- Transport Package：Naked Shipment
- Specification：CE
- Trademark：Super-above
- Origin：Jiangsu, China
- HS Code：8474310000
- Production Capacity：5000PC,Year
Description
Basic Info.
Model NO. Concrete Batching Plant Structure Rotor Type Productivity 240m²/h Feeding Height 1400mm Vibrating Amplitude 2.2mm Certification ISO9001: 2000, CE Condition New Color Yellow Capacity 35-90cbm/H Mixer Js Series Max. Aggr. Size 80mm Discharging Height 3.8m Transport Package Naked Shipment Specification CE Trademark Super-above Origin Jiangsu, China HS Code 8474310000 Production Capacity 5000PC/YearProduct Description

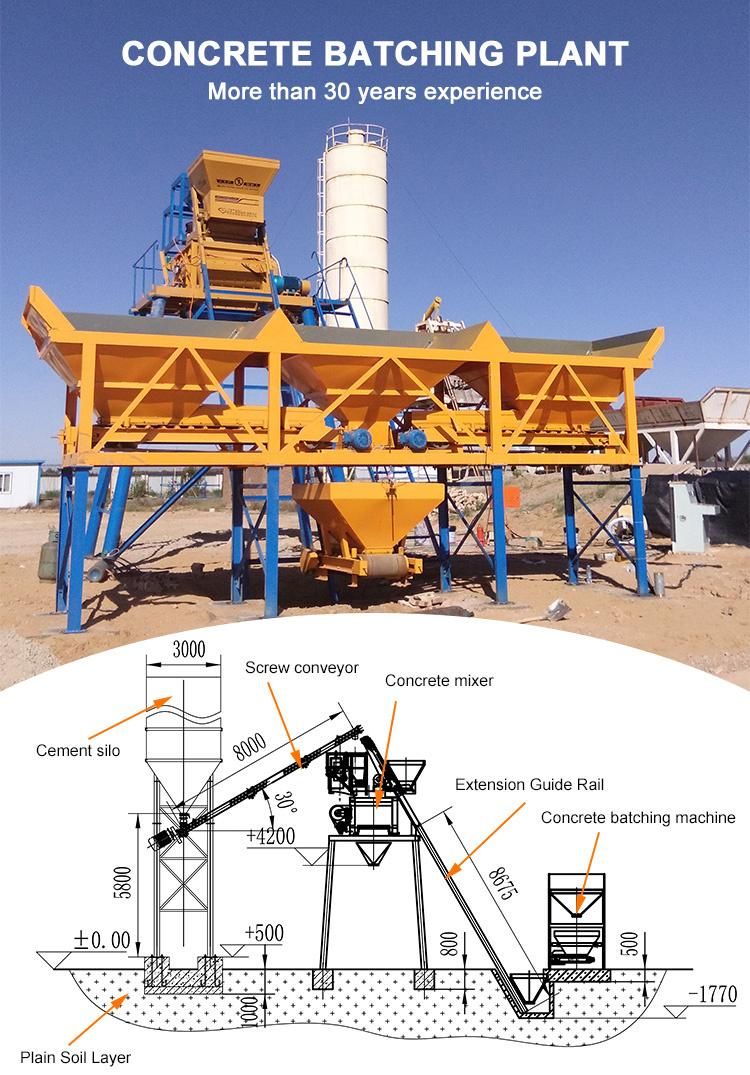

Mobile Concrete Batching Plant Price Asphalt Mixing PlantConcrete batch plants can be portable, stationary, or semi-portable. Typical batch plants are used for ready mix, concrete recycling, civil infrastructure, maritime work, and precast applications etc. In order to meet the construction requirements in new-normal condition, we developed different concrete mixing plants, including 10 categories, 32 models, 28 options.
Specifications| Model | YHZS35 | YHZS50 | YHZS75 | YHZS90 |
| Capacity (m3/h) | 35 | 50 | 75 | 90 |
| Mixer | JS750 | JS1000 | JS1500 | JS2000 |
| Batch machine | 4*5 m3 | 4*6 m3 | 4*6 m3 | 4*8 m3 |
| Max. Aggr. Size (mm) | ≤ 80 | ≤ 80 | ≤ 80 | ≤ 80 |
| Aggr. scale | (0-1500)kg, ±2% | (0-2400)kg, ±2% | (0-3600)kg, ±2% | (0-4800)kg, ±2% |
| Water scale | (0-200)kg, ±1% | (0-250)kg, ±1% | (0-400)kg, ±1% | (0-500)kg, ±1% |
| Cement scale | (0-400)kg, ±1% | (0-500)kg, ±1% | (0-900)kg, ±1% | (0-1200)kg, ±1% |
| Additive scale | (0-30)kg, ±1% | (0-30)kg, ±1% | (0-30)kg, ±1% | (0-30)kg, ±1% |
| Total power (kW) | 60 | 80 | 100 | 115 |
| Discharging height (m) | 3.8 | 3.8 | 3.8 | 3.8 |
| Cement silo (optional) | 100T | 100T | 100T | 100T |
| Screw conveyor | 219mm*9 | 219mm*9 | 219mm*9 | 219mm*9 |
| Manual cement loading bucket | 2.5m3 | 2.5m3 | 2.5m3 | 2.5m3 |
| Screw conveyor | 219mm*12m | 219mm*12m | 219mm*12m | 219mm*12m |
| Model | YHZD25 | YHZD35 | YHZS50 | YHZS75 |
| Capacity (m3/h) | 25 | 25 | 50 | 75 |
| Mixer | JD500 | JD750 | JSJ1000 | JSJ1500 |
| Power (kW) | 1x18.5 | 1x30 | 2x18.5 | 2x30 |
| Output (m3) | 0.5 | 0.75 | 1 | 1.5 |
| Max. aggr. size (mm) | <=60 | <=60 | <=60 | <=80 |
| Hopper | 4*4m3 | 4*4m3 | 4*6m3 | 4*6m3 |
| Agg. Scale | (0-1000)kg ±2% | (0-1500)kg ±2% | (0-2000)kg ±2% | (0-3000)kg ±2% |
| Cement (kg) | (0-300)kg, ±1% | (0-500)kg, ±1% | (0-600)kg, ±1% | (0-800)kg, ±1% |
| Water (kg) | (0-200)kg, ±1% | (0-300)kg, ±1% | (0-300)kg, ±1% | (0-400)kg, ±1% |
| Admixture (kg) | (0-20)kg, ±1% | (0-20)kg, ±1% | (0-20)kg, ±1% | (0-20)kg, ±1% |
| Max. towing speed(km/h) | 15 | 15 | 15 | 15 |
| Tread (outside)(mm) | 2800 | 3200 | 3400 | 3400 |
| Turning radius(mm) | 11 | 15 | 15 | 15 |
| Total weight(kg) | 20000 | 25000 | 15000 | 32000 |
| Power(kW) | 35 | 48 | 65 | 90 |
| Discharge Height (m) | 2.8 | 2.8 | 2.8 | 2.8 |

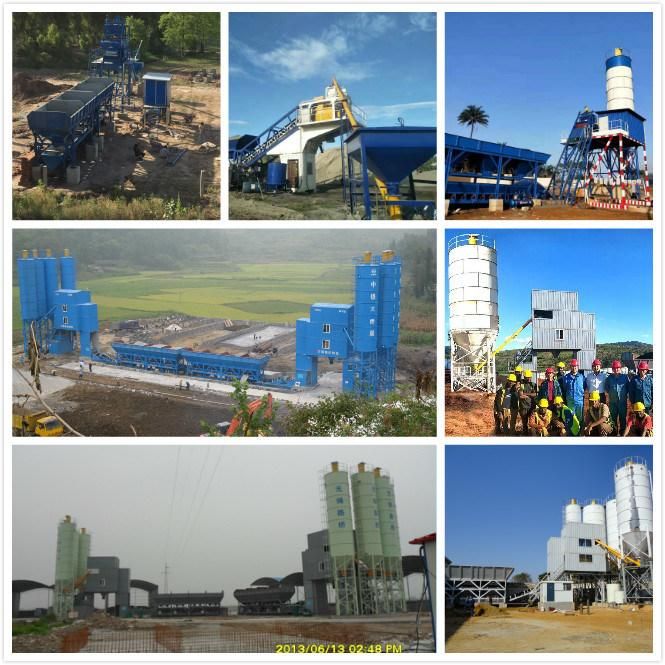

Our Cases
