Clip on Rubber Pad Length 450mm Pitch 135mm
Shanghai Puyi Industrial Co., Ltd.- Type:Clip-on
- Application:All Size
- Certification:ISO9001: 2000
- Condition:New
- Material:Rubber and Steel
- Length:450mm
Base Info
- Model NO.:length 450mm pitch 135mm
- Height:71mm
- Pitch:135mm
- Weight:8.22kg
- Color:Black
- Warranty:Guarantee 12 Months Under Normal Use
- Transport Package:Standard Packings or as Your Requirements
- Specification:450HD
- Trademark:No Marks or As Buyer′s Requests
- Origin:Shanghai
- HS Code:8431499900
- Production Capacity:5000PCS,Month
Description
Clip-onType Pitch h L W H Weight 450HB 135 18 450 106 51 3.8
Application:
[Komatsu]
PC40(76)PC40MR-2( 78)PC45(76)PC50(76)PC50MR-2(78)PC58
[HITACHI]
EX40(76)EX45(76) EX50(76)EX55(76)EX58(78 )ZX40U(76)ZX50(76)
ZX55UR(76)
[SHIN CATERPILLAR MITSUBISHI]
MM40(76)MM45(76) MM55(76)304CR(76)305CR(76)
[KOBOTA]
K040(76)K045(76 )RX502(78)U40-1,-2 ,-3(78)U45(76)U50(78)
[YANMAR]
B50(74)B6U(76) Vio50(76)
[SUMITOMO]
SH40JX(76)SH4 ,4J,4UJ,4JX(76)SH50U(76)SH55U-2(76)SH55J(78)
SH65U-1,2(82)
[KOBELCO]
SK042(76)SK045(76) SK40SR(72)SK45SR(76) SK50UR(76) SK60
[Airman]
AX40(76)AX45(76) AX58MU(78)AX40U,50U(76)
[IHI]
40JX(76)45J,UJ( 76)50Z(78)
[KATO]
HD50UR(78)HD140(78) HD205UR(78 )
Other size:
Bolt-on
Chain-on
3. Clip-on
Quality Control:
1.Ex works Inspection
2.Products Audits/Examination(Strict inspection according to customer's request)
3.Production Procedure Audit/Examination(Entire Procedure Control)
4.Raw material Inspection/Examination;Purchased Parts Inspection(Including All Purchased Material)
Rubber track warranty
All Pooyert rubber tracks and rubber pads are one year normal use warranty,If there is any quality problem,during the warranty period,we are responsible for the replacement of the new rubber track,just need to provide photos of the tracks as they sit on the machine and serial number on the tracks.
Workshop:
Application:
[Komatsu]
PC40(76)PC40MR-2( 78)PC45(76)PC50(76)PC50MR-2(78)PC58
[HITACHI]
EX40(76)EX45(76) EX50(76)EX55(76)EX58(78 )ZX40U(76)ZX50(76)
ZX55UR(76)
[SHIN CATERPILLAR MITSUBISHI]
MM40(76)MM45(76) MM55(76)304CR(76)305CR(76)
[KOBOTA]
K040(76)K045(76 )RX502(78)U40-1,-2 ,-3(78)U45(76)U50(78)
[YANMAR]
B50(74)B6U(76) Vio50(76)
[SUMITOMO]
SH40JX(76)SH4 ,4J,4UJ,4JX(76)SH50U(76)SH55U-2(76)SH55J(78)
SH65U-1,2(82)
[KOBELCO]
SK042(76)SK045(76) SK40SR(72)SK45SR(76) SK50UR(76) SK60
[Airman]
AX40(76)AX45(76) AX58MU(78)AX40U,50U(76)
[IHI]
40JX(76)45J,UJ( 76)50Z(78)
[KATO]
HD50UR(78)HD140(78) HD205UR(78 )
Other size:
Bolt-on
Type | Pitch | h | D | d | Bolt | L | W | H | Weight |
230BA | 90 | 15 | 150 | 0 | M12 | 230 | 60 | 31 | 0.800 |
230B | 101 | 16 | 150 | 0 | M12 | 230 | 70 | 39 | 0.900 |
250B | 101 | 16 | 200 | 0 | M12 | 250 | 70 | 39 | 0.925 |
300B | 101 | 16 | 200 | 0 | M12 | 300 | 70 | 39 | 1.100 |
300BA | 101 | 16 | 200 | 0 | M12 | 300 | 70 | 39 | 1.100 |
350B | 101 | 16 | 200 | 0 | M12 | 350 | 70 | 39 | 1.230 |
350BA | 101 | 16 | 250 | 0 | M12 | 350 | 70 | 39 | 1.230 |
350BD | 135 | 14 | 250 | 46 | M12 | 350 | 106 | 40 | 2.035 |
350BL | 135 | 14 | 290 | 46 | M12 | 350 | 106 | 40 | 1.900 |
350BR | 135 | 14 | 290 | 46 | M12 | 350 | 106 | 40 | 1.900 |
380B | 135 | 14 | 300 | 46 | M12 | 380 | 106 | 40 | 2.330 |
400B | 135 | 14 | 300 | 46 | M12 | 400 | 106 | 40 | 2.180 |
400BLR | 135 | 14 | 300 | 46 | M12 | 400 | 106 | 40 | 2.190 |
400BW | 140 | 18 | 300 | 52 | M14 | 400 | 123 | 65 | 4.000 |
400BH | 140 | 18 | 350 | 52 | M14 | 400 | 123 | 45 | 3.000 |
450BE | 135 | 14 | 350 | 46 | M12 | 450 | 106 | 40 | 2.450 |
450B | 154 | 20 | 350 | 58 | M14 | 450 | 124 | 49 | 3.500 |
450BLR | 154 | 20 | 350 | 58 | M14 | 450 | 124 | 49 | 3.500 |
500B | 171 | 20 | 400 | 60 | M16 | 500 | 137 | 57 | 4.580 |
500BA | 175 | 26 | 400 | 57 | M16 | 500 | 126 | 59 | 4.510 |
600B | 190 | 26 | 400 | 69 | M20 | 600 | 136 | 71 | 7.500 |
260BM | 18 | 190 | 53 | M12 | 260 | 120 | 50 | ||
260B | 18 | 200 | 54 | M14 | 260 | 112 | 48 | ||
260BK | 18 | 200 | 57 | M14 | 260 | 120 | 48 | ||
300BM | 18 | 227 | 57 | M12 | 300 | 120 | 50 | ||
300BK | 18 | 220 | 57 | M14 | 300 | 130 | 55 | ||
350BK | 155 | 25 | 270 | 60 | M14 | 350 | 135 | 60 | 4.000 |
400BK | 25 | 300 | 60 | M14 | 400 | 135 | 60 | ||
450BK | 31 | 350 | 80 | M14 | 450 | 170 | 76 | ||
200T | 0 | 160 | 0 | M14 | 200 | 90 | 30 | ||
305BP | 0 | 177.8 | 0 | M16 | 305 | 114 | 32 | ||
355BP | 0 | 237.5 | 0 | 5/8" | 355 | 132 | 32 | ||
455BP | 0 | 305 | 0 | 3/4" | 455 | 132 | 32 | ||
300-2 | 155 | 18 | 220 | 0 | M14 | 300 | 135 | 50 | 2.400 |
300-4 | 155 | 18 | 220 | 45 | M12 | 300 | 135 | 50 | 2.400 |
320-2 | 155 | 18 | 220 | 0 | M14 | 320 | 135 | 50 | 2.700 |
320-4 | 155 | 18 | 220 | 45 | M12 | 320 | 135 | 50 | 2.700 |
Chain-on
Type | Pitch | D | d | S | Bolt | L | W | H | Weight |
300C | 135 | 144 | 116 | 22 | M12 | 300 | 95 | 45 | |
400C | 135 | 94 | 64 | 46 | M12 | 400 | 125 | 52 | |
400CA | 135 | 99 | 72 | 43.5 | M12 | 400 | 125 | 52 | |
400CK | 135 | 100 | 73 | 43.5 | M12 | 400 | 125 | 52 | |
400CB | 135 | 104 | 80 | 46 | M12 | 400 | 125 | 52 | |
400CD | 135 | 110 | 80 | 46 | M12 | 400 | 125 | 52 | |
400CV | 135 | 106 | 76 | 46 | M12 | 400 | 125 | 52 | |
400CK | 140 | 80 | 80 | 52 | M12 | 400 | 125 | 52 | |
400CW | 140 | 86 | 86 | 52 | M12 | 400 | 125 | 52 | |
450CN | 140 | 83 | 83 | 52 | M12 | 450 | 125 | 52 | 6kg |
450CW | 140 | 86 | 86 | 52 | M12 | 450 | 125 | 52 | |
450CA | 135 | 99 | 72 | 43.5 | M12 | 450 | 125 | 52 | |
450CB | 154 | 90 | 90 | 46.3 | M14 | 450 | 146 | 55 | |
450CD | 154 | 90 | 90 | 55 | M14 | 450 | 146 | 55 | |
450CS | 154 | 73 | 73 | 57 | M14 | 450 | 146 | 55 | |
450C | 154 | 89 | 73 | 57 | M14 | 450 | 146 | 55 | 8kg |
500CW | 135 | 104 | 80 | 46 | M12 | 500 | 125 | 52 | |
500CB | 175 | 102.4 | 86.4 | 57 | M16 | 500 | 162 | 69 | |
500C | 171 | 108 | 108 | 60.4 | M16 | 500 | 162 | 69 | 12.3kg |
500CS | 171 | 104 | 88 | 58 | M16 | 500 | 162 | 69 | |
500CA | 190 | 160.4 | 124.4 | 62 | M20 | 500 | 178 | 72 | |
500CD | 190 | 155.6 | 119.6 | 69 | M20 | 500 | 178 | 72 | |
600C | 171 | 108 | 108 | 60.4 | M16 | 600 | 162 | 69 | |
600CD | 190 | 155.6 | 119.6 | 69 | M20 | 600 | 178 | 72 | |
600CA | 190 | 160.4 | 124.4 | 62 | M20 | 600 | 178 | 72 | |
600CB | 190 | 160.4 | 124.4 | 62 | M18 | 600 | 178 | 72 | |
300 | 155 | 88.9 | 88.9 | 57.1 | M12 | 300 | 186 | 55 | 6kg |
320 | 155 | 104 | 88.9 | 55 | M12 | 320 | 186 | 55 |
3. Clip-on
Type | Pitch | h | L | W | H | Weight |
380HD | 135 | 18 | 380 | 104 | 55 | 3.215 |
400HD | 135 | 18 | 400 | 106 | 51 | 3.055 |
450HD | 135 | 18 | 450 | 106 | 51 | 3.395 |
450HW | 154 | 20 | 450 | 124 | 50 | |
450HB | 175 | 26 | 450 | 127 | 68 | 5.600 |
500HD | 175 | 26 | 500 | 127 | 68 | 6.230 |
500HW | 171 | 20 | 500 | 137 | 68 | |
500HB | 175 | 18 | 500 | 127 | 60 | 6.206 |
600HD | 175 | 26 | 600 | 127 | 68 | 7.220 |
600HB | 190 | 26 | 600 | 137 | 71 | 8.220 |
600HA | 216 | 30 | 600 | 160 | 76 | 8.980 |
700HW | 171 | 20 | 700 | 137 | 63 | 8.200 |
700HD | 175 | 26 | 700 | 127 | 68 | 8.275 |
750HA | 216 | 30 | 750 | 160 | 76 | |
800HD | 190 | 26 | 800 | 137 | 70 | 9.505 |
Quality Control:
1.Ex works Inspection
2.Products Audits/Examination(Strict inspection according to customer's request)
3.Production Procedure Audit/Examination(Entire Procedure Control)
4.Raw material Inspection/Examination;Purchased Parts Inspection(Including All Purchased Material)
Rubber track warranty
All Pooyert rubber tracks and rubber pads are one year normal use warranty,If there is any quality problem,during the warranty period,we are responsible for the replacement of the new rubber track,just need to provide photos of the tracks as they sit on the machine and serial number on the tracks.

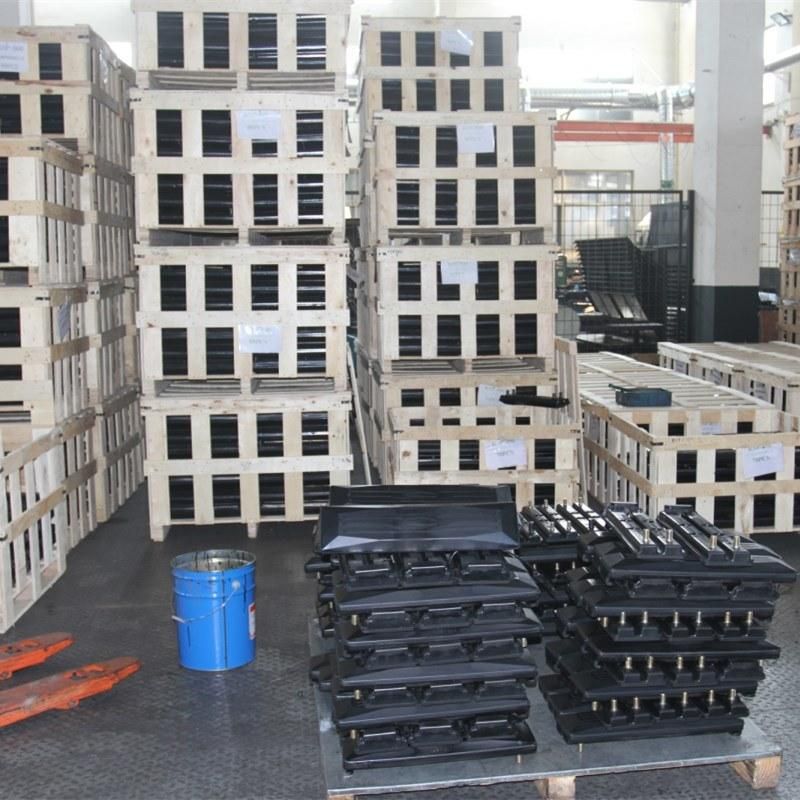

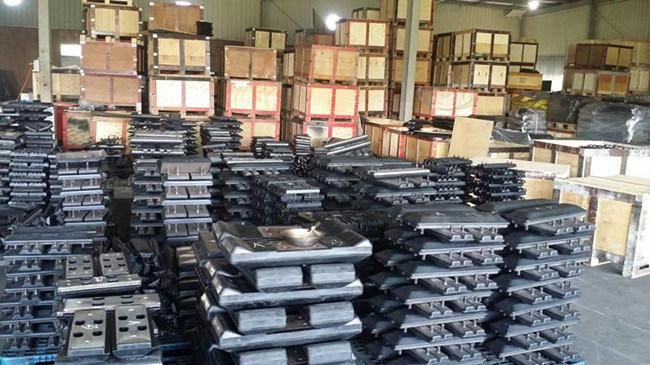

Workshop:
