• Model NO.：SWD8
• Condition：New
• Color：Yellow
• Engine：Cummins
• Blade Type：Semi U
• Operating Weight：35.5ton
• Ripper：Optional Single Shank or Three Shank
• Warranty：One Year
• Track Shoe：560mm
• Transport Package：Naked
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84294990
• Production Capacity：2000 PCS Per Year

Basic Info.

Model NO. SWD8 Condition New Color Yellow Engine Cummins Blade Type Semi U Operating Weight 35.5ton Ripper Optional Single Shank or Three Shank Warranty One Year Track Shoe 560mm Transport Package Naked Specification ISO Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 2000 PCS Per Year

Product Description

Main Features

Cummins water-cooled engine has strong power and 20% torque reserve.
Hydraulic mechanical torque converter combines the high efficiency of mechanical transmission and the adaptive performance of hydraulic transmission; the average efficiency of the converter is more than 10% higher than that of the ordinary flat frame type.
High efficiency power shift gearbox, simple structure, advanced, less power transmission links, low power consumption, high transmission efficiency.

High driving type, high driving sprocket, reduces the impact load transmitted directly from the ground to the driving sprocket, and improves the service life of the transmission system by about 30%.
The self-adaptive L-type elastic suspension device improves the connection stiffness between the frame and the frame by pivot-type winching. At the same time, the ground adhesion performance is good, the driving comfort is good, and the traction performance is superior.
The layout of the whole machine is reasonable, which achieves the best combination of the center of gravity, the cutting force of the spade and the strong dynamic performance of the whole machine, and obviously improves the working productivity of the bulldozer.

Ergonomics hexahedron cab, comfortable driving, good vision.
Suspension single deceleration pedal, small size, large moving space, comfortable operation.The seat adjustment is convenient and provides the most comfortable control posture for the driver. Cab integral sealing shock absorption system, low noise.Vehicle safety passage system to ensure driver safety.

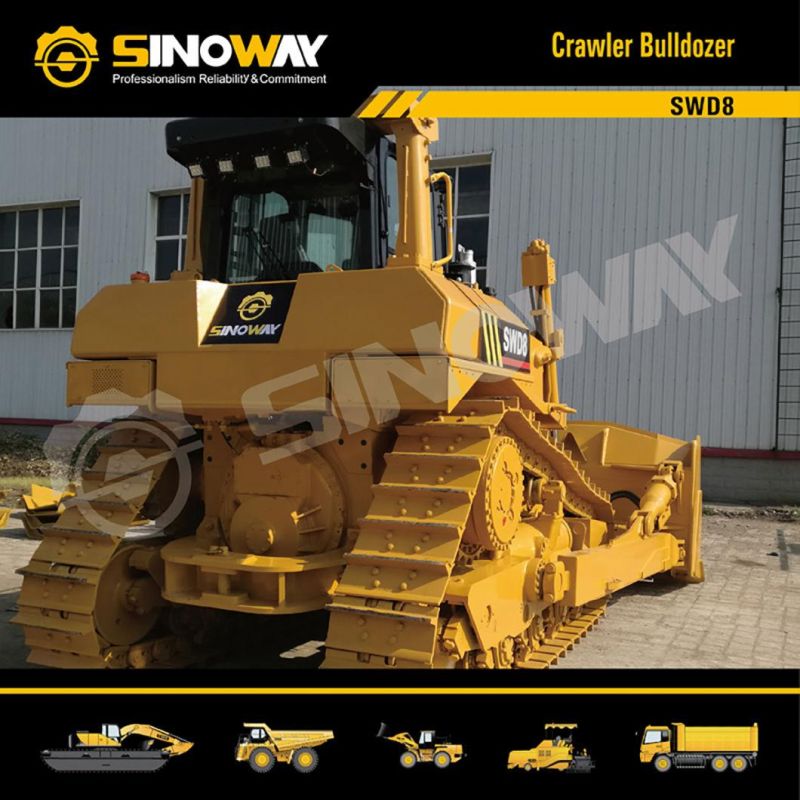

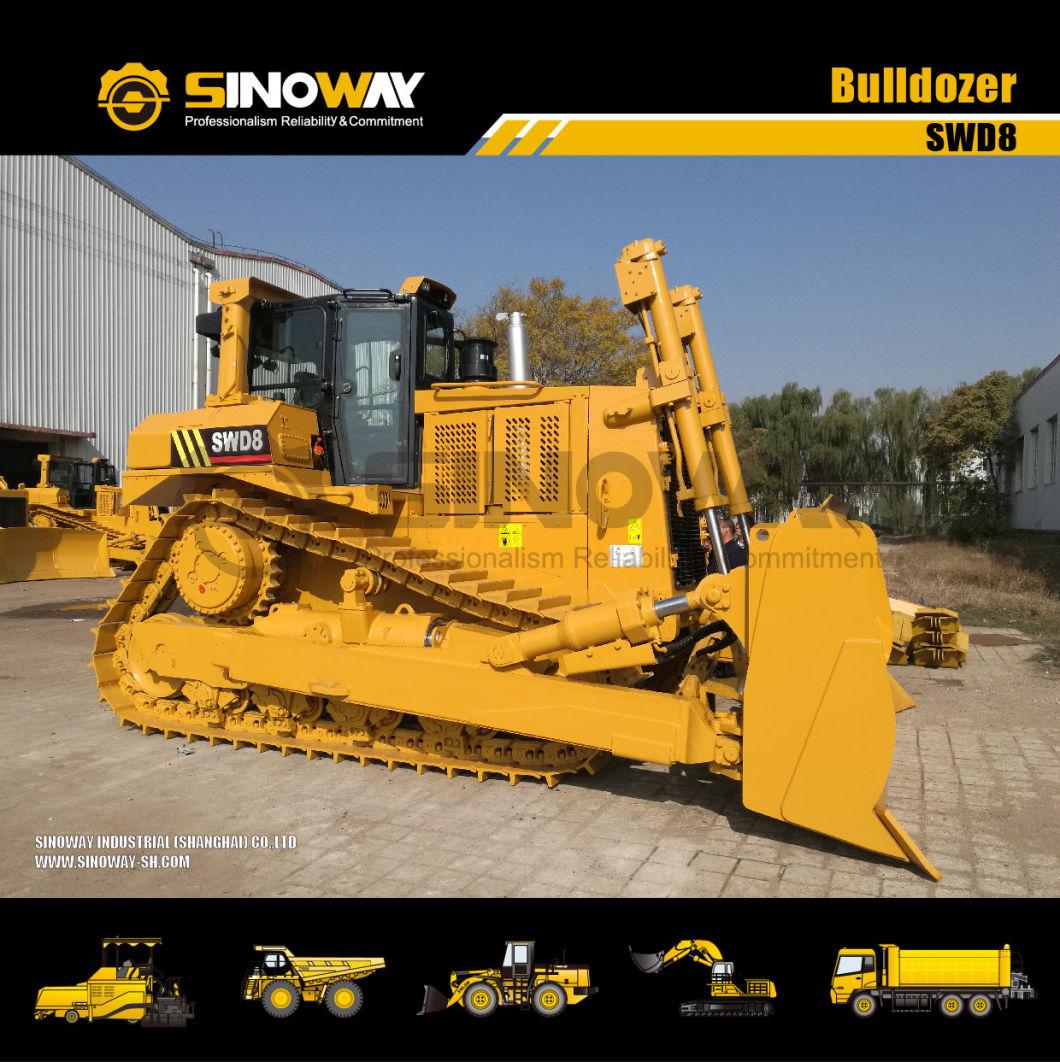

Machine Show





Specifications


Engine
Model	Cummins
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	257KW
Rated speed	1900rp
Implement Hydraulic System
Hydraulic flow rate	220L/min
Hydraulic pressure	21MPa
Pump type	Double vane pump
Control valve	Hydraulic operated
Under Carriage System
Sprocket	Elevated
Number of track rollers (each side)	8
Number of carrier rollers (each side)	(4 single, 4 double)
Number of front idler (each side)	12
Track type	Single grouser
Track tension	2083mm
Track pitch	216mm
Track width	560mm
Number of track shoes (each side)	44
Track length on ground	3252mm
Ground clearance	556mm
Main Technical Specification
Operating weight(without ripper)	33000Kg
Ground pressure(without ripper)	0.093MPa
Grade ability	58%

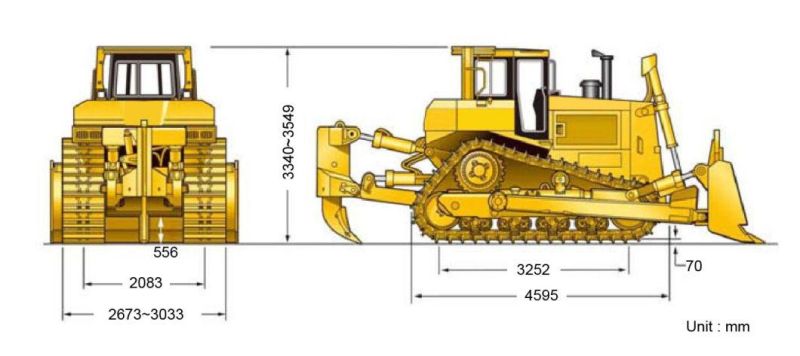

Overall dimensions (L×W×H,without ripper)	6105×3990×3600mm
Max. tractive force	380KN
Working Equipment
Blade type	Semi-U
Width	3940mm
Height	1690mm
Max. digging depth	582mm
Max. lift above ground	1288mm
Tilting angle	12°
Blade capacity	11.2m3
Transmission System
Gear box	Power separating hydraulic mechanical type
Torque converter	Torque divider combined
Transmission assembly	Integrated bevel gear, multiple stage planetary gear box, speed changing control valve
Final drive	Two stage planetary reduction gear mechanism
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F3/R3
Forward/Reverse I	3.9/4.8
Forward/Reverse II	6.8/8.4
Forward/Reverse III	10.8/13.9
Service Capacities
Fuel tank	625L
Implement hydraulic	100L
Engine crankcase	41L
Cooling system	121L
Roller frames (each)	65L
Power train	150L
Pivot shaft compartment	15L
Final drives (each)	15L
Steering clutch	Oil-type, free-adjustment, multiple disc, pressed hydraulically
Steering brake	Pressed by spring, separated hydraulically,costant meshed type
