Gr180 Used Earth Work Motor Grader Construction and Engineering Use

Henan Tarzan Industrial Co., Ltd.
  • Certification：CCC
  • Condition：Used
  • Application：Railway, Highway, Construction
  • Transmission：Power
  • Walking Mode：Wheeled
  • Type：Medium-sized Grader

Base Info

  • Model NO.：GR180
  • Product Name：Gr180 Used Earth Work Motor Grader Construction an
  • Engine Model：CTA8.3 or Sc 8d190g2b1
  • Engine Power：140kw,2200rpm
  • Vehicle Working Weight：15400kg
  • Max. Traction Force：84kn
  • Shovel Blade Length：3965mm
  • Shovel Blade Height (Chord Length)：610mm
  • Shovel Blade Max. Tilting Angle：90 Degree
  • Shovel Blade Max. Rotate Angle：360 Degree
  • Shovel Blade Max. Lifting Height：450mm
  • Shovel Blade Max. Shoveling Depth：500mm
  • Shovel Blade Length X Chord Height：3965*610mm
  • Tyre Pressure：260kpa
  • Min. Turning Radius：7300mm
  • Hydraulic System Working Pressure：18MPa
  • Transport Package：Nude Packing
  • Specification：8900*2625*3470mm
  • Trademark：none
  • Origin：China
  • HS Code：8429201000
  • Production Capacity：50 Units Per Month

Description

Basic Info.

Model NO. GR180 Product Name Gr180 Used Earth Work Motor Grader Construction an Engine Model CTA8.3 or Sc 8d190g2b1 Engine Power 140kw/2200rpm Vehicle Working Weight 15400kg Max. Traction Force 84kn Shovel Blade Length 3965mm Shovel Blade Height (Chord Length) 610mm Shovel Blade Max. Tilting Angle 90 Degree Shovel Blade Max. Rotate Angle 360 Degree Shovel Blade Max. Lifting Height 450mm Shovel Blade Max. Shoveling Depth 500mm Shovel Blade Length X Chord Height 3965*610mm Tyre Pressure 260kpa Min. Turning Radius 7300mm Hydraulic System Working Pressure 18MPa Transport Package Nude Packing Specification 8900*2625*3470mm Trademark none Origin China HS Code 8429201000 Production Capacity 50 Units Per Month

Product Description

GR180 Used Earth Work Motor Grader Construction And Engineering Use

Suit for civil construction, road building, water conservancy project, house building, mining,  engineering work, etc.

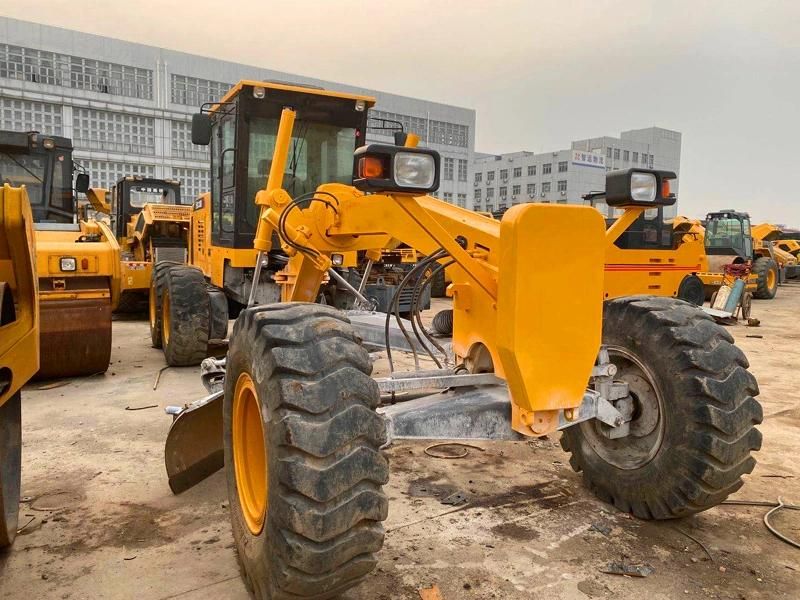

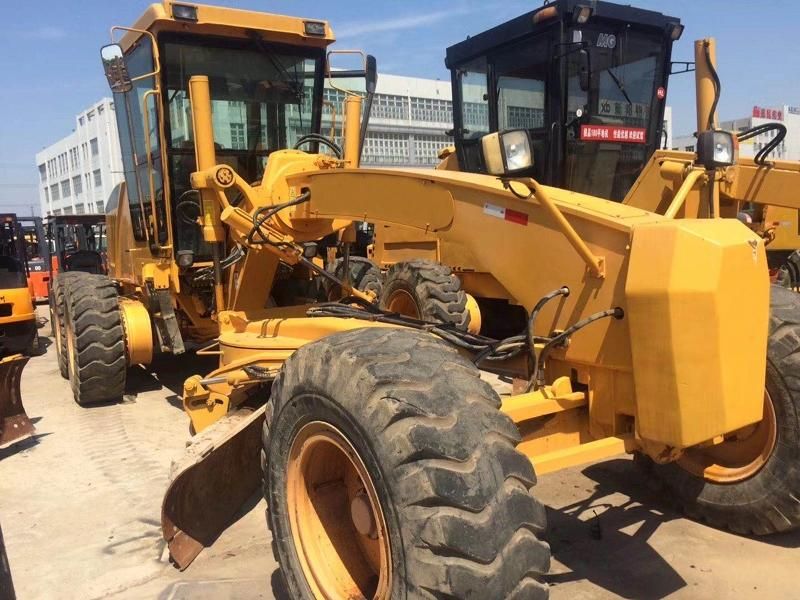

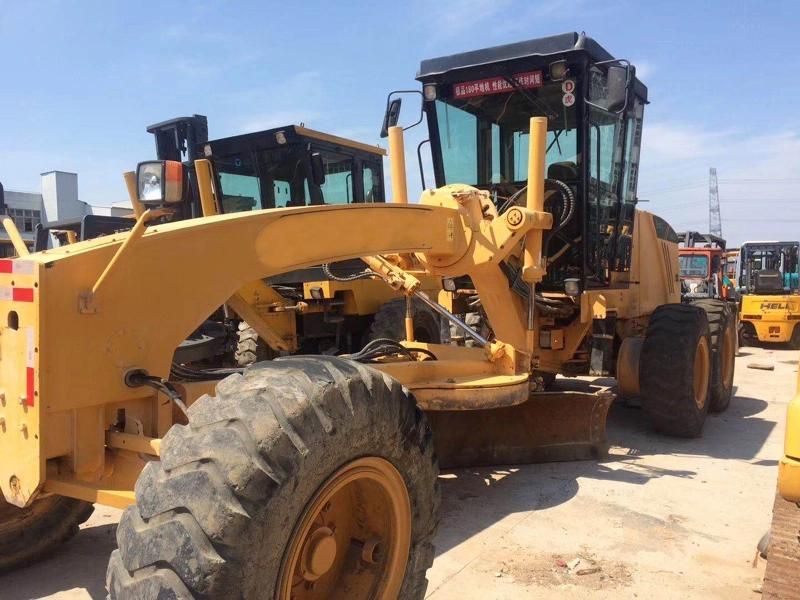

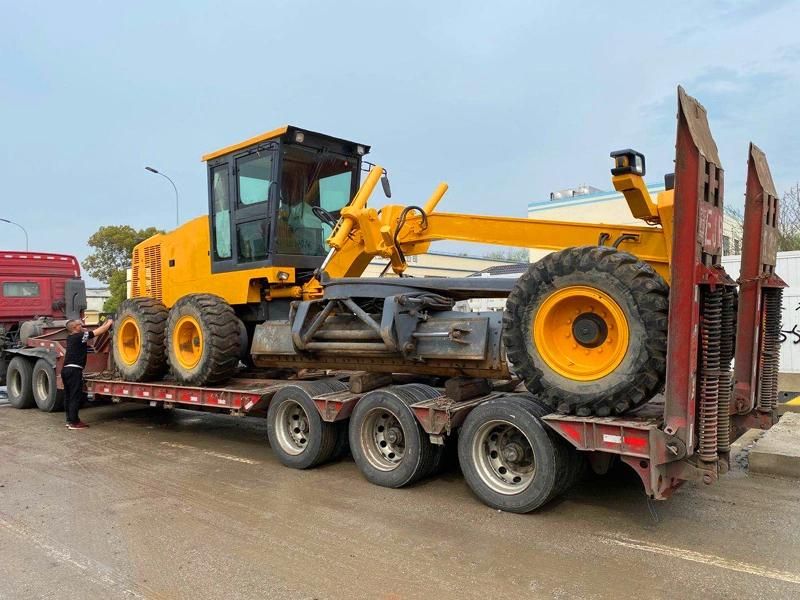

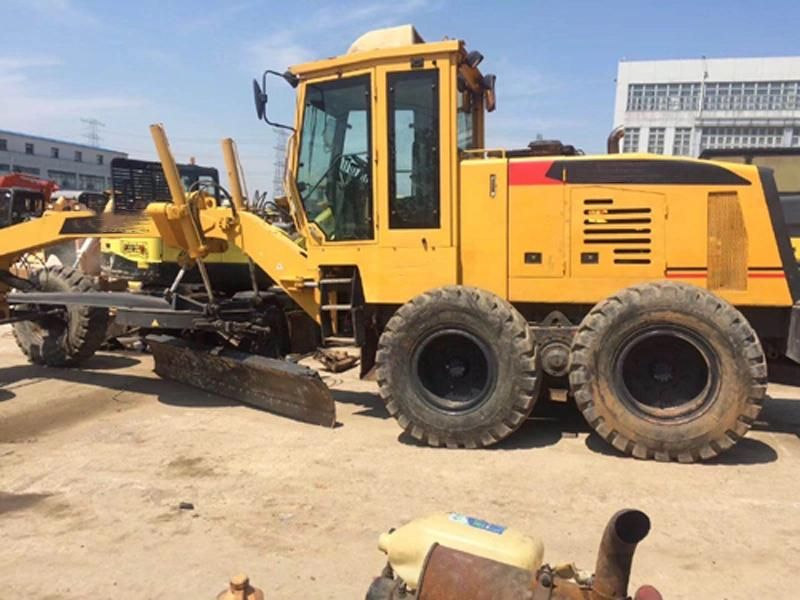

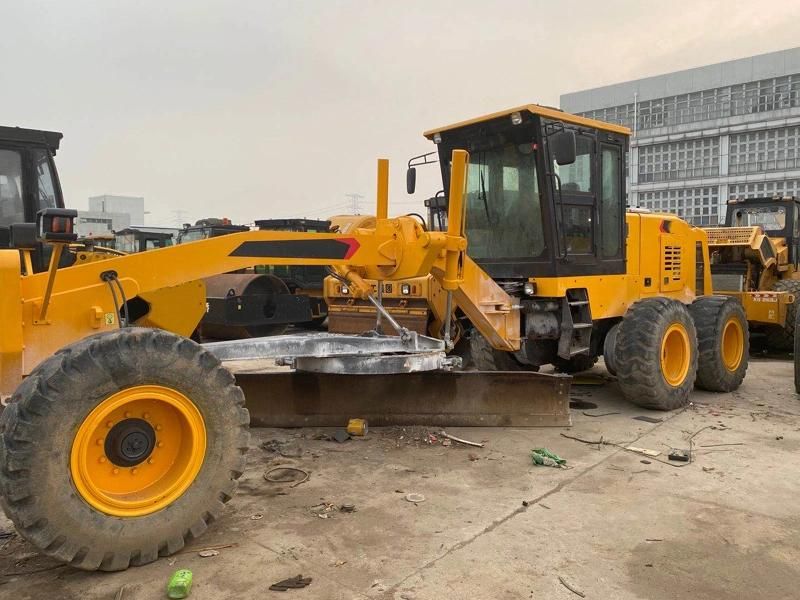

Real machinery photo show:

Model: GR180
Condition: used, but still running well.

Gr180 Used Earth Work Motor Grader Construction and Engineering Use
Gr180 Used Earth Work Motor Grader Construction and Engineering Use
Gr180 Used Earth Work Motor Grader Construction and Engineering Use
Gr180 Used Earth Work Motor Grader Construction and Engineering Use
Gr180 Used Earth Work Motor Grader Construction and Engineering Use
Gr180 Used Earth Work Motor Grader Construction and Engineering Use
Gr180 Used Earth Work Motor Grader Construction and Engineering Use





Specification details:
Engine modelCTA8.3 or SC 8D190G2B1
Engine power140kw/2200rpm
Vehicle working weight15400kg
Outside dimension8900*2625*3470mm
Max. Traction force84KN
Shovel blade length3965mm
Shovel blade height (chord length):610mm
Shovel blade max. Tilting angle90°
Shovel blade max. Rotate angle360°
Shovel blade cutting angle adjusting range28-70°
Shovel blade max. Lifting height450mm
Shovel blade max. Shoveling depth500mm
Shovel blade length x chord height3965*610mm
Tyre pressure260kPa
Max. Grade ability30%
Front tyre max. Turning/tilting angle50°/17°
vehicle frame max. (hinge point) turning angle27°
Front axle max. Swing angle15°
Balancing tank mas. Swing angle15°
Min. Turning radius7300mm
Forward speed1st 5km/h, 2nd, 8km/h, 3rd 11km/h, 4th 19km/h, 5th 23km/h, 6th 38km/h
Reverse speed1st 5km/h, 2nd 11km/h, 3rd 23km/h
Hydraulic system working pressure18MPa
