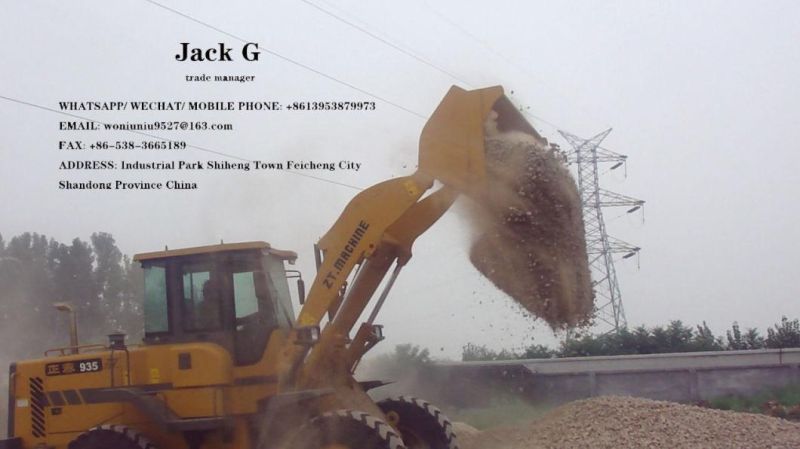

• Model NO.：ZT935
• Type：Small Loader
• Standard Bucket：1.7cbm
• Max.Dump Height(mm)：3150mm
• Operating Weight：9600kg
• Max.Dump Reach(mm)：1150mm
• Tyre Specification：17.5-25
• Min Turning Radius (mm)：4800mm
• Wheel Base(mm)：2580mm
• Tread(mm)：1870mm
• Transport Package：Nude
• Specification：7000× 2430 × 3060mm
• Trademark：ZTMACHINE
• Origin：China
• HS Code：842951000
• Production Capacity：30

Basic Info.

Model NO. ZT935 Type Small Loader Standard Bucket 1.7cbm Max.Dump Height(mm) 3150mm Operating Weight 9600kg Max.Dump Reach(mm) 1150mm Tyre Specification 17.5-25 Min Turning Radius (mm) 4800mm Wheel Base(mm) 2580mm Tread(mm) 1870mm Transport Package Nude Specification 7000× 2430 × 3060mm Trademark ZTMACHINE Origin China HS Code 842951000 Production Capacity 30

Product Description





Description	Specification
Rated load(kg)	3000
standard bucket capacity(m³)	1.7
operating weight(kg)	9600
Max.breakout force(kN)	110
Max.dump height(MM)	3150
Max.dump reach(MM)	1150
Discharging Angle(°)	45
Max.grade ability(°)	30
Automatic leveling ability	Yes
Lifting time(s)	≤5.6
Total cycle time(lifting, dumping, lowering)(s)	≤10
steering angle(°)	35
Min turning radius(MM)	4800
Wheel base(MM)	2580
Tread(MM)	1870
Min.ground clearance(MM)	417
Overall dimensions (l×w×h)mm(MM)	7000×2430×3060
travel speed(km/h)
Forward gear    I	0~6.8
II	0~12
III	0~23
IV	0~35
reverse gear    I	0~8.5
II	0~27
Engine Model	Cummins 6BT5.9-C125
Type	In line, water cooled, four stroke, dir.inject
Rated power(kW)	92
Rated speed(rpm)	2200
acrot orque(N·m)	480
Brake system
Service brake	Gas-liquid caliper disc brake
Parking brake	Control with brake manual gas

Packing & Delivery

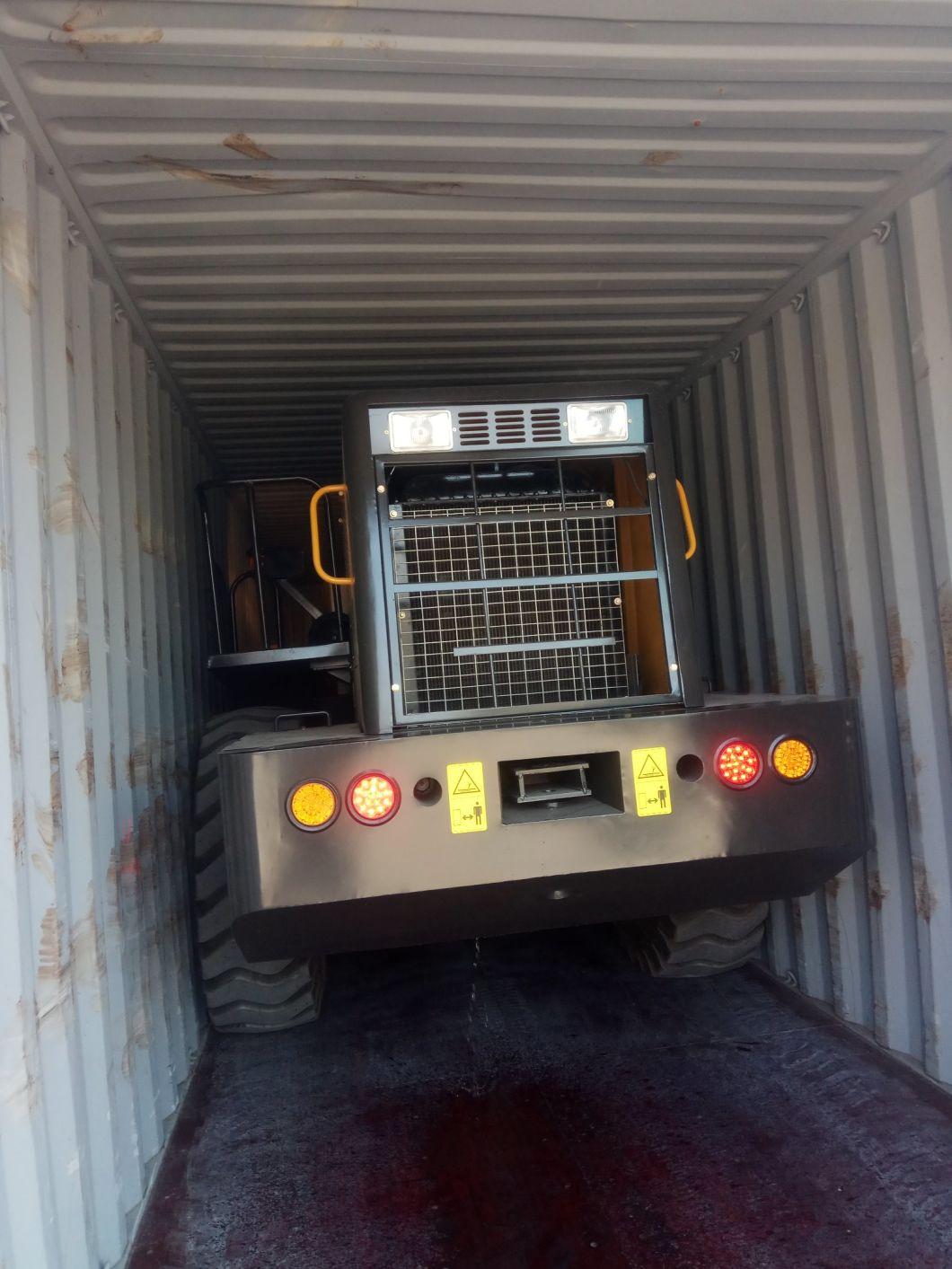

Container 40HC 1 units can be installed

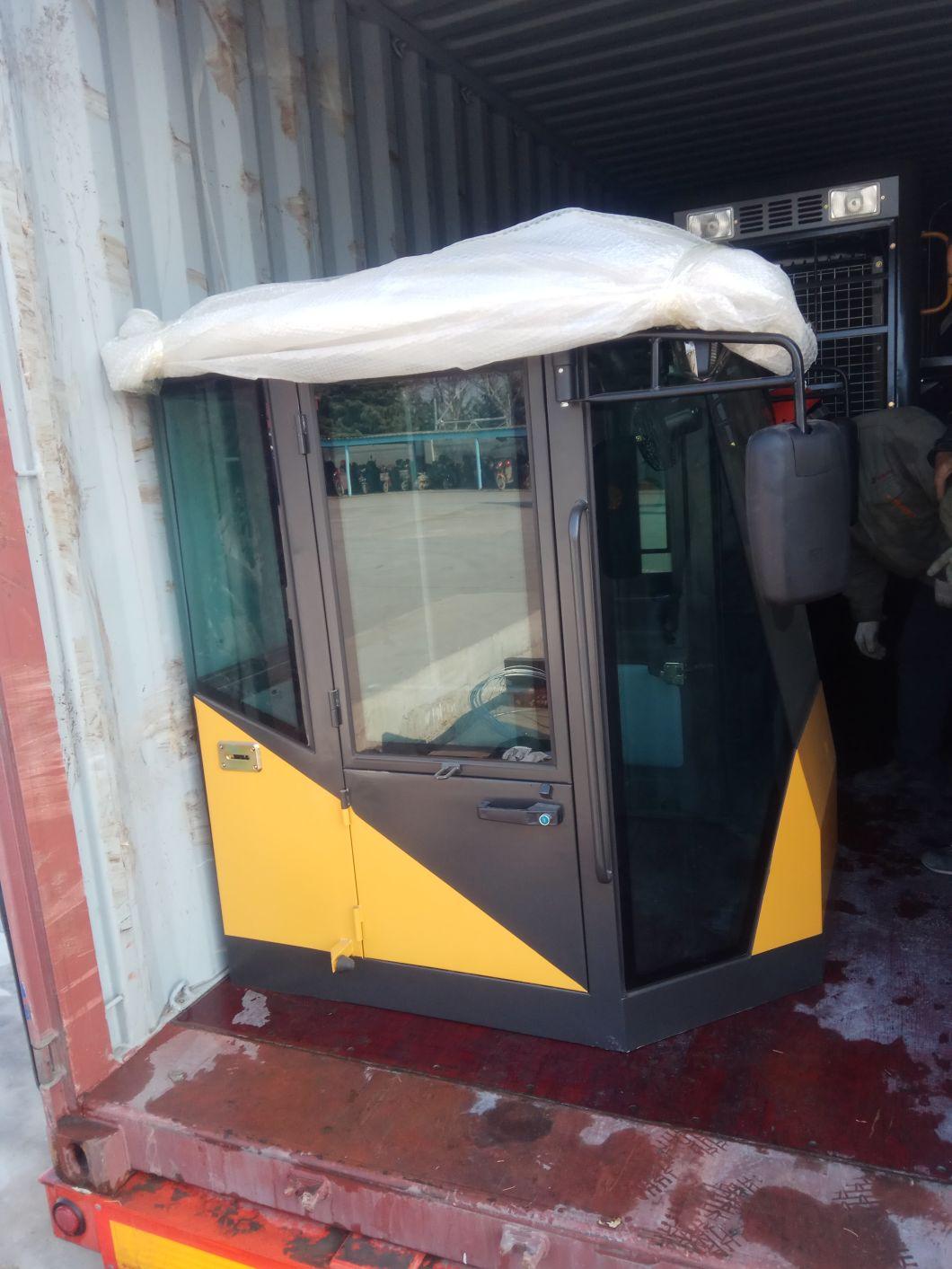

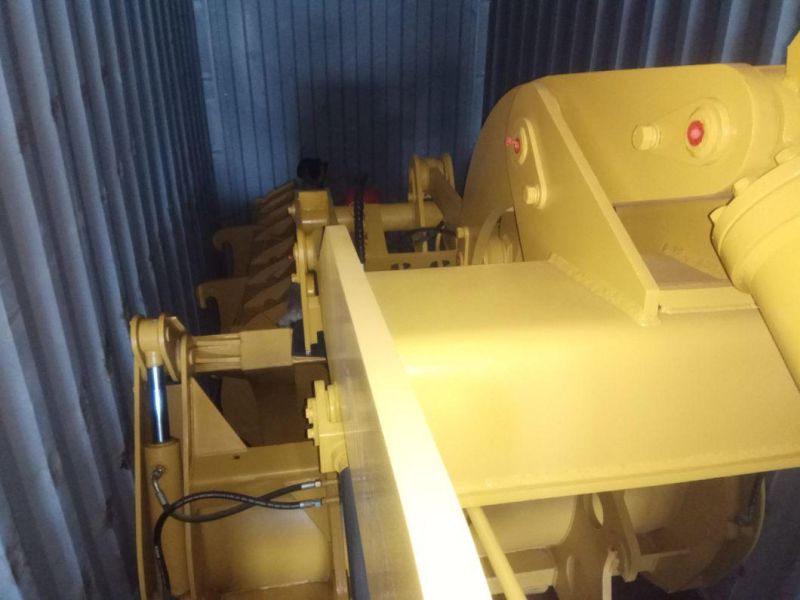

1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.2. spare parts or wearing parts will be packed in wooden box or paper carton. 3. Standard shipping method is by container.
