• Model NO.：XE60
• Certification：CE
• Condition：New
• Operation Weight：5960kg
• Max. Digging Height：5630mm
• Max. Digging Depth：3830mm
• Max. Digging Reach：6130mm
• Transport Package：Nude Package
• Specification：8165*3016*3485mm
• Trademark：Evangel
• Origin：China
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. XE60 Certification CE Condition New Operation Weight 5960kg Max. Digging Height 5630mm Max. Digging Depth 3830mm Max. Digging Reach 6130mm Transport Package Nude Package Specification 8165*3016*3485mm Trademark Evangel Origin China Production Capacity 100 Sets/Month

Product Description

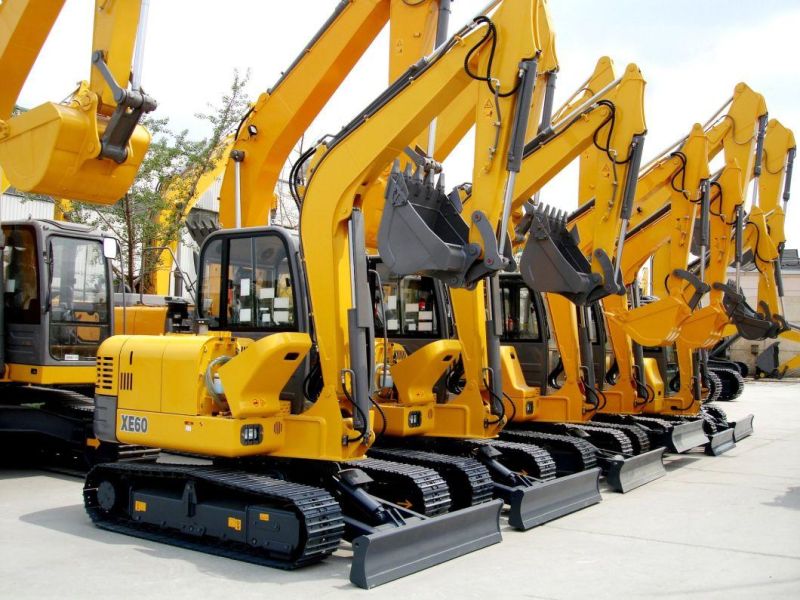

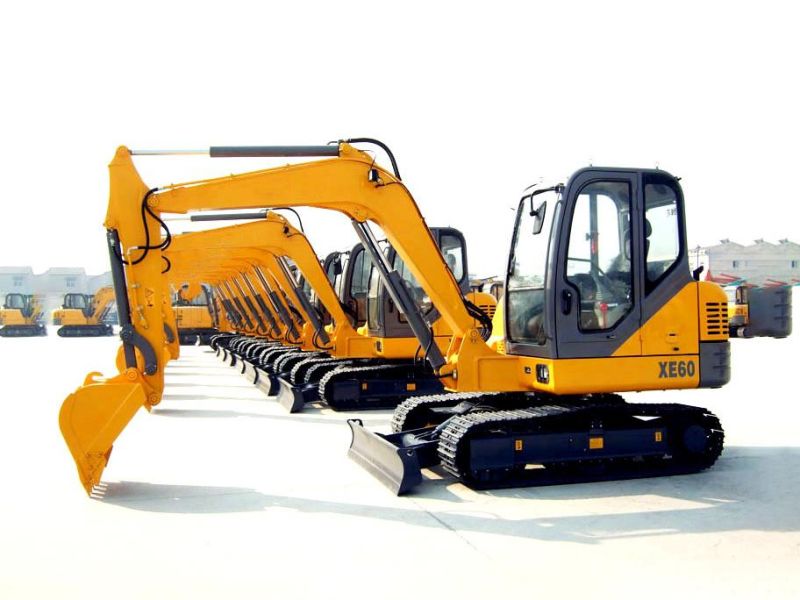

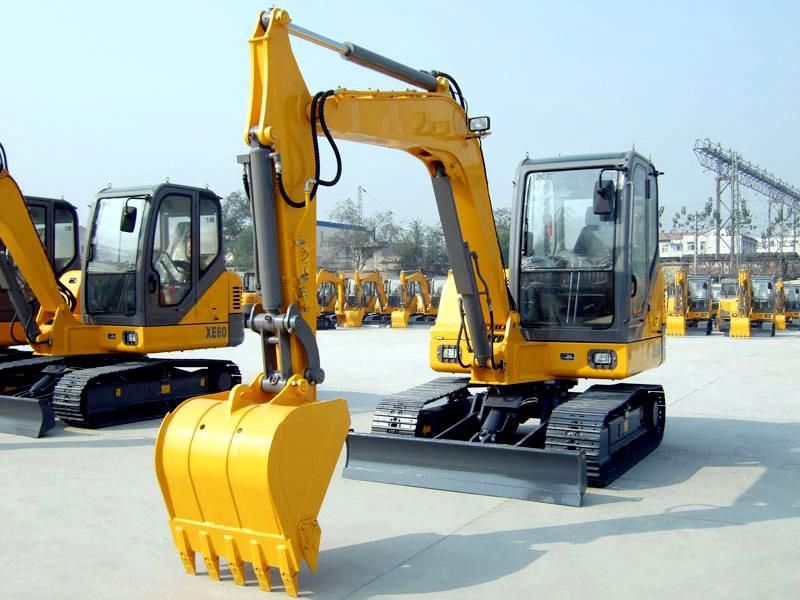

                                  Small Crawler Extractor XE60 Crawler Extractor
1. More energy saving and environmental protection
 It adopts a new type of environmentally friendly Yanmar engine, low-speed torque, low fuel consumption, high operating efficiency, reliable and durable. The layout of the air intake pipeline is optimized to reduce air intake resistance, increase air intake, and improve fuel utilization.
2. Using cross-stage large displacement constant power variable pump, high volumetric efficiency. By reasonably adjusting the pump power and adopting a new generation of lower pressure loss main valve, the whole machine has lower energy consumption, faster response speed and more precise control.
2. More reliable and durable
Re-optimize the design of boom and stick, and further strengthen the key parts. The bucket teeth are installed with horizontal pins and a new pin shaft fixing method is adopted to effectively prevent the gear sleeve from falling off.
The tailstock part of the slewing platform has been strengthened, and the box structure is adopted to increase the overall rigidity to prevent the tailstock from deforming after long hours of work. At the same time, the strength of the outriggers of the engine is increased to meet the vibration requirements of the engine under severe working conditions during heavy load operation.
The new X-frame chassis system is adopted, and the inside of the lower frame is reinforced with ribs to form a large-section box, which has good circumferential load-carrying performance, and can apply the stress conducted by the upper vehicle to the track beam more evenly, reducing the number of tracks The local stress concentration phenomenon of the beam.
The new type of crawler adopts international standards, which is more reliable. It is equipped with double-row rail clamps to ensure that the crawler is firm and stable under severe working conditions.

Project	Unit	Parameter
Operation weight	(Kg)	5960
Bucket capacity	(m³)	0.09-0.23
Output power	(kw/rpm)	39.8/2200
Bucket digging force	(kN)	48.3
Max. digging height	(mm)	5630
Max. digging depth	(mm)	3830
Max. digging reach	(mm)	6130

--------------------------------------------------------------------------
