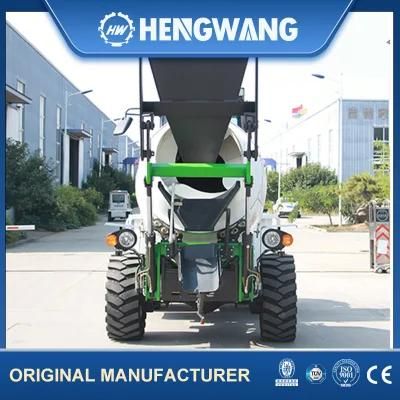

• Model NO.：1.2cbm
• Productivity：10cbm,H
• Feeding Height：2500mm
• Vibrating Amplitude：0.8mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：White and Green
• Actual Mixing Capacity：1.2cbm
• Rotary Drum Capacity：1.4cbm
• Slump of Concrete：70-260mm
• Tank Capacity：540L
• Reducer Ratio：01:10
• Rated Power：58kw
• Max Torque：255,1500-1800 380,1500-1800 N.M,R,Min
• Max Running Speed：24km,H
• Min Steering Radius：5000mm
• Climbing Capacity：26
• Tire：23.5,70-16
• Driving Way：4×4
• Weight：4580kg
• Maximum Load Capacity：2800kg
• Whole Machinery Weight：7380kg
• Transport Package：Nude Package
• Specification：6100*1850*3000mm
• Trademark：HW
• Origin：China
• HS Code：8705400000
• Production Capacity：300sets,Month

The main performance parameters of the chassis and the engine

Engine type / displacement

L

CF4B68G-Z-13B2/CF4C100T-Z-13B2

model

Straight injection type four-stroke water-cooled supercharged diesel engine

Rated power

kw/r/min

58KW/2400

Max torque

N.m/r/min

255/1500-1800 380/1500-1800

Max running speed

km/h

24

Min steering radius

mm

5000

Climbing capacity

%

26

Tire

23.5/70-16

Driving way

4×4

Weight

kg

4580

Maximum load capacity

kg

2800

Whole machinery weight

kg

7380

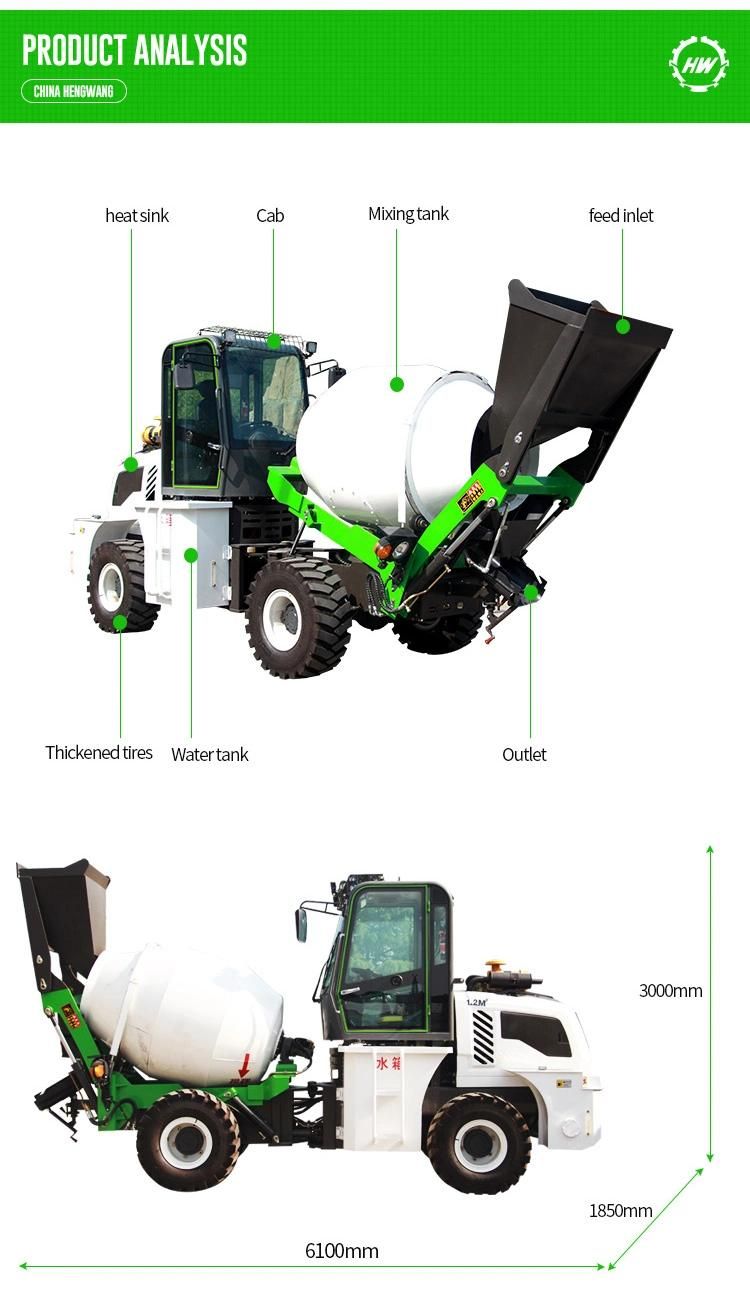

Overall size(L*W*H)

mm

6100*1850*3000
