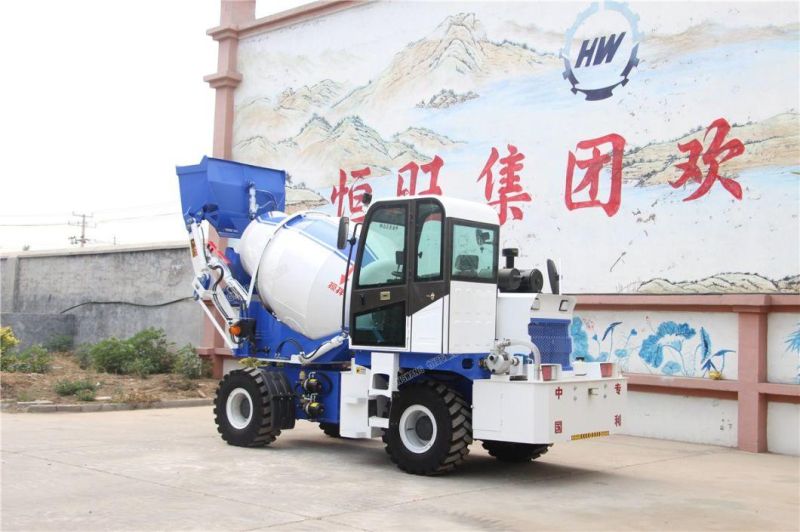

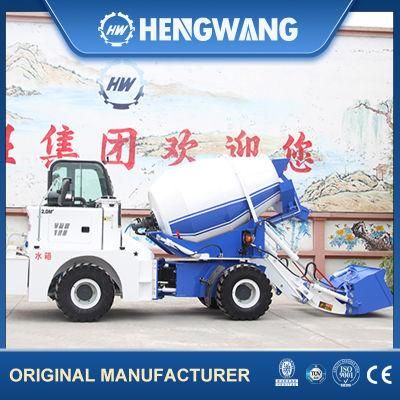

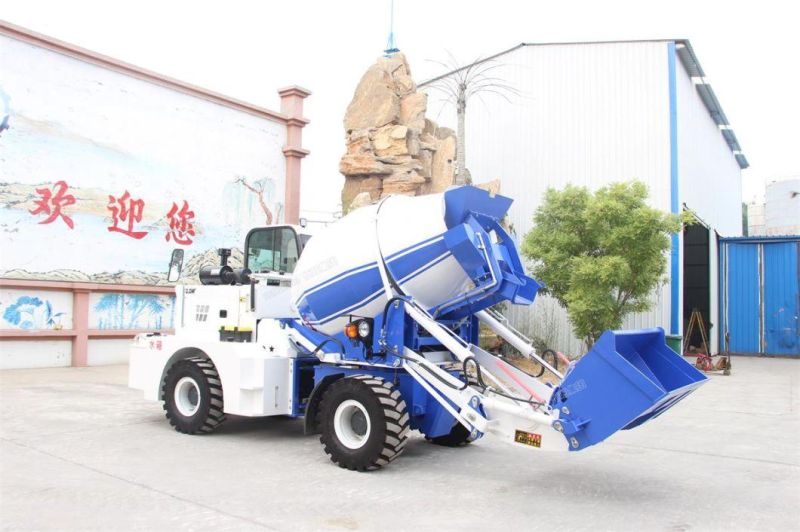

2m3 Actual Stirring Capacity Ready Mix Rated Power 76kw Concrete Mixer Truck Price
JINING HENGWANG CONSTRUCTION MACHINERY CO., LTD.- After-sales Service:Provide
- Warranty:One Year
- Type:Concrete Mixing Truck
- Shotcrete Type:Wet
- Machining Process:Hydraulic
- Structure:Spiral Type
Base Info
- Model NO.:2m3
- Productivity:16cbm,H
- Feeding Height:2500mm
- Vibrating Amplitude:0.8mm
- Certification:ISO9001: 2000, CE
- Condition:New
- Color:White and Blue
- Actual Mixing Capacity:2.0cbm
- Rotary Drum Capacity:2.3cbm
- Slump of Concrete:70-260mm
- Tank Capacity:540L
- Reducer Ratio:01:10
- Rated Power:76kw
- Max Torque:255,1500-1800 380,1500-1800 N.M,R,Min
- Max Running Speed:24km,H
- Min Steering Radius:4250mm
- Climbing Capacity:26
- Tire:23.5,70-16
- Driving Way:4*4
- Weight:4880kg
- Maximum Load Capacity:3000kg
- Whole Machinery Weight:6480kg
- Transport Package:Nude Package
- Specification:6700*2300*2900
- Trademark:HW
- Origin:China
- HS Code:8705400000
- Production Capacity:300sets,Month
Description
The main performance parameters of the chassis and the main performance parameters of the engine
Engine type / displacement
L
CF4B68G-Z-13B2/CF4C100T-Z-13B2
model
Straight injection type four-stroke water-cooled supercharged diesel engine
Rated power
kw/r/min
76KW/2400
Max torque
N.m/r/min
255/1500-1800 380/1500-1800
Max running speed
km/h
24
Min steering radius
mm
4250
Climbing capacity
%
26
Tire
23.5/70-16
Driving way
4×4
Weight
kg
4880
Maximum load capacity
kg
3000
Whole machinery weight
kg
6480
Overall size(L*W*H)
mm
6700*2300*2900
The wheelbase
mm
2250
Bucket capacity
m³
0.45/0.55
advantages
The concrete output is 2.0m3 per Batch, 12 m3 per Hour. The wide cabin and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance
details

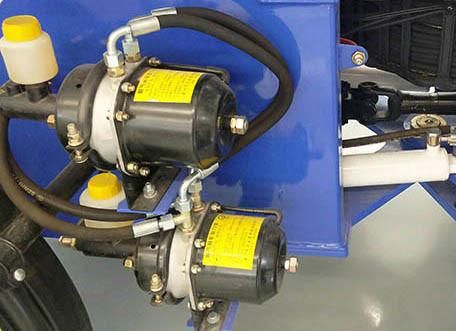

double break air brake system

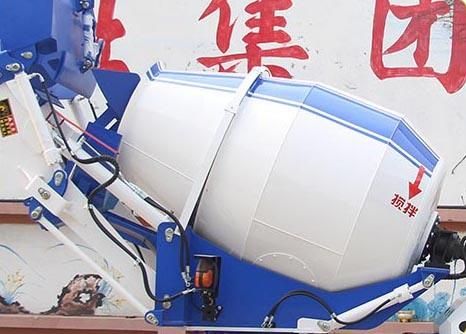

automatic, stepless speed change,air brake, smooth parkingtank design
both wet and dry materials can be stirred, easy to stir, with automatic cleaning

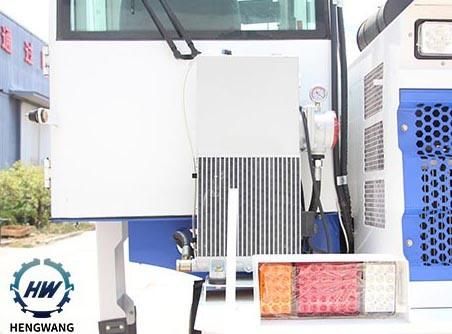

auxiliary radiator
when the temperature of the hydraulic oil exceeds 55°C, the auxiliary fan heater will automatically turn on.

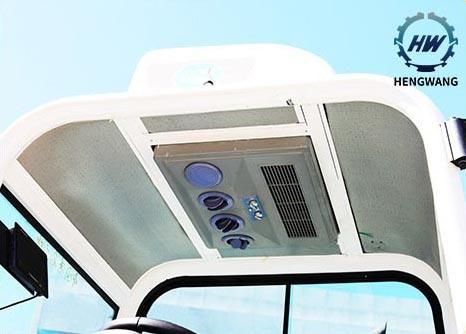

cab design
the air conditioneris installed on the top of the cab,so there is no fear of outdoor temperature and the operation time is long

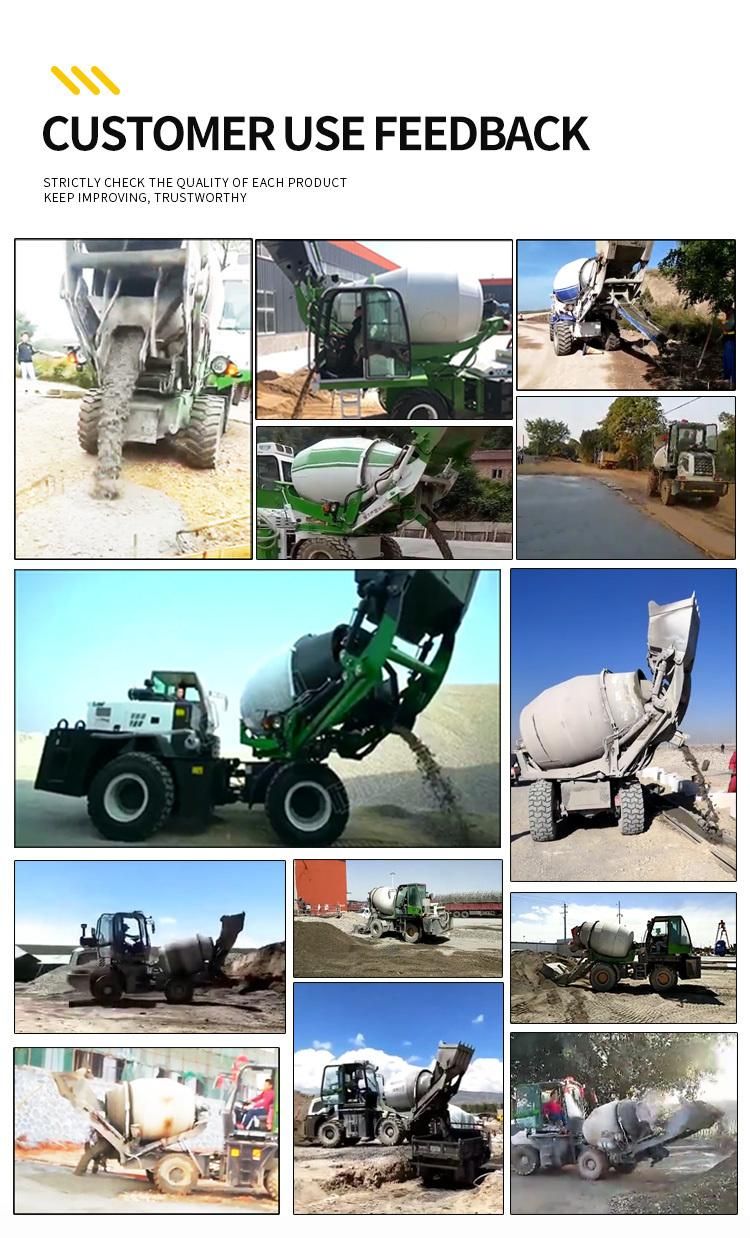

Construction Site
Widely used in sand and ash mixing for home improvement bricks, pavement paving sand ash mixing, garden engineering sand ash mixing, floor concrete mixing, small construction site masonry mortar, plastering mortar mixing, power communication and other field operations sand and ash mixing, seedling fertilizer Stirring, home brewing koji stirring and other scenes. Small mixers are widely used in municipal engineering, small water conservancy projects, rural house construction, house decoration, power communication engineering, harsh mountain environment, leisure agriculture, loosening soil, weeding, etc.

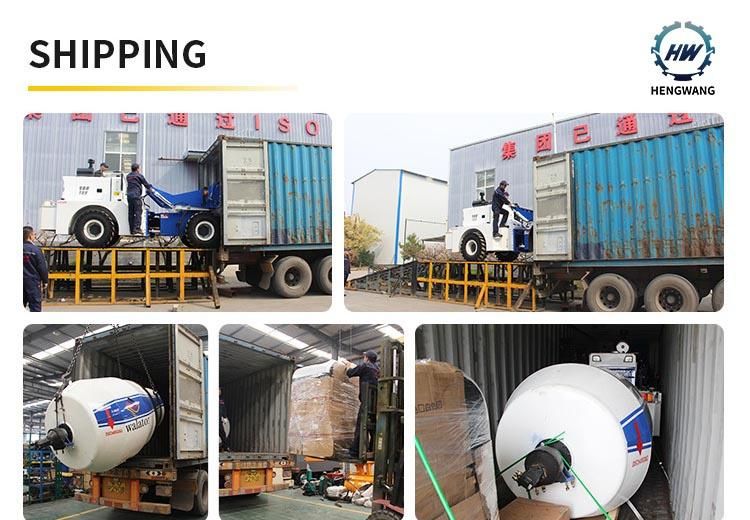

Packing:
2 units can be loaded into 40HQ Container
This is the picture of concrete delivery. The delivery is usually by sea. We have cooperation with many sea freight. If you have any requirements during the delivery process, please let us know in advance and contact us.

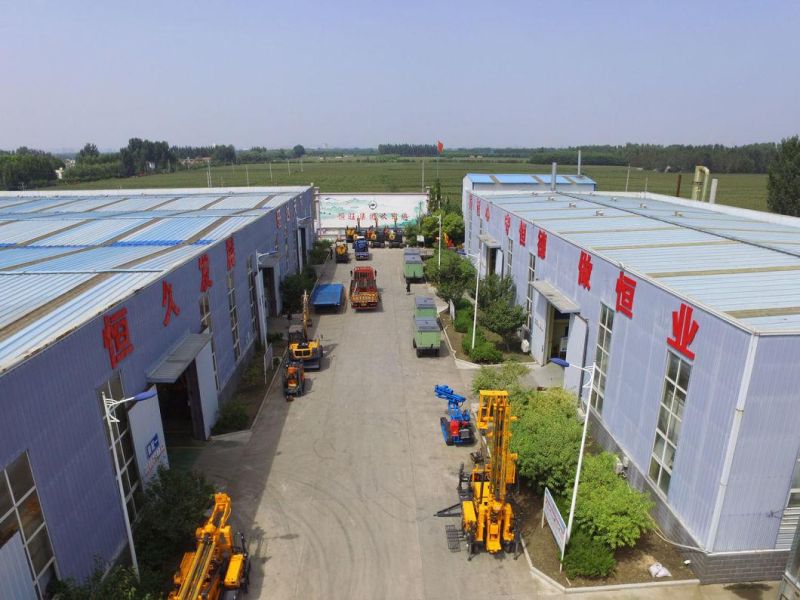

Company Profile
Jining Hengwang Mining Machinery Co., Ltd. which belong to Shandong Hengwang Group Co., Ltd., is located in Shiqiao Industrial Park, Jining City, Shandong Province, China. Our Group occupies an area of about 40,000 square meters.It is a comprehensive enterprise integrating piling and drilling rig design, manufacture and installation.
Certification
Exhibition:
FAQ
1) ,What is your terms of payment?
TIT 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
2), What is your terms of delivery?
EXW, FOB, CFR, CIF.
3),How about your delivery time?
Generally, it will take 7-10 working days after receiving you advance payment The specific
delivery time depends on the items and the quantity of your order
4),What is the warranty of our machine?
Our main machine enjoys a?1 year warranty(except for the hammer). during this time all
accessories broken can be changed for a?new one And we provide videos for machine install and
operation.
5), What is your terms of packing?
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
6),Do you test all your goods before delivery?
Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
7),Do you Preferred provide wear parts for transacted clients?
Yes, we have records for your clients, and will prefer providing accessories to clients.
8)How do you make our business long-term and good relationship?
1 We keep good quality and competitive price to ensure our customers benefits;
2 We respect every customer as our friend and we sincerely do business and make friends with
them, no matter where they come from.
9), Do you have any certificates for your machine?
All of our products coming with the certificates of CE, S09001.
