• Model NO.：QD550
• Load and Unload Mode：Front Discharge
• Walking Mode：Crawler
• Type：Track Skid Steer Loader
• Transport Package：Wooden Container
• Specification：2114 mm*1100 mm*1505 mm
• Trademark：QINDING
• Origin：China
• HS Code：8429510000
• Production Capacity：800 Sets Per Year

Engine

Engine model

Kubota engine diesel

No. of cylinders

4 cylinder

Net Power

50hp

Dimensions

Operating height

3242 mm

Height to bucket hinge pin

2478 mm

Height to top

1505 mm

Overall length with GP bucket

2769 mm

Overall length without bucket

2114 mm

Wheelbase

1170 mm

Overall width

1100 mm

Mini ground clearance

150 mm

Angle of departure

22°

Rated loading capacity

381 kg

Operating Weight    (SAE)

1590kg

Hydraulic system

Working Pump Type

Engine driven,    Gear type

Pump Capacity

59L/min)@2600 RPM

System Relief    @ Quick Couplers

210 Bar

Hydraulic oil

62L

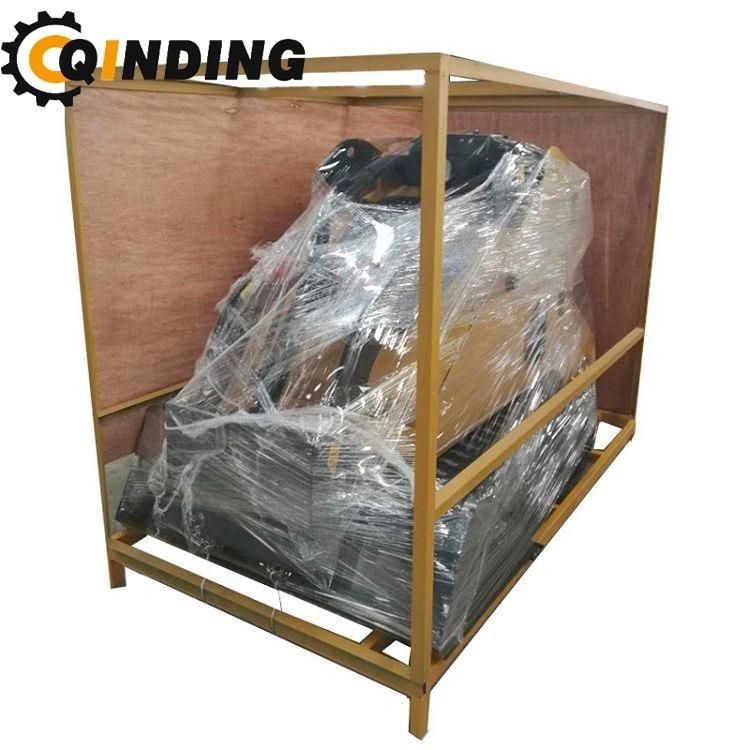

Package
