• Model NO.：SWTH3570H
• Type：Small Loader
• Max.Lifting Height：7 M
• Dead Weight：9000 Kg
• Traveling Speed：30 Km,H
• Gradeability：30%
• Brand：Sinoway
• Engine Make：Cummins
• Warranty：12 Months
• Model：Swth3570h
• Transport Package：Nude
• Specification：3.5 ton payload
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：100 PCS , Year

Basic Info.

Model NO. SWTH3570H Type Small Loader Max.Lifting Height 7 M Dead Weight 9000 Kg Traveling Speed 30 Km/H Gradeability 30% Brand Sinoway Engine Make Cummins Warranty 12 Months Model Swth3570h Transport Package Nude Specification 3.5 ton payload Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 100 PCS / Year

Product Description

Product Description

1, Equipped with four-wheeldrive and rigid suspension;

2, Hydraulic mechnical drive, hydraulic power steeringand hydraulic brake, rear-wheel steering;

3, The two-stage quadrilateral telescopic boom serves as the working unit. It is equipped with a fork or a boom;

4, The lift truckis applicable to the unstuffing and casing of pellatized goods in containers,as well as handling, stacking and short-distance transportation of a variety of packaged goods;

5, Suitable formany different working environments, is ideal equipment for loading andunloading, lifting, and transportation in mining, factory, architecture,building material, dock, municipal engineering industries;

6, A range of options including such accessories as the bucket, lifting hook, and boom, etc.are available to customers;

7, Offers better performance than a general fork truck in terms of the handling height andcross-country ability;

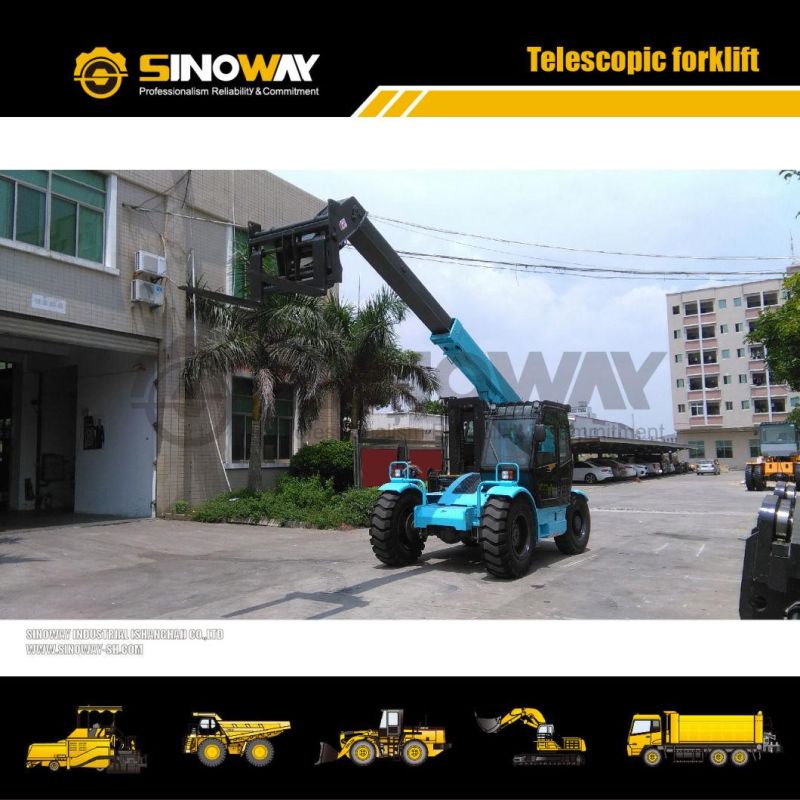

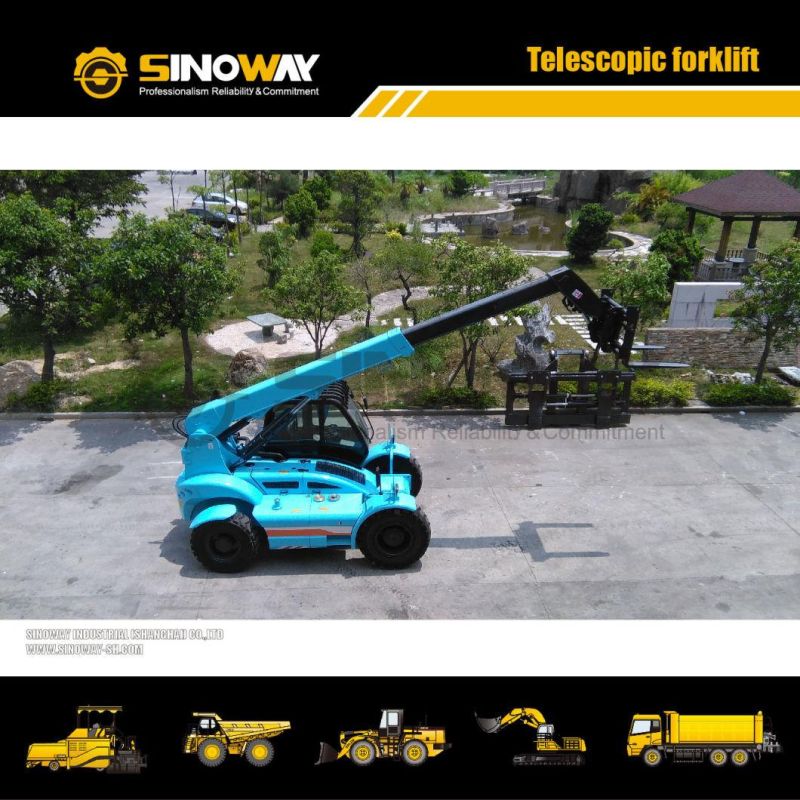

Product Show



Specifications

Main Technical Specification

Engine make	Cummins
Rated power	60kw
Rated speed	2000rpm
Displacement	3.9L
Rated load lifting capacity	3500kg
Load center distance (between the front edge of tire and the load center)	3000mm
Max. Lifting height of main hook (between the main hook and the ground)	7000mm
Max. horizontal reach of main hook (between the front edge of tire and the main hook)	2570mm
Max. travel speed	30km/h
Min. ground clearance	350mm
Min. turning radius	7250mm
Grade ability	30%
Tipping angle (upward / downward)	15/25°
Wheel tread	1900mm
Wheel base	2520mm
Dead weight	9000kg
Overall length	5400mm
Overall width	2280mm
Overall height	2700mm
Inner width of the cab	740mm
Length of the boom	3250mm
Front tire	16/70-24
Rear tire	10.00-20
