• Vibrating Amplitude：2.6mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：White
• Transport Package：in Nude
• Specification：12500*2500*4000mm
• Trademark：SANY
• Origin：Hunan, China
• HS Code：9001100001
• Production Capacity：5000PCS,Year

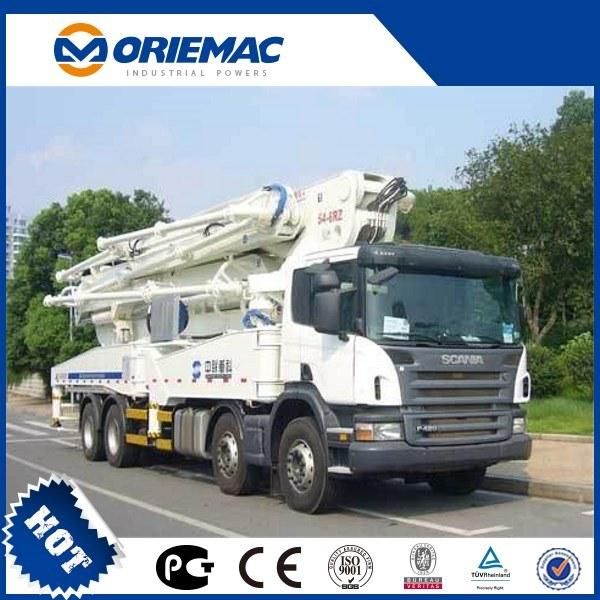

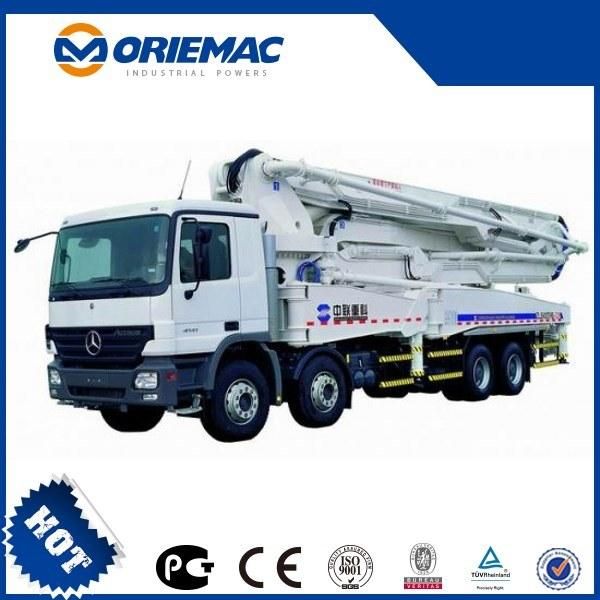

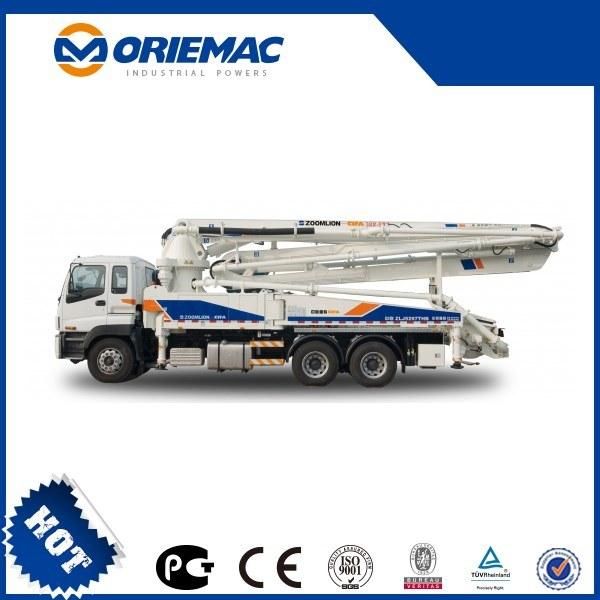

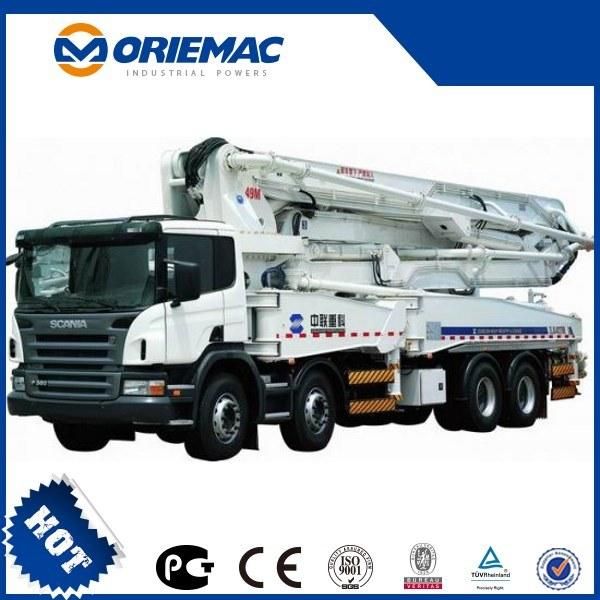

ModelUnit43X-5RZPump UnitMax. Theor. output                       m³/h140/90Rated working pressure                      MPa35Pumping frequency                             min-127/17Hopper    capacity                    L550Filling height                                  mm1540Hydraulic system type opened loopDistribution valve S valveOil cylinder dia.×stroke                   mmφ130×2100Concrete cylinder    dia.×stroke            mmφ230×2100Hydraulic oil cooling Wind coolingRecommended concrete slump                   cm12~23Max. aggregate dimension                    mm40Boom    SectionStructure type 43X-5RZPlacing depth                               m43Max. horizontal distance                     m39Max. placing depth                          m30.46Slewing angle ±270°Boom number 5The length of boom section                       mm8350/7250/7050/7930/8420Sections folding angle 90°/180°/180°/240°/200°Pipe diameter                               mm125End hose lengthmm3000Min. height of opening placing boom       mm9100Outriggers span     (front×rear×side)  mm8220×8800×8900Product Pictures
