• Model NO.：SD8N
• Condition：New
• Color：Yellow
• Model：SD8n
• Operating Weight：37300kg
• Engine：Cummin
• Track Shoes：Crawler
• Pump Type：Gear Pump
• Blade Type：Straight Tilting Blade
• Dozing Capacity (M3)：8.1
• Ground Pressure(Kpa)：77.9
• Track Gauge(mm)   ：1980
• Gradient：30,25 Degree
• Min. Ground Clearance (mm)：394
• Blade Width (mm)   ：3550
• Max. Digging Depth (mm)：498
• Overall Dimensions (mm)：7930*3940*3549
• Engine Model：Nt855-C360s10
• Transport Package：Nude Packing
• Specification：7930*3940*3549
• Trademark：HBXG
• Origin：China
• HS Code：8429119000
• Production Capacity：1000,Per Month

Basic Info.

Model NO. SD8N Condition New Color Yellow Model SD8n Operating Weight 37300kg Engine Cummin Track Shoes Crawler Pump Type Gear Pump Blade Type Straight Tilting Blade Dozing Capacity (M3) 8.1 Ground Pressure(Kpa) 77.9 Track Gauge(mm)    1980 Gradient 30/25 Degree Min. Ground Clearance (mm) 394 Blade Width (mm)    3550 Max. Digging Depth (mm) 498 Overall Dimensions (mm) 7930*3940*3549 Engine Model Nt855-C360s10 Transport Package Nude Packing Specification 7930*3940*3549 Trademark HBXG Origin China HS Code 8429119000 Production Capacity 1000/Per Month

Product Description

Qingdao Chary Machinery CO., LTD
Contact Person: Claudia Wang


             HBXG 320HP SD8N Hydrostatic Bulldozer /Elevated Sprocket Bulldozer

Product description:








Model		SD8N
specifications
Dozer		Tilt
Operating weight(including ripper)	kg	37300
Ground pressure	kpa	94
Track gauge	mm	2083
Gradient	°	30/25
Min. ground clearance	mm	556
Dozer capacity	m3	11.24
Blade width	mm	3940
Max. digging depth	mm	582
Overall dimensions(including ripper)	mm	7930x3940x3549
Engine
Type		Cummin NT855-C360S10
Rated revelation	rpm	2100
Engine power	kw	257
Torque storage coefficient	%	20

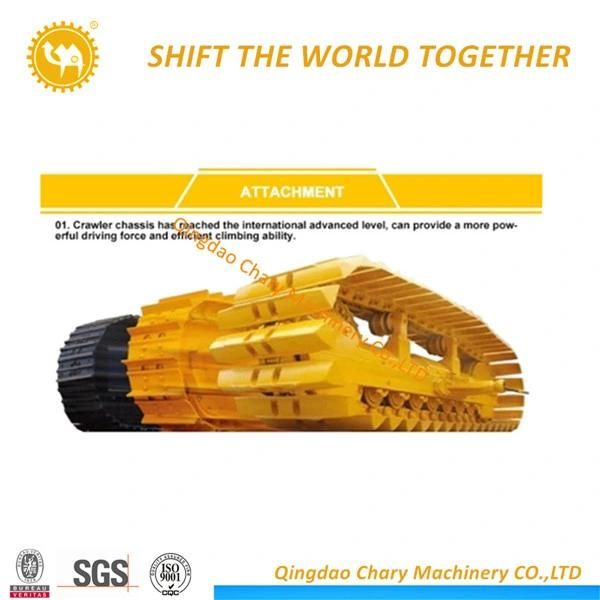

Undercarriage system
Type		The track is triangle shape.The sprocket is elevated elastic suspended.
Number of track rollers(each side)		8
Pitch	mm	216
Width of shoe	mm	560
Gear
Forward I/II/III	km/h	3.5/6.2/10.8
Backward I/II/III	km/h	4.7/8.1/13.9
Implement hydraulic system
Max. system pressure	Mpa	20
Pump type		Gears oil pump
System output	L/min	220
Driving system
Torque converter		Torque converter is power separating hydraulic-mechanic type
Transmission		Planetary, power shift transmission with three speeds forward and three speeds reverse,speed and direction can be quickly shifted.
Steering clutch		The steering clutch is hydraulic pressed, non-constant engaged clutch
Final drive		The final drive is two-stage planetary reduction gear mechanism, splash lubrication

MULTIPLE SHIPPING WAYS TO SAVE SHIPPING FREIGHT FOR YOU




WHY CHOOSE US?


Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.

Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.


OUR SERVICE

(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with SINOTRUK, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.

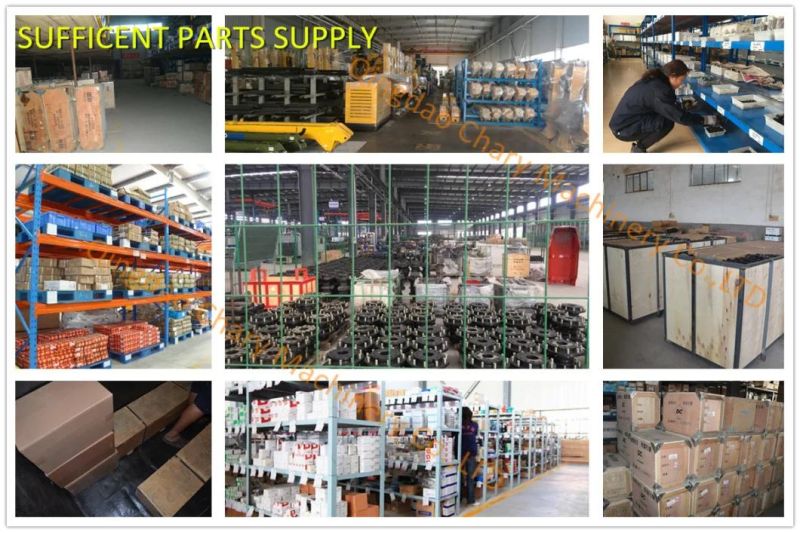

(6) Spare Parts Supply:
We have our own spear parts departments,have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.



FAQ

1, How to purchase the trailer truck from your company?
You can choose the model from our website, also you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After confirming the model and price, we can sign the contract.

2,How to ensure product quality?
Firstly,we passed the international quality system certification. Secondly, Made in China Group has conducted field certification for our factory. Finally,You can entrust third party individuals or organizations to inspect our products before delivery.

3, How to visit your factory?
After you arriving at China, you can fly to Qingdao airport. Qingdao airport is located in Qingdao City, Shandong Province. Our driver will meet you at Qingdao airport and take you to our factory by car.

If you are interested in any of construction machinery for sale,please feel free to contact me. Also, welcome to China and visit our construction machinery factory for construction machinery price or to discuss more details.
