New Construction Equipment Small Front Tractor Loader with Backhoe
Shandong Honest Machinery Co., Ltd.- Certification:TUV, UL, ISO, CE
- Condition:New
- Rated Load:1-3t
- Transmission:Hydraulic
- Load and Unload Mode:Front Discharge
- Walking Mode:Wheeled
Base Info
- Model NO.:M910
- Type:Small Loader
- Name:Wheel Loader Made in China
- Engine:Perkins,Yanmar,Chinese
- Rated Power:33HP
- Rated Loading Capacity:1000kg
- Weight:1850kg
- Max. Lifting Height:3030mm
- Min. Ground Clearance:268mm
- Max. Hydraulic Output:67L,Min

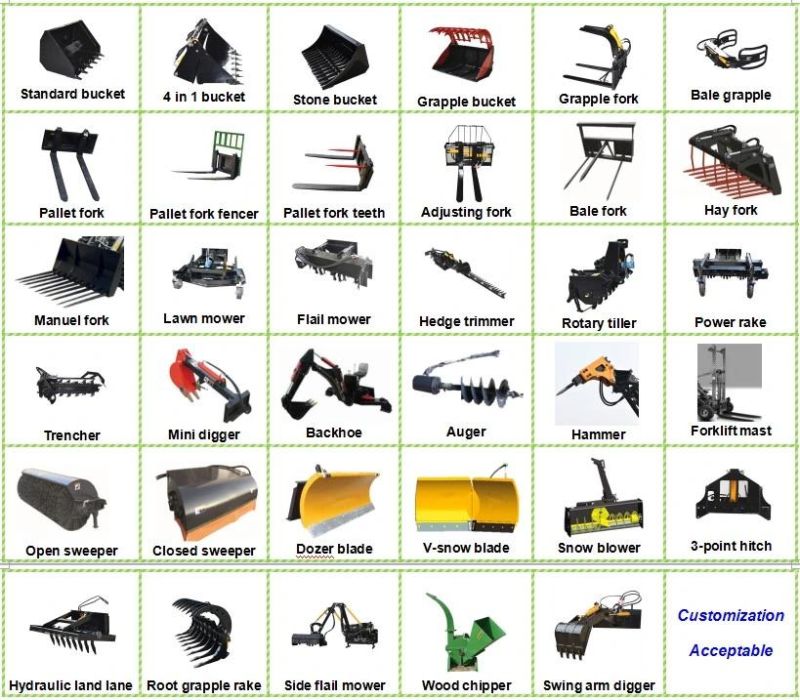

- Attachments Available:Pallet Fork, Bucket, Grapple, Hay Fork, Backhoe...
- Loader Usage:Farming, Construction, Gardening, Landscaping
- Transport Package:Container
- Specification:1200kg load capacity, 3000mm lifting height
- Trademark:STEEL CAMEL
- Origin:China
- HS Code:8429510000
- Production Capacity:500 Sets,Year
Description
Basic Info.
Model NO. M910 Type Small Loader Name Wheel Loader Made in China Engine Perkins/Yanmar/Chinese Rated Power 33HP Rated Loading Capacity 1000kg Weight 1850kg Max. Lifting Height 3030mm Min. Ground Clearance 268mm Max. Hydraulic Output 67L/Min Attachments Available Pallet Fork, Bucket, Grapple, Hay Fork, Backhoe... Loader Usage Farming, Construction, Gardening, Landscaping Transport Package Container Specification 1200kg load capacity, 3000mm lifting height Trademark STEEL CAMEL Origin China HS Code 8429510000 Production Capacity 500 Sets/YearProduct Description
new construction equipment small front tractor loader with backhoeGENERAL INTRODUCTION:
STEEL CAMEL M910 small tractor loader can be found working in various fields, like farming, gardenning, landscaping, animal house, construction, bee keeping, minicipal work etc. There are many reasons for its popular:
1.Its compact design enable it can work in some limited working site which other normal loaders can not come through
2.The fully hydrostatic driving system makes the driving smooth and easily controlled.
3.The telescopic boom increase the liting height into the level which many other loaders can not achieve
4.Its independent working and driving system offers great convenient to some hydraulic attachments
5.Its front and rear hydraulic output, quick coupling and 3 point hitch, together with hundreds of different attachments can finish almost all the work needs.
6.The flexible articulation offers fantastic motility in rough terrain.
TECHNICAL DATA:
Model | STEEL CAMEL M910 mini loader |
Dimension (LxWxH) | 2690 X1240 X 2285mm |
Max. lifting height (boom extended) | 3030mm |
Max. lifting height (boom retracted) | 2512mm |
Max. dumping height | 2630mm |
Bucket capacity | 0.5cbm |
Max. loading capacity | 1200kg |
Min. turning radius | 2120mm |
Turning angle | 45 degree |
Min. ground clearance | 268mm |
Speed | 0-12 km/h single speed 0~8~16km/h two speed optional |
Weight | 1700 kg |
Standard tire | 26X12-12 |
Tire pressure | 2.8 bar |
Oil tank capacity | 45L |
Pressure | 190bar |
Working oil flow | 33.5L/minx2 |
Tracking oil flow | 78L/min |
Oil model(mineral oil) | L-HL46 |
Fuel tank capacity | 30L |
Battery | 60Ah, 12V |
Engine | Perkins 404D-15 |
Rated power | 24.5kw/33hp |

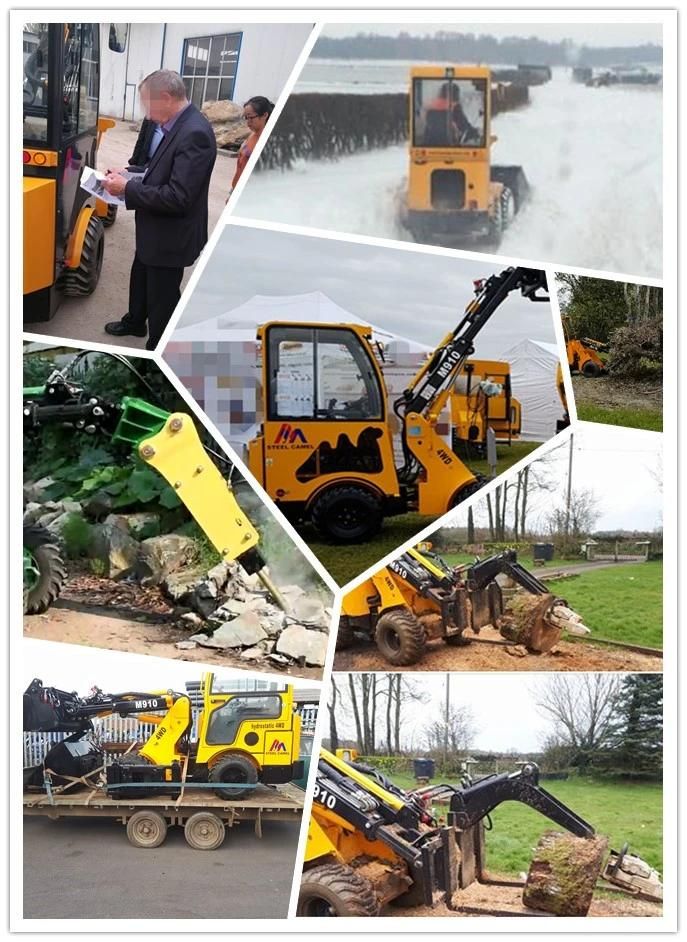

APPLICATION:
Loader+Tractor, one Multi-purpose helper for globle customers
Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.Rear part is tractor, with hydraulic output and 3-point hitch, for rotary tiller, trailer, etc.
STEEL CAMEL series wheel loaders are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.

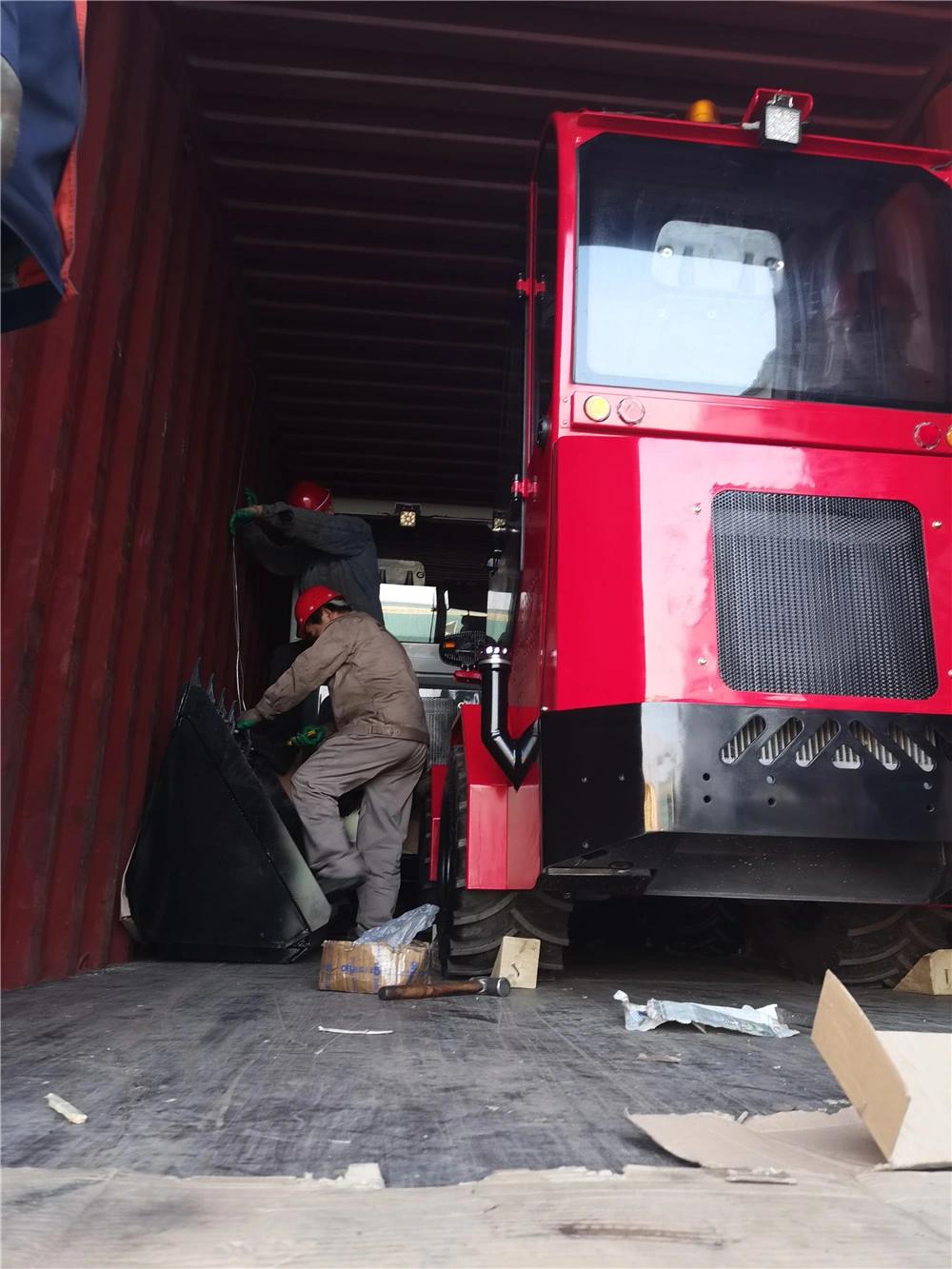

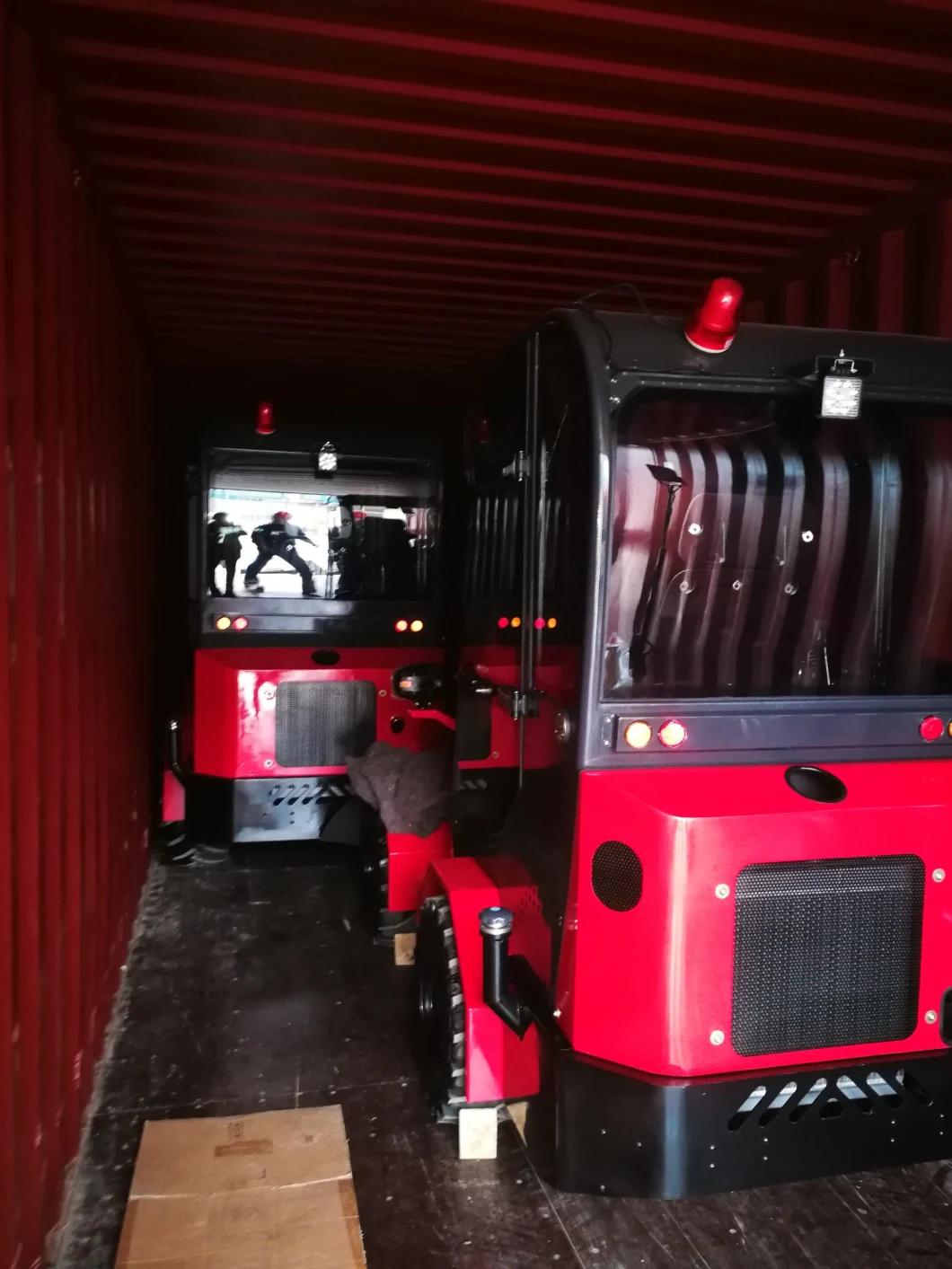

LOADING CONDITION:
STEEL CAMEL concern every needs of customer, we designed the loader to the biggest compact to save transporting cost.
Loading condition of M910 mini tractor loader as below:
3 sets/20' GP, 6 sets/40'GP
