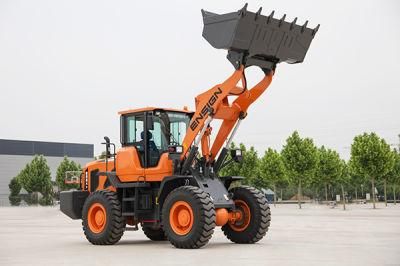

Hot Sale Low Price 5ton Ce Wheel Loader

Ensign Heavy Industries Co., Ltd.
  • Type：Universal Type
  • Transmission：Hydraulic Transmission
  • Walking Mode：Wheeled
  • Load and Unload Method：Front Discharge
  • Engine Power：147~515kw
  • Certification：CE, ISO9001: 2000

Base Info

  • Model NO.：YX657
  • Condition：New
  • Color：Orange
  • Warranty：2 Years
  • Ensign：Df Cummins Engine
  • Power：160kw
  • Delivery Time：30 Days
  • Transport Package：1 Unit in 1*40hq
  • Specification：CE,SGS,EAC,ISO
  • Trademark：ENSIGN
  • Origin：Shandong Province, China
  • HS Code：84295100
  • Production Capacity：20000 Pieces,Year

Description

Bucket capacity2.4~4.5(standard bucket 3.0m3)Total cycle time(lift, dump& lower)≤11sRated load5000kgDump height/Dump angle3175/51mm/ °Overall operating weight16500kgDump distance/Dump angle1126/51mm/ °Max. traction force≥160kNMin. ground clearance445mmMax. breakout force≥190kNWheel base3200mmGrade ability30°Wheel tread2190mmMin. turning radius(outer side of the bucket)6652mmDeparture angle30°Min. turning radius(outer side of the tire)
 6038mmSteering angle(left & right)38°Specifications:
1.0 Engine Details
  (1) Model:Cummins 6CTA8.3-C215 Engine  Or
Shangchai SC11CB220G2B1
  (2) Engine Type:In-line arrangement,water-cooled,four-cycle diesel engine
  (3) Rated Power:160KW Or 162KW
  (4) Rated Speed:2200 r/min(rpm)
  (4) Fuel Consumption ration in
    Standard working condition:		235g/kw.H

2.0 Transmission System
  (1) Type:ZF electro-hydraulic transmission
  (2) Torque converter type:Single stage, 3 elements
  (3) Gears:4 forward, 3 reverse

3.0 Braking System
 (1) Service brake:Air-over-oil caliper disc
 (2) Parking brake:Manual pneumatic control drum brake

4.0 Steering system
(1) Type:Load sensing hydraulic
(2) Oil pump type:gear pump

5.0 Working device hydraulic system
(1) Hydraulic system pressure:17.5 Mpa
(2) Control type:Joystick
(3) Oil pump type:Gear pump

6.0 Tire
(1) Specification:23.5-25
(2) Tread pattern:L-3

7.0 Bucket
  (1) Bucket capacity:3.0 m3
  (2) Bucket type:Heavy-duty bolt on teeth
  (3) Rated Load:5000kg

Optional Configurations:
 Quick Hitch
  Joystick
  A/C
  Third function valve
  Longer arm
  Rops/Fops
  Tyre Chain
Optional Attachments:
 Rock Bucket
 Pallet/Grass Fork
 Grapple Forks/Wooden Forks
 Grapple Bucket
 Snow Bucket
 New Wooden Forks
 Hydraulic Snow Blade
 Sweeper
 Snow Blower
  4 In 1 Bucket

 We Are The Factory!
We Only Produce The High Quality Wheel Loader!

The information above just for you referrence ,if you want to know more about our products and have questions about them ,please contact me 24h freely ,I am delighted to serve you . Moreover , welcome to visit our website@ensign.en.made-in-china.com and our factory in china.
