Articulated Mining Dumper Truck Electric Wet Type Shotcrete Machines with Manufacturer Price
Henan Yugong Machinery Co., Ltd.- After-sales Service：1 Year
- Warranty：2 Year
- Type：Shotcrete
- Shotcrete Type：Wet
- Machining Process：Mxing and Spraying
- Productivity：7m3,H
Base Info
- Model NO.：YG-W7
- Transport Package：1280*700*1280mm
- Specification：1280*700*1280mm
- Origin：China Henan
- Production Capacity：7m3,H
Description
Basic Info.
Model NO. YG-W7 Transport Package 1280*700*1280mm Specification 1280*700*1280mm Origin China Henan Production Capacity 7m3/HProduct Description

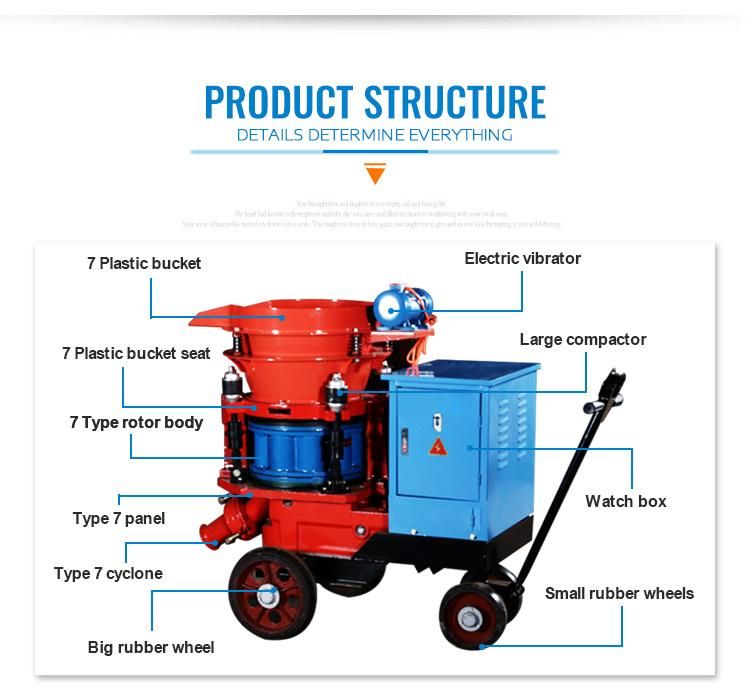

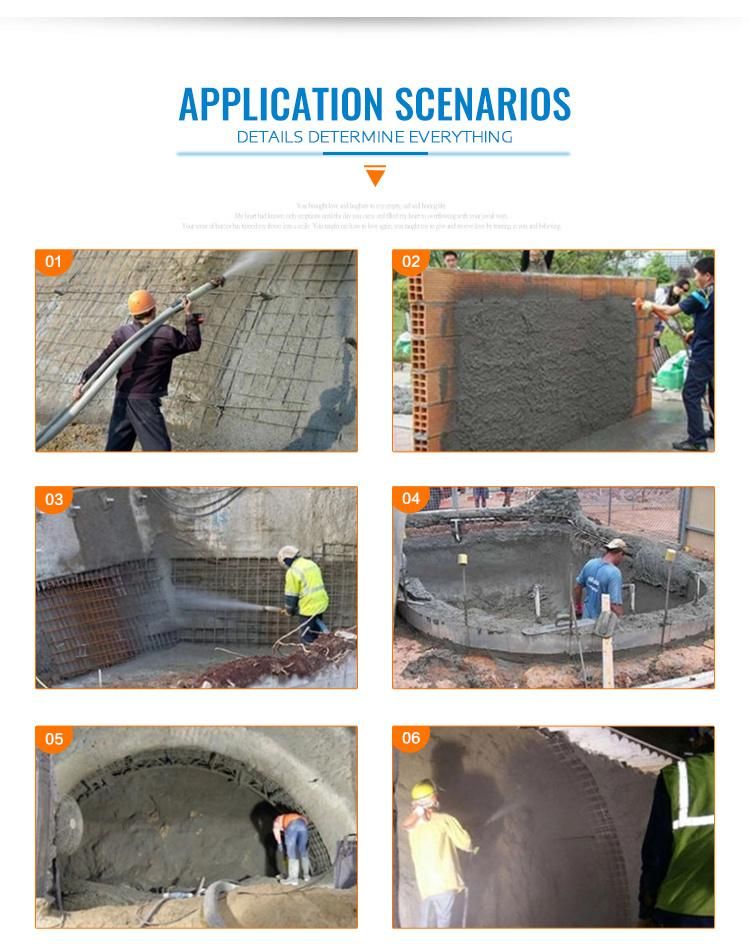

Wet Shotcrete MachineHydraulic wet spraying machine, also known as pumping type concrete wet spraying machine, adopts hydraulic pumping type, with high system reliability and stable conveying volume. Hydraulic wet spraying machine can be used for spraying, filling, grouting, pumping and other construction..
| Drive type | electric motor drive |
| Rated Output | 7m3 /h |
| Max. Horizontal Conveying Distance | 35m |
| Max. Aggregate Size | 15mm |
| Concrete Slump | 8 -15cm |
| Conveying Hose Inner Diameter | 51/ 64mm |
| Operating air Pressure | 0.3-0.6MPa (43-86PSI) |
| Air Consumption | 10~ 12m3 /min(357-430CFM) |
| Main Motor Power | 7.5kW(10hp) |
| Dosing Pump: | BRJ15 |
| Dosing Pump Rated Pressure | 0.6MPa(86PSI) |
| Dosing Pump Output | 17.5 -88L /h |
| Voltage | 220V, 380V, 440V, 660V, 50Hz/60Hz |
| Material Charging Height | 1.17m |

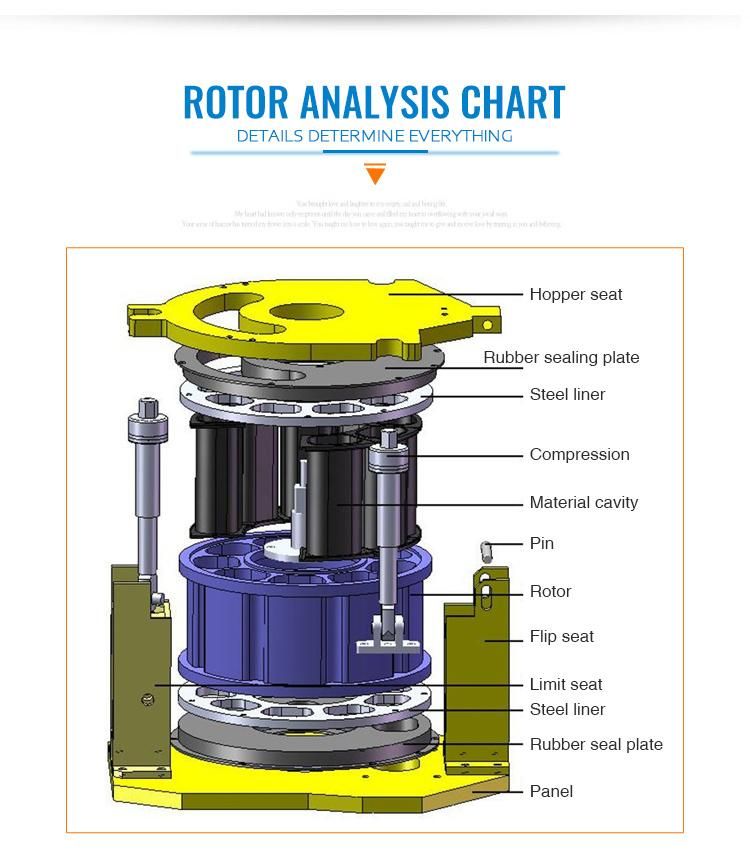

| Rotor Speed | 11r/min |
| Overall Dimension(L × W × H) | 2.05× 0.95× 1.18m |
| Net Weight | 1200kg |
