• Model NO.：TY320C
• Condition：New
• Color：Yellow
• Transport Package：Nude
• Specification：ISO, CE
• Trademark：Yishan
• Origin：Tianjin, China
• Production Capacity：2000PCS,Month

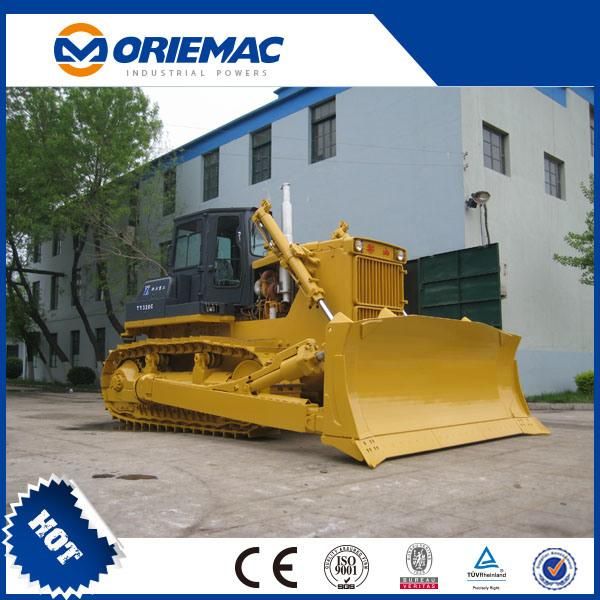

TY320    BULLDOZER      AWARDED THE ISO9001:2000 SYSTEM CERTIFICATE SPECIFICATIONWORK EQUIPMENT Operating Weight (kg)                                         34570 Blade type                                                               Straight-tilt         Min.Ground Clearance (mm)                              500Blade Capacity (m3)                                                  9.96         Min.Turning Radius (m)                                       3.8Blade Width X Height(mm)                                 4130 X1553Ground Pressure (MPa)                                    0.093Max.Lift (mm)                                                             1560         Track Gauge (mm)                                             2140Max.Depth (mm)                                                         560      Max. Pulling Force (KN)                                        281Max.tilt Adjustment (mm)                                         1130     Grade Ability (°)                                                        30  Pitch Adjustment ( ° )                                                   55          Weight Of Blade (kg)                                                   4520       TRAVEL SPEED                                                 1st            2nd               3rdCOOLANT AND LUBRICANT CAPACITYForward (km)                   0~3.6        0~6.6         0~11.5Fuel Tank Capacity (L)....................................................................600Reverse (km)                  0~4.4       0~7.8          0~13.5Hydraulic Tank Capacity (L).............................................................164ENGINEEngine oil Capacity (L)......................................................................47Model & Type    Cummins NTA855-C360S10 6-cylinder, In-line, 4-stroke-cycle,water-cooled ,overhead valve direct injection, turbocharged dieselTorque Converter ,Transmission, Bevel Gear., Steering Clutch Capacity (L)...................................................................................185Rated Revolution (rpm) .............................................................. 2000Final Drive Capacity (L) .............................................68(each side)Flywheel Horsepower (HP) ...........................................................320OVERALL DIMENSIONSCylinder Number-BoreX Stroke (mm) ..................... 6-139.7X 152.4Straight-tilt Blade DimensionsPiston Displacement (L) ....................................................................14

Note: Materials and specifications are subject to change without notice.

Min. Fuel Consumption (g/kW.h).................................................. 213Max.Torque (Nm/rpm) ........................................................ 1509/1400Starting Method........................................Starting motor  24V  11kW   POWER TRANSMISSION SYSTEMTorque Converter ............................  1-stage,1-phase ,3-element,Transmission    Planetary gearing, hand-manipulated, hydraulic shift, forced lubrication,3 forward and 3 reverse speedsBevel Gear.........Spiral bevel gear, splash lubrication, single-stage speed reductionSteering Clutch................................. Wet, multi-disc, spring loaded, hydraulically separated, hydraulic controlSteering  Brake ...... Wet,floating, direct on-off hydraulic inter-linking operationFinal Drive  .............Double reduction of spur gear, splash lubricationHYDRAULIC SYSTEMPump Type............................................ Gear pump 07446-66103Working Pressure (MPa)...............................................................14System Discharge (L/min)…..........400(at revolution of 1800rpm)Working Cylinder type...........................Double-acting piston typeWorking Cylinder Lift Number-BoreXRodXStroke (mm).............. 2-140X75X134Working Cylinder Tilt BoreXRodXStroke (mm)........225 X90X160UNDERCARRIAGE SYSTEMType ................ Swing type of sprayed beam, suspended structure of equalizer barCarrier Rollers.................................................................. 2(each side)Track Rollers......  7/each side (5-single flange, 2-double flange)Track Type................. Sealed, assembled single- grouserNumber Of Track Shoes......................................... 41(each side)Width Of Track Shoes (mm) ....................................................... 560Pitch (mm) .................................................................................  228.6Length Of Track 0n Ground (mm)..............................................3150
