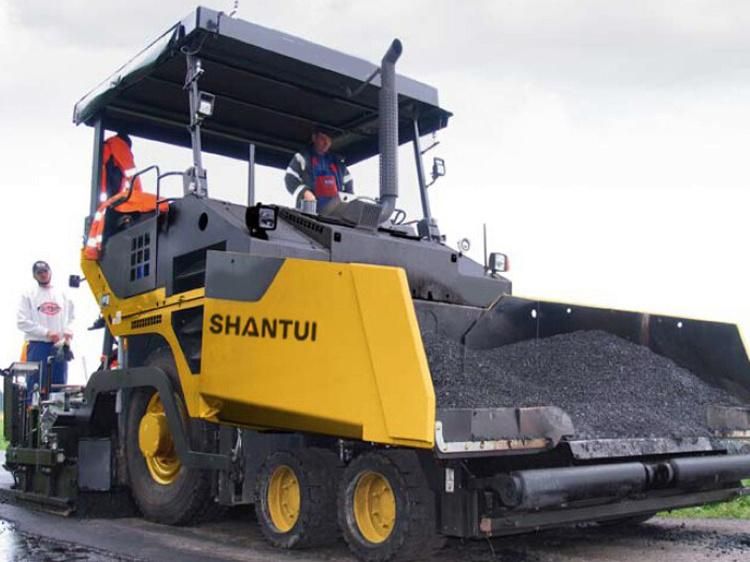

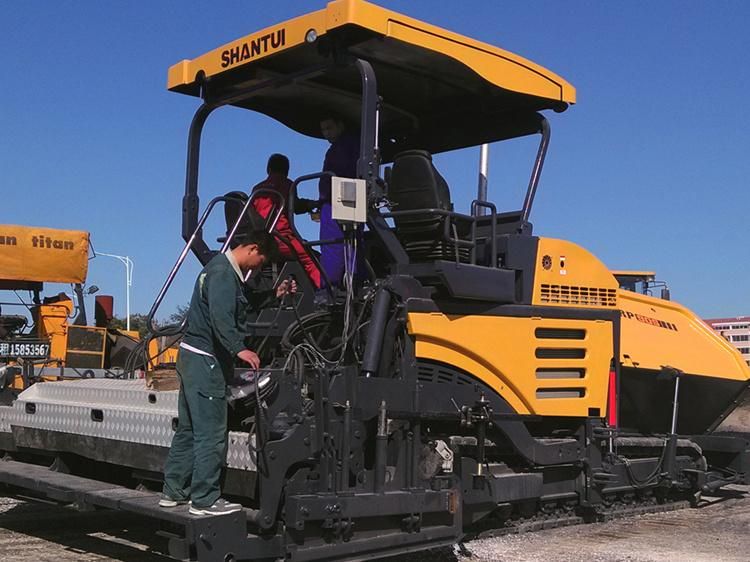

Construction Machinery 9 Meters Width Asphalt Concrete Paver for Sale
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Provide
- Warranty：Provide
- Type：Paver
- Object：Asphalt Concrete Pavement
- Moving Type：Mobile
- Mixing Method：Continuous Drum
Base Info
- Model NO.：SRP90S
- Automatic Grade：Automatic
- Product Capacity：40～400t,h
- Certification：ISO9001: 2000, CE
- Condition：New
- Transport Package：Nude
- Specification：29000kg
- Trademark：SHANTUI
- Origin：China
- Production Capacity：5000unit,Year
Description
Product Description
| Parameter name | SRP90S PLUS (Standard version) |
| Performance parameters | |
| Operating weight (Kg) | 29000 |
| Basic paving width (m) | 3-5.7 |
| Maximum paving width (m) | 9 |
| Maximum paving thickness (mm) | 350 |
| Maximum productivity (t/h) | 850 |
| Engine | |
| Engine model | SC9D/BF6M |
| Rated power/rated speed (kW/rpm) | 162/2000;159/2000 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 7800*9000*3800 |
| Driving performance | |
| Traveling speed (km/h) | 0~2.4 |
| Paving speed (m/min) | 0~18 |
| Chassis System | |
| Hopper | |
| Hopper capacity (t) | 15 |
| Working device | |
| Screed | AVS9030D |
