• Model NO.：20 ton
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.5~1.0m³
• Size：Large-Scale
• Certification：CE, ISO9001: 2000, TUV
• Condition：New
• Maximum Digging Height：10029
• Maximum Dumping Height：7320
• Maximum Digging Depth：6541
• Maximum Vertical Digging Depth：5735
• Maximum Digging Distance：9860
• Maximum Digging Distance at Ground Level：9673
• Working Device Minimum Turning Radiu：3041
• Engine Model：Weichai Wp7
• Engine Type：6-Cylinder
• Displacement：7.14L
• Rated Power：116,2000kw,Rpm
• Type of Hydraulic Pump：Plunger Pump
• Rated Working Flow：2X218L,Min
• Bucket Arm Digging Force：92.5,99.5kn
• Bucket Digging Force：115,124kn
• Transport Package：RO-RO
• Specification：9543*2800*3039mm
• Trademark：HW
• Origin：China
• HS Code：8429521200
• Production Capacity：200 Units ,Month

Model

Unit

HW-215

Total weight

kg

20500

Working device mode

/

Backhoe

Bucket capacity

m³

0.9

Rated power

Kw

116

Dimensions(LxWxG)

mm

9543*2800*3039

L

360

Cooling system

25

24

250/420

* Using advanced engineering and software, we carefully analyze each structure to create durable, reliable machines for tough applications.

* Drive wheels, guide wheels, track rollers, carrier rollers, and tracks

* With 30 years of R&D and manufacturing experiences in drive wheels, guide wheels, track

* rollers, carrier rollers, and tracks, and with the world's leading technologies, it's the first choice

* for excavators; The world's sophisticated forging and heat treatment processes guarantee
* stable and reliable quality;

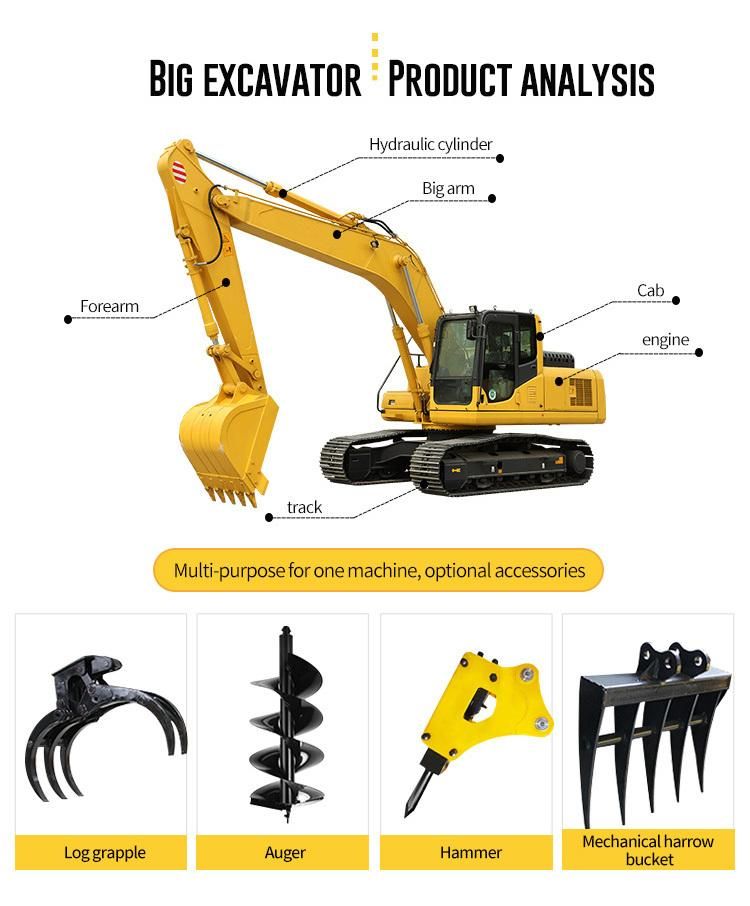

Hengwang HW220 Excavators accessories :

Fast and easily change attachments with optional auxiliary hydraulics. Enhance your work capabilities with a variety of attachments including buckets, hammers, grapples, hydraulic tamper, quick change coupling, and breaking hammer pipeline and so on .

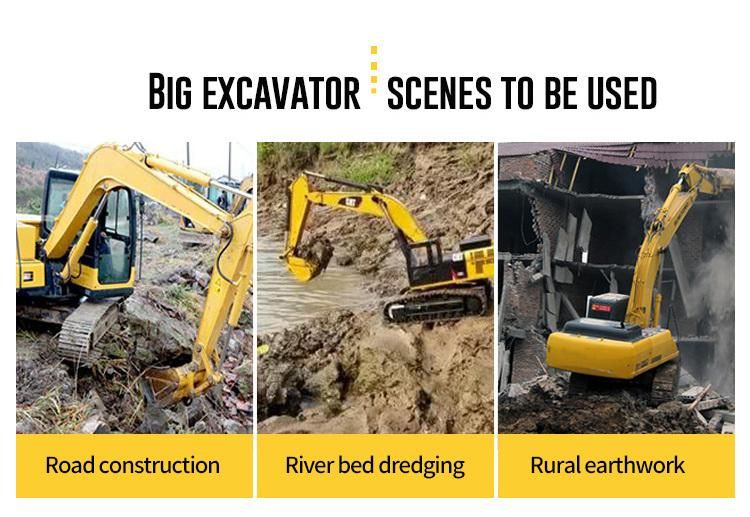

Hengwang HW220 20 ton 21 ton Excavators Applications:

Standard or full-sized excavators, sometimes called "crawler" excavators, make up the largest volume of excavators on the market and this class is most common in commercial construction. Standard excavators not only offer more power and reach, but their hydraulic systems make them capable of handling multiple tool attachments.
