• Model NO.：HR1500
• Usage：Universal Type
• Scraper Type：Pull Scraper
• Load and Unload Method：Front Discharge
• Engine Power：<74kw
• Color：Colour as Our Customer Required
• Transport Package：Naked
• Specification：A
• Trademark：CHHGC
• Origin：Henan
• HS Code：84295100
• Production Capacity：100 Per Month

Basic Info.

Model NO. HR1500 Usage Universal Type Scraper Type Pull Scraper Load and Unload Method Front Discharge Engine Power <74kw Color Colour as Our Customer Required Transport Package Naked Specification A Trademark CHHGC Origin Henan HS Code 84295100 Production Capacity 100 Per Month

Product Description

HR1500 telescopic boom loader
Features:

1.The telescopic boom which can reach 4.2m greatly increase it's working scope.

2.The articulated structure and axle transmission design makes it powerful and has better pass through ability.

3.The seals, valve & joystick handle are famous oversea products which guarantee that it's a reliable long lasting machine.

4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.

5.Wide view cabin and two entrance makes the operating convenient and safe.

6.Quick coupling system, mechanic joystick and buttons makes the operating easy and convenient.

7.The rear cover can be opened as a whole part just by your hands, which makes the maintenance much more simple.
Main technical specification:

1.0 Engine Details
(1) Model: Chinese FAW CE approved engine
(2) Engine type:In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power:37KW (50.32H.P.)
(4) Rated Speed:2200 r/p.min (rpm)
(5) Fuel Consumption ratio in standard working condition: 230g/kw.h
2.0 Transmission System
Hydraulic converter + drive shaft + axles
3.0 Bucket
(1) Bucket Capacity: 0.6m3
(2) Bucket width: 1600mm
(3) Bucket type:Heavy-duty bolt on teeth
(5) Rated Load: 1500kg including attachment
4.0 Overall Dimensions
(1) Overall Length: 4320mm
(2) Overall Height:2670mm
(3) Overall Width: 1720mm
(4) Max. lifting Height:4250mm
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4950mm
(3) Driving System: Hydraulic converter, four wheel drive
(4) Quick coupling system
(5) Joystick
(6) Self levering
6.0 Brake System
(1) Service Brake:Four Wheel Chuck brake
(2) Parking Brake:Hand operated
7.0 Tyre
(1) Model:23.5/70-16 (2)Width: 360mm(3) Diameter: 900mm
8.0 Wheelbase: 2400mm
9.0 Track: 1345mm
10. system pressure:20Mpa; Hydraulic output:70L/min

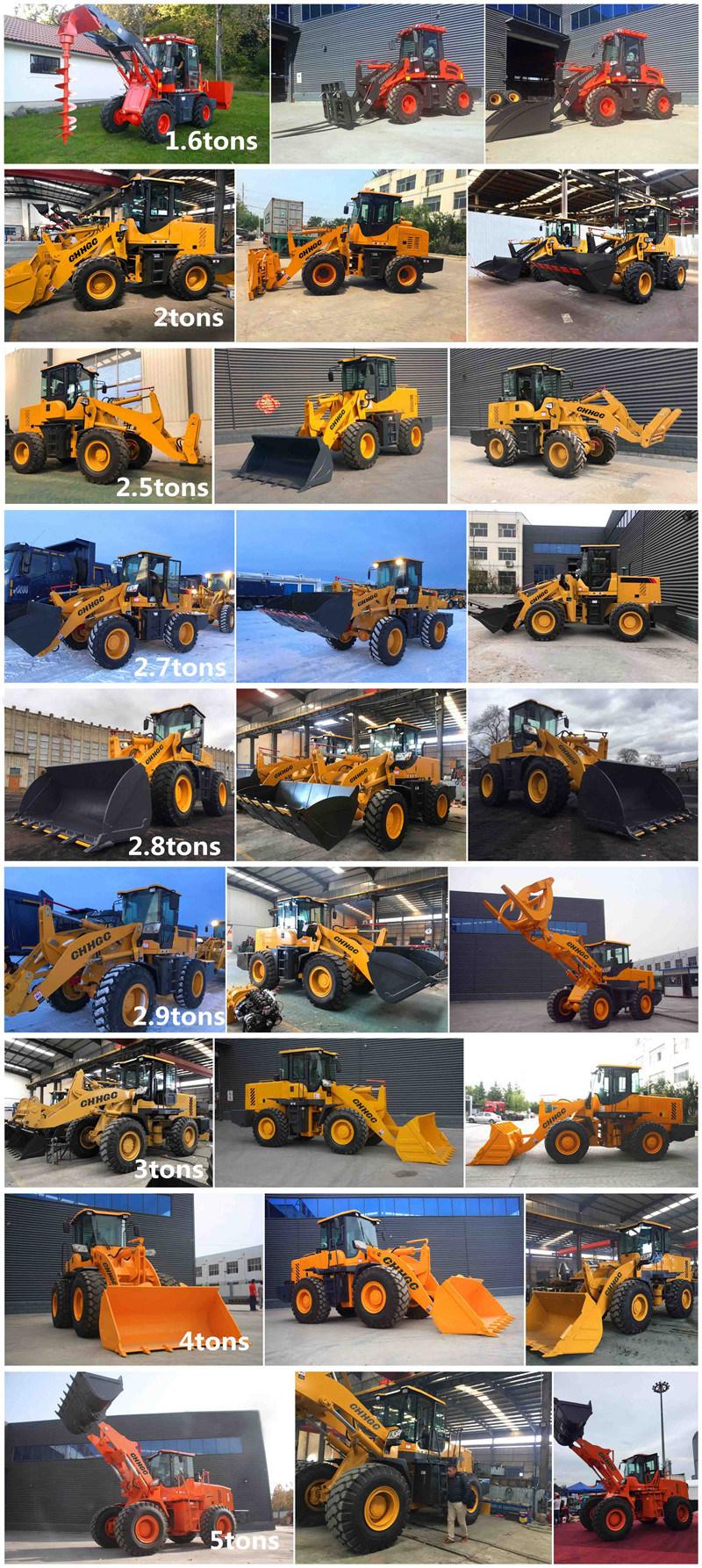

Products series

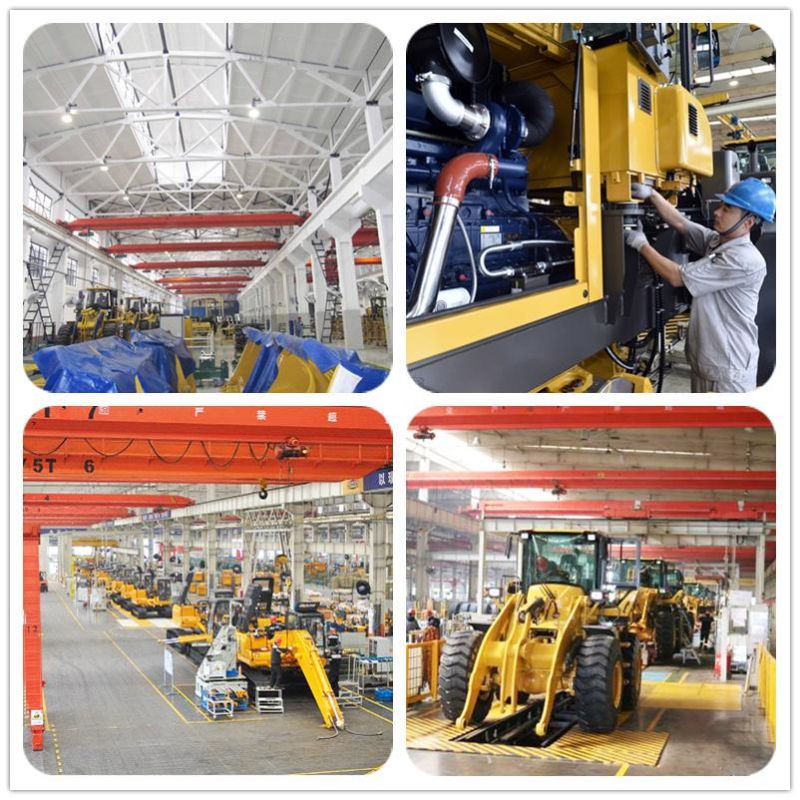

Production Workshop


Certificate


Business Partners

FAQ

Q1. How to ship the loader?
A:    By container, bulk ship, RORO.

Q2. Do you have different loader?
A:   Yes,we supply different model loaders and exported to many countries.

Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
     T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which type loader do you supply?
A:  We supply all kinds of loader such as 1.6T,2T,3T etc,.

Q5. What is your terms of delivery?
A:    FOB, CIF.

Q6. How about your delivery time?
A:   Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A:   Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A:   Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
