5.5kw Robin Engine Ey20 Gasoline Concrete Vibrator

Ningbo Max Machinery Co., Ltd.

Type：Concrete Vibrator
Shotcrete Type：Wet
Machining Process：Vibrating
Structure：Cylinder Type
Productivity：240m²,h
Feeding Height：6meter

Base Info

Vibrating Amplitude：1.4mm
Certification：ISO9001: 2000, CE
Condition：New
Color：as Per Customized
Steel Wire：Stainless Steel Wire
Length：4-20meter
Vibration Speed：2500-3500rpm
Engine：Robin,Diesel
Transport Package：Carton
Specification：0.03cbm
Trademark：MAXMACH
Origin：China
HS Code：84679910
Production Capacity：2000PCS,Month

Description

ItemGasoline engine vibratorModelMC-RMC-HEngine ModelROBIN EY20Honda GX160,5.5hpEngine type4-stroke 25° Single-cylinder with Air-cooledBorex stroke1-67*52mm1-67*52mmDisplacement183cm3183cm3Compression Ratio8.5:18.5:1Max power5hp/3600rpm5hp/3600rpmRecommded power using3.5hp /3600rpm3.5hp /3600rpmFuel Tank capacity3.8L3.8LFuel consumption230g/hp-hr (313g/kwh)230g/hp-hr (313g/kwh)packing size51*39*51cm51*39*51cmN..W/G.W.20kgs/22kgs20kgs/22kgs

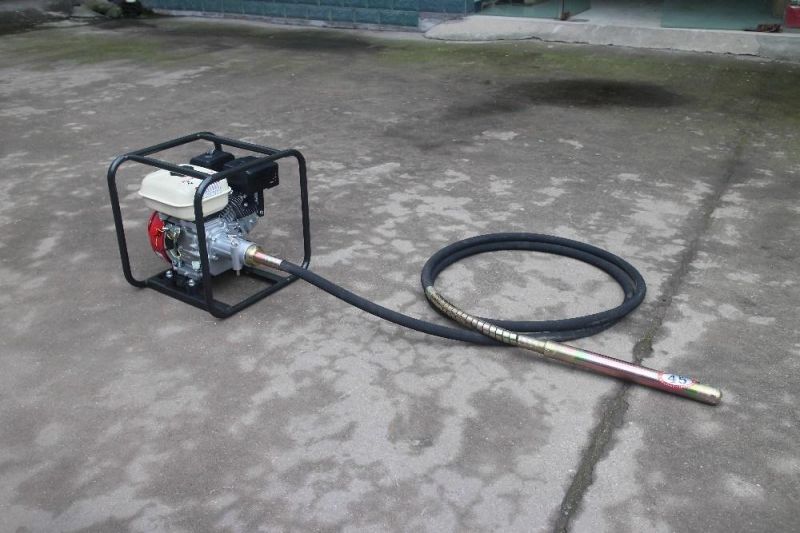

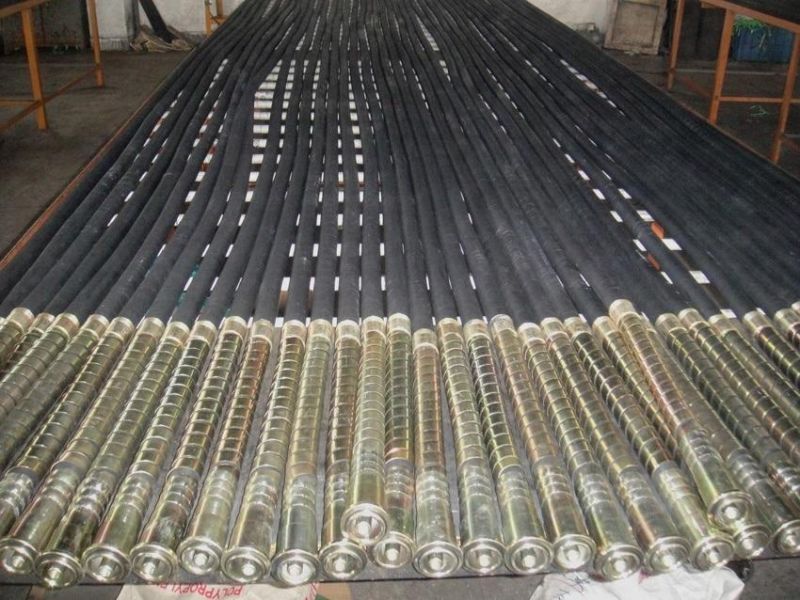

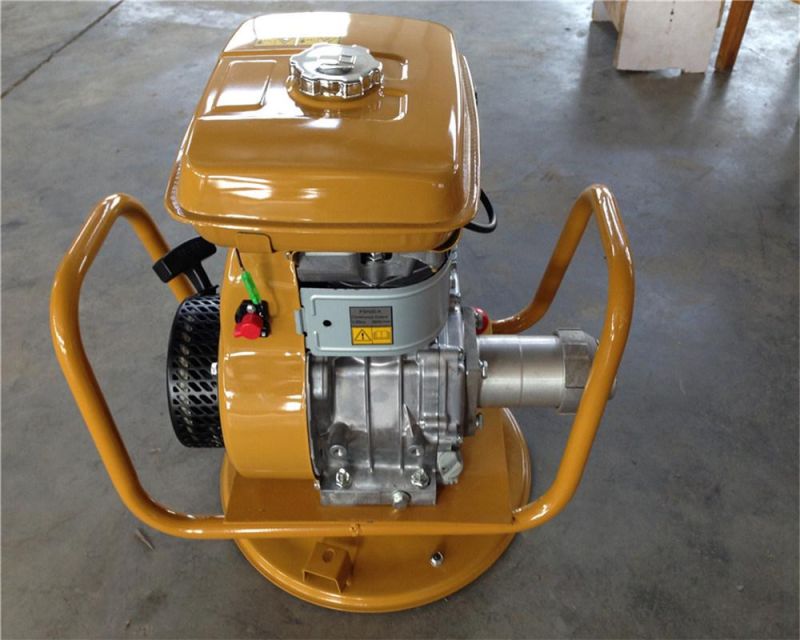

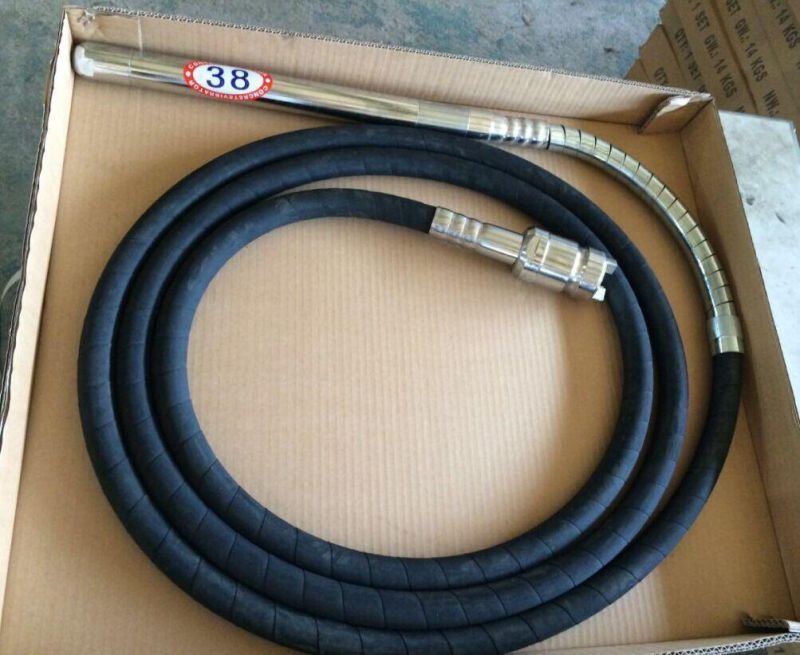

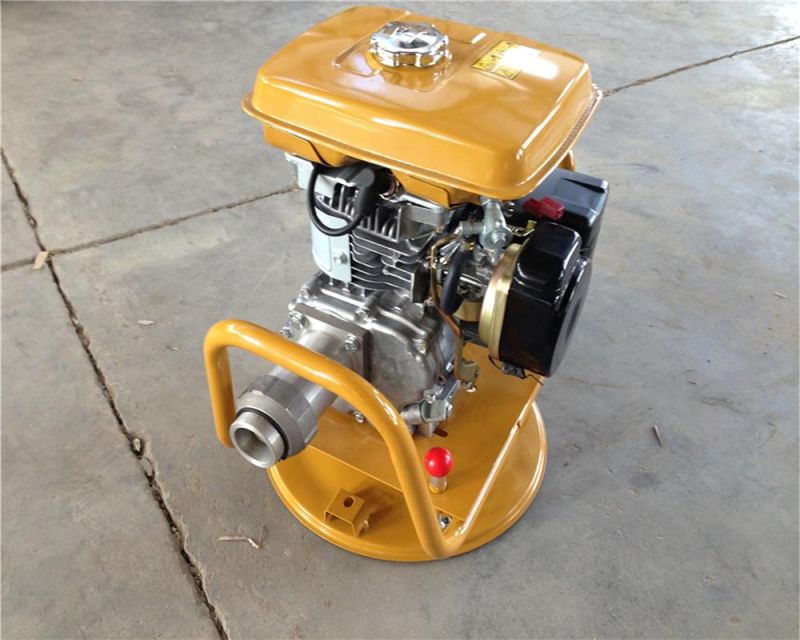

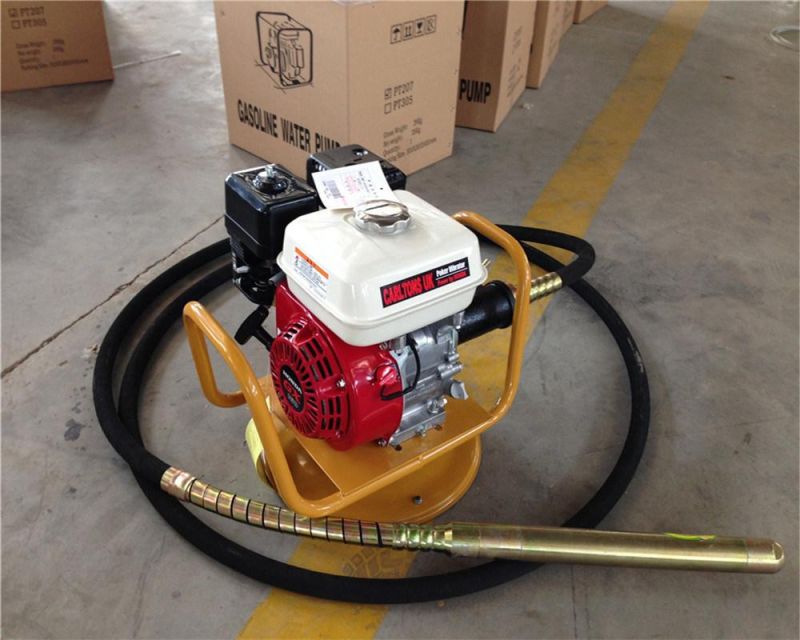

3. Product photos
