12 Ton Multifunction Crawler Crane with Side Lifting Pipelayer Machine
Jinan Sinoheng Import and Export Co., Ltd.- Max. Rated Lifting Load：12tons
- Max. Lifting Height：11.8m
- Standard Bucket Capacity：0.5m3
- Max. Digging Height：11.2m
- Most Suitable Od of Pipe for Hoisting：813mm
- Max. Length of Pipe for Hoisting：12m
Base Info
- Model NO.：DGY12
- Rated Power of Engine：125kw
- Max. Pulling Force：174kn
- Max. Travel Speed (H/L)：5.2,3.5km,H
- Grade-Ability：70%
- Transport Package：Nude Packaging
- Specification：CE, ISO9001: 2000, CCC
- Trademark：SINOHENG
- Origin：Shandong, China.
- Production Capacity：200PCS,Month
Description
Basic Info.
Model NO. DGY12 Rated Power of Engine 125kw Max. Pulling Force 174kn Max. Travel Speed (H/L) 5.2/3.5km/H Grade-Ability 70% Transport Package Nude Packaging Specification CE, ISO9001: 2000, CCC Trademark SINOHENG Origin Shandong, China. Production Capacity 200PCS/MonthProduct Description

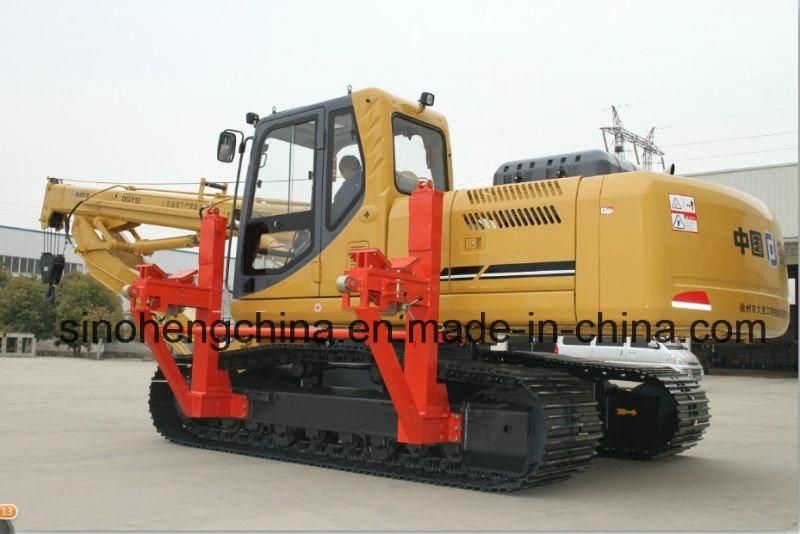

The pipelayer is a multifunction lifting crane , it can as a crawler excavator and a crawler lifting crane , its max. lifting capacity 12tons , max. bucket capacity is 0.5m3 . It is a very hot sale construction machinery . If you need it , please feel free to contact with us ! Welcome to inquiry us !
| Item | Parameter |
| Model | DGY12 |
| Overall weight | 25MT |
| Standard bucket capacity | 0.5m |
| Rated power of engine | 125KW |
| Rated rotation speed | 2100rpm |
| Hydraulic system pressure | 34.3MPa |
| Flow rate | 2*226L/min. |
| Slewing speed | 11.7rpm |
| Max. pulling force | 174KN |
| Max. travel speed (H/L) | 5.2/3.5Km/h |
| Grade-ability | 70% |
| Bucket digging force | 159.7KN |
| Average ground pressure | 52.16KPa |
| Operating type | Hydraulic servo |
| Overall length | 10200mm |
| Overall width | 2980mm |
| Overall height (top of boom)() | 8650mm |
| Overall height (top of operator's cab)() | 3120mm |
| Counter weight ground clearance | 1065mm |
| Min. ground clearance | 442mm |
| Turning radius at swing table tail | 2810mm |
| Crawler ground length | 3445mm |
| Crawler length | 4256mm |
| Crawler gauge | 2380mm |
| Crawler width | 2980mm |
| Crawler shoes thickness | 800mm |
| Swing table width | 2700mm |
| Max. digging height | 11.2m |
| Max. dumping clearance | 9480mm |
| Max. digging depth | 4440mm |
| Max. vertical digging depth | 3650mm |
| Max. digging radius | 10715mm |
| Max. height when Min. slewing radius | 8335mm |
| Most suitable OD of pipe for hoisting | 813mm |
| Max. length of pipe for hoisting | 12m |
| Max. rated lifting load | 12MT |
| Boom length | 11.7m |
| Counter weight height | 2068mm |
| Crawler ground length (during transportation) | 5162mm |
| Qty. of steel wire rope for hoisting | 6 |
| Diameter of steel wire rope for hoisting | 10mm |
| Max. lifting height | 11.8m |
