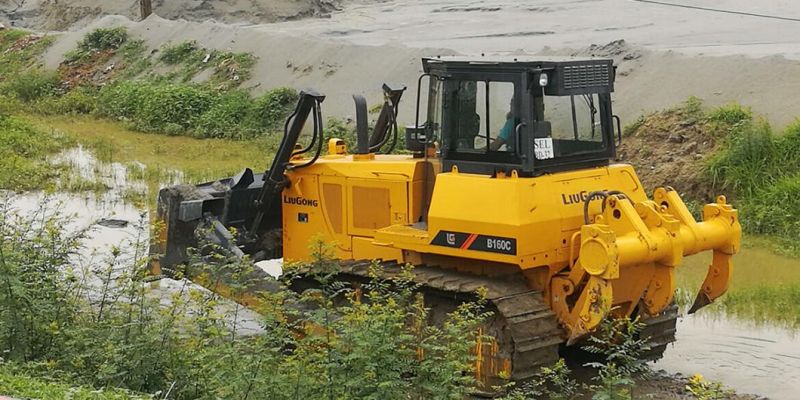

Liugong Bulldozer 17 Ton with Staight Tilt Blade 4.5m3 Clgb160
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Universal Type
- Transmission：Power Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
- Engine Power：74~147kw
- Certification：CE, ISO9001: 2000
Base Info
- Model NO.：CLGB160
- Condition：New
- Color：Yellow
- Transport Package：Nude
- Specification：160HP
- Trademark：Liugong
- Origin：Liuzhou, Guangxi
Description
Basic Info.
Model NO. CLGB160 Condition New Color Yellow Transport Package Nude Specification 160HP Trademark Liugong Origin Liuzhou, GuangxiProduct Description
Liugong Bulldozer 17 ton with Staight tilt blade 4.5m3 CLGB160- Product-Features
- The whole machine features advanced performance, effective matching of the power transmission system, and high working efficiency
- With the fuel tank positioned on the left side of the machine body, the ultra-large rear space makes the care and maintenance of steering and brake systems easy.
- The front arrangement of the working cylinder improves the load- carrying performance, delivering more uniform and safe load- carrying from the frame and front hood. This prevents damage of the transmission system due to the frame being deformed by torsion force, while promoting the performance and reliability of the whole machine.
| Model | CLGB160 |
| Operating weight (kg) | 17000 |
| Dozing capacity (m3) | Staight tilt blade 4.5 |
| Engine model | SC11CB184G2B1 |
| Rated power (kw/rpm) | 120/1850 |
| Gradeability ° | 30 |
| Number of carriers (each side) | 2 |
| Number of track rollers (each side) | 6 |
| Number of track shoes (each side) | 37 |
| Width of track shoe (mm) | 510 |
| Track gauge (mm) | / |
| Overall Dimensions (LxWxH) | 6510x3388x3200 |
