• Model NO.：JMD806H
• Certification：CE, ISO 9001:2000
• Condition：New
• Engine Power：55kw
• Rolling Width：1520mm
• Operating Weight：6000kg
• Transport Package：Nude Packaging
• Specification：3370*1670*2580mm
• Trademark：SINOHENG
• Origin：Jiangsu, China
• HS Code：84294019
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. JMD806H Certification CE, ISO 9001:2000 Condition New Engine Power 55kw Rolling Width 1520mm Operating Weight 6000kg Transport Package Nude Packaging Specification 3370*1670*2580mm Trademark SINOHENG Origin Jiangsu, China HS Code 84294019 Production Capacity 500 Sets/Month

Product Description

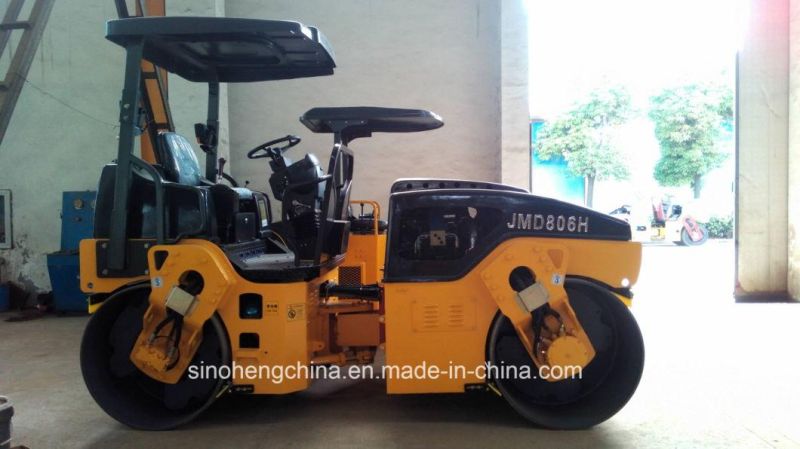

JMD806H FULL HYDRAULIC DOUBLE DRUM VIBRATORY OSCIALLTORY ROLLER       Application
Compacting and repairing the asphalt pavement, general road base, highway, city road, Inter-city township road and other projects etc.. It is more suitable for compacting and repairing of bridge surface asphalt pavement which is unfit to compact by vibratory roller.

Main features

1. Drive system adopts the international brand imported hydraulic components.
2. Hydraulic double drum drive, two-speed stepless change gear. Front-drum vibration, Rear-drum oscillation, Both of drums can be vibrated separately or simultaneously, Start-oscillation by electronic control. Hydraulic steering and easy to operation
3. Articulated frame, flexible steering, streamlined design and nice appearance. The supporting design of front frame fork used to compact the road shoulders more closely
4. Two sets of separate electric control pressurized sprinkler system, anticorrosive sprinkler tank and system
5. The fore cover can be turned up in a big angel for easily maintenance.
6. Random trailer configurations are available to facilitate construction transfer and save energy
7. The imported brand diesel engine is optional
8. Hydraulic powered stationj (1-2 sets of outer joint) is optional

Technical Data

Operating weight	6000	kg
Rolling width	1520	mm
Vibrating/ Oscillatory frequency	51/40	Hz
Vibrating/ Oscillatory amplitude	0.46/0.66	mm
Centrifugal force/Torque	61/16	kN
Engine model	4L88
Engine power	55	kw
Overall dimension	3370x1670x2580	mm

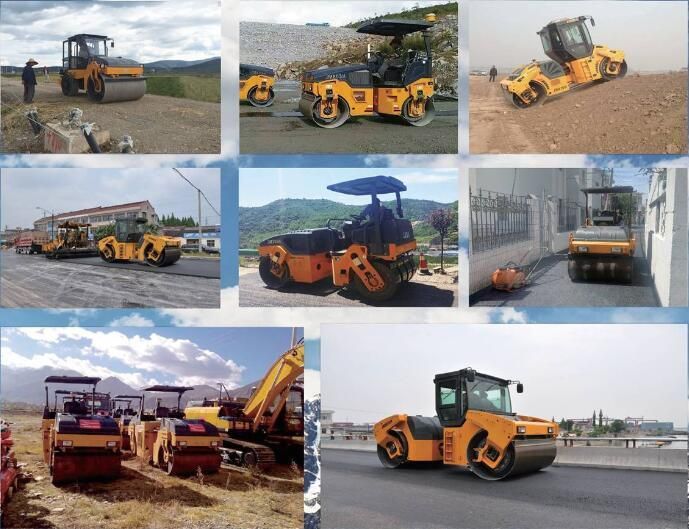

Road Construction Cases :
