• Model NO.：LW300FN
• Type：Medium-sized Loader
• Bucket Capacity：1.5~2.5m3
• Dumping Height：2770~3260mm
• Wheel Base：2600mm
• Power：92kw
• Transport Package：Comply with Export Packaging Requirements
• Specification：7050*2482*3118 mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：84295100
• Production Capacity：10000 Units,Year

Basic Info.

Model NO. LW300FN Type Medium-sized Loader Bucket Capacity 1.5~2.5m3 Dumping Height 2770~3260mm Wheel Base 2600mm Power 92kw Transport Package Comply with Export Packaging Requirements Specification 7050*2482*3118 mm Trademark XCMG Origin Xuzhou, Jiangsu, China HS Code 84295100 Production Capacity 10000 Units/Year

Product Description

XCMG Original Manufacturer Lw300fn Front Loader 3ton Wheel Tractor Loader with Ce

1. It features high efficiency, energy-saving, and strong power.

2. The three-element torque converter and the fixed shaft power shift transmission feature high maturity and reliability.

3. The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.

4. The bucket is made of high strength material to realize high wear and impact resistance.

5. The diversified configurations and complete attachments adapt to the construction needs in different regions and under different working conditions.

6. The optional A/C and the sound insulation and noise reduction measure build elaborately a comfortable operating environment.

Performance Highlights:
Outstanding capability, with traction at ≥9t and breakout force at ≥13t. High adaptability, with turning radius at 5,165mm (tire center).

Variety attached tools meeting requirements of different working conditions:
Log clamp I/ Log clamp IV (offset tooth)/ Toad's mouth clamp/ Paired and Staggered interconvert/ Grasping grass machine/ Pallet fork/ Snowplow.

[Product Parameter]

Description	Unit	Parameter value
Rated operating load	kg	3000
Bucket capacity	m³	1.5~2.5
Machine weight	kg	10600±200
Dump clearance at maximum lift	mm	2770~3260
Reach at maximum lift	mm	1010~1210
Wheel base	mm	2600
Tread	mm	1850
Height of hinge at maximum lift height	mm	3830
Working height(fully lifted)	mm	4870
Max.breakout force	kN	130
Max.horse power	kN	95
Hydraulic cycle time-raise	s	5.5
Total hydraulic cycle time	s	10
Min. turning radius over tyres	mm	5165
Articulation angle	°	35±1
Gradeability	°	28
Tyre size		17.5-25-12PR
Overall machine dimension L×W×H	mm	7050×2482×3118
Model		WP6G125E22
Emission standards		Emission 2
Rated Power/Speed	kW/rpm	92/2200
Fuel Tank	L	170
Hydraulic Tank	L	170
I-gear(F/R)	km/h	8/10
II-gear(F/R)	km/h	13/30
III-gear(F)	km/h	24/-
IV-gear(F)	km/h	40/-

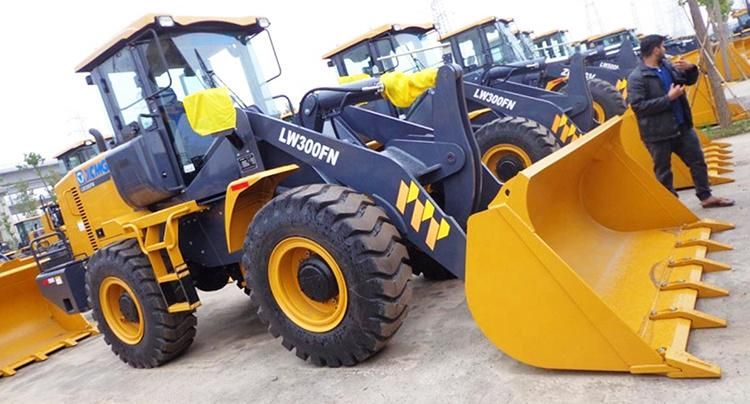

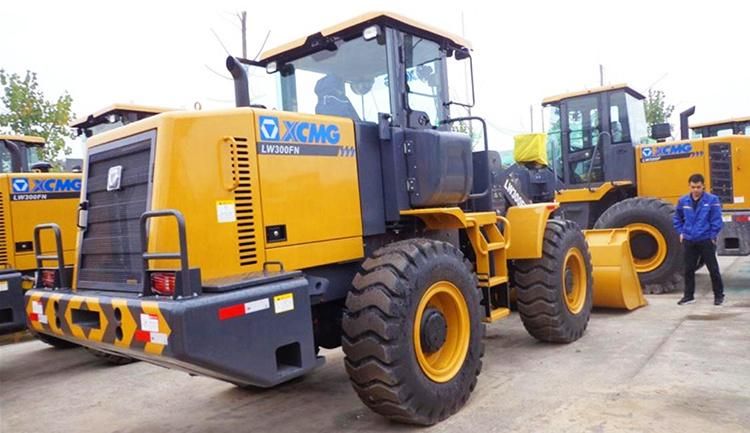

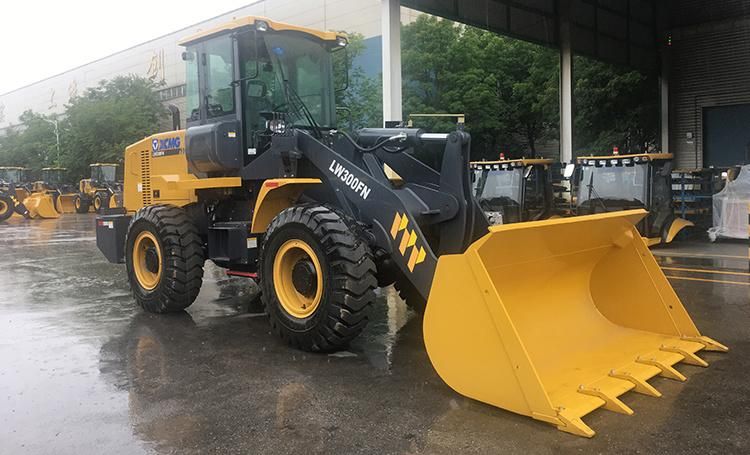

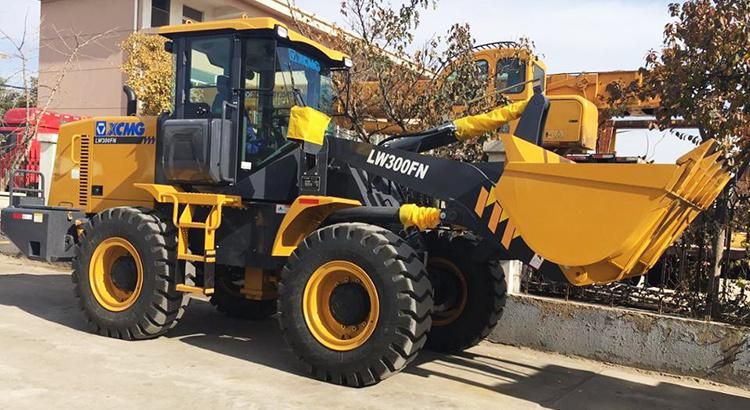

[Product Picture]







[Company Information]






[FAQ]
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
