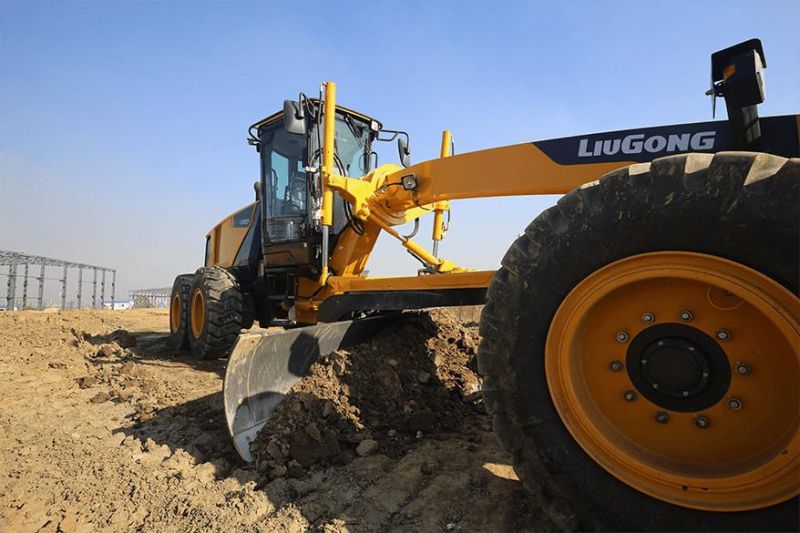

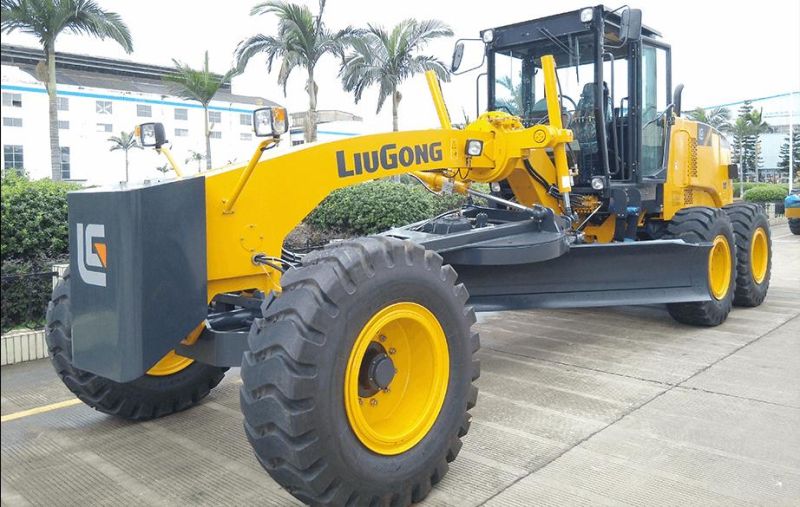

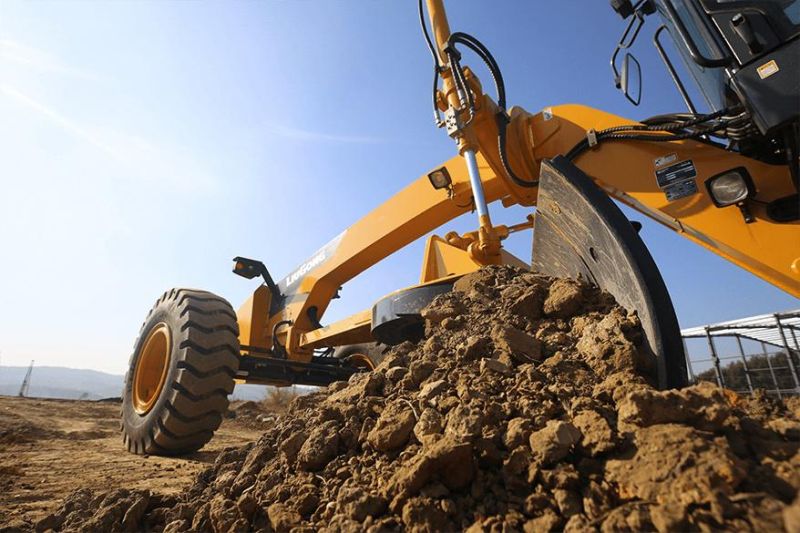

Liugong Clg4165 165HP Motor Grader with 15 Tons Operating Weight

Acntruck Automobile Sales (Shanghai) Co., Ltd.
  • Certification：ISO, RoHS
  • Condition：New
  • Application：Railway, Mine, Farmland, Highway, Road Construction
  • Transmission：Power
  • Walking Mode：Wheeled
  • Type：Medium-sized Grader

Base Info

  • Model NO.：CLG4165
  • Operating Weight：15000 Kg
  • Weight on Front Wheels：4500 Kg
  • Weight on Rear Tandem：10500 Kg
  • Transport Package：Nude Package
  • Specification：3500x2600x3960mm
  • Trademark：Liugong
  • Origin：China
  • HS Code：8429510000
  • Production Capacity：50000PCS,Year

Description

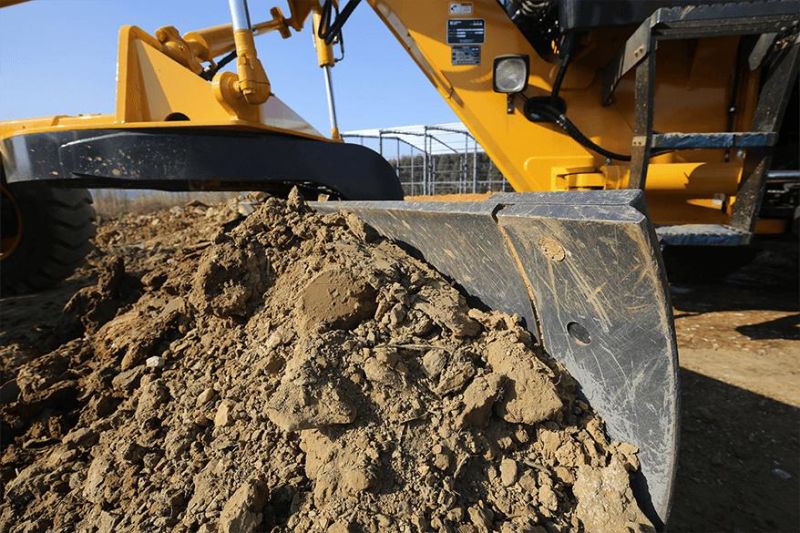

Emission RegulationTier 2 /stage IIMake Model6BTAA5.9Rated Power118 kW (160 hp) @ 2,200 rpmNet Power109 kW (148 hp) @ 2,200 rpmPeak Torque690 N · m @ 1,300 rpmTorque Rise %34Number of Cylinders6                                               MOLDBOARD PERFORMANCEBank Cut Angle40~70°Moldboard Lift Above Ground460 mmMoldboard Side Shift, right / left650 / 520 mmMaximum Sloping Angle90°Cutting Depth600 mmCircle Rotation360°Circle Diameter1,265 mmCircle Thickness120 mm
