• Model NO.：CLW540TBFC
• Certification：ISO9001: 2000, CE
• Condition：New
• Asphalt Tank：6cbm, 8cbm, 10cbm
• Gravel Tank：10cbm,12cbm,16cbm
• Engine：265HP,310HP,336HP,360HP,371HP,375HP
• Asphalt Distribution：0.2-4.0kg,M2
• Insulation Thickness：80mm
• Protective Material：Carbon Steel Q235A
• Burner：Italy Brand
• Proportioner：Made in Tai Wan
• Spaying Width：4m
• Brake System：Air Brake
• Transport Package：Naked, RO-RO, Bulk. Container
• Specification：CCC, ISO9001, ISO14001
• Trademark：CLW
• Origin：Hubei Suizhou
• HS Code：8701909000
• Production Capacity：1000units,Month

Mass parameter:cu rb Weight(kg)21200Total Weight ( kg )31000Rated loading Weight(kg)9670Dimension(mm)12000 × 2500
× 3730Chassis Parameter :Chassis ModelZZ1317N4647CTyre model12.00-20 , 12.00R20Wheelbase (mm)1800+4600+1350Tread mm2022/1830Engine parameter :Engine modelWD615.95ManufacturerChina Heavy Duty Truck Group Co., Ltd.Max.Power(kw)247Max. Torque(N.m)1300/1600FuelDieselDisplacement(ml)9726Chip sealer specification :Tank Capacity(m ³ )8Spray width3800mmHydraulic pump modelCBQL-E563Spray Value0.5-3.0 ( Kg )Hydraulic moto rL2F63W2P2 ( Liyuan )Insulation Thickness50mmControllerZM-3DNozzles32Generator(Converter)YT6800TBurnerG20 ( Riel-lo )Asphalt pumpQGB450 ( Shanggui )Chipping capacity(m ³ )10m3

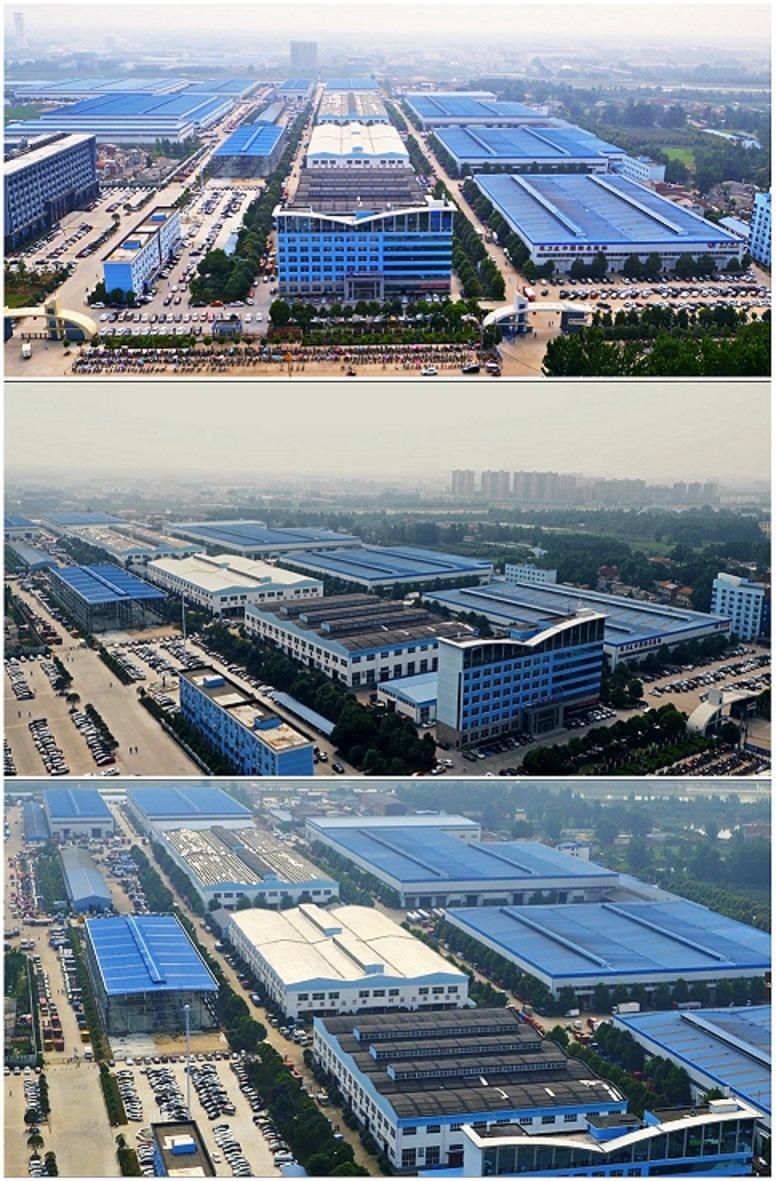

The Full View Our Factory
