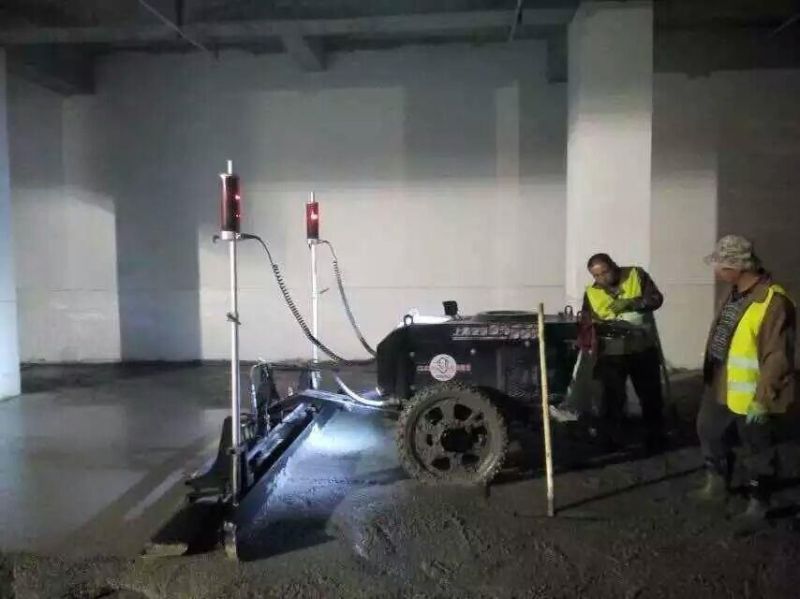

Laser Concrete Screed, Automatic Control Concrete Leveling Machine Gyl-300
Chongqing Geyo Machinery Co., Ltd.- Type：Concrete Mixer
- Shotcrete Type：Wet
- Machining Process：Hydraulic
- Structure：Cylinder Type
- Productivity：240m²,h
- Certification：ISO9001: 2000, CE, TUV SGS
Base Info
- Model NO.：GYL-300
- Condition：New
- Color：Orange
- Engine Type：Kohler CH440
- Power Kw(HP)：9.6(13.0)
- Weight Kgs(Lbs)：398(876)
- Dimension(L*W*H)：2.75m*0.97m*1.17m
- Blade Length：300cm
- Maximum Levelling Depth：250mm
- Driving：Hydra-Drive
- Warrenty：1 Year
- Transport Package：in Steel Frame
- Trademark：geyo
- Origin：China
- HS Code：8479102100
- Production Capacity：1000PCS,Year
Description
Basic Info.
Model NO. GYL-300 Condition New Color Orange Engine Type Kohler CH440 Power Kw(HP) 9.6(13.0) Weight Kgs(Lbs) 398(876) Dimension(L*W*H) 2.75m*0.97m*1.17m Blade Length 300cm Maximum Levelling Depth 250mm Driving Hydra-Drive Warrenty 1 Year Transport Package in Steel Frame Trademark geyo Origin China HS Code 8479102100 Production Capacity 1000PCS/YearProduct Description
Fully Dydraulic Drive, Laser Concrete Screed, Automatic Control Concrete Leveling Machine GYL-300
Features and Advantages:
Hydraulic machinery walk-behind;
Engine: American Kohler CH440, electric start 3600/14 horsepower;
Battery circuit: all cars equipped with 12V DC voltage generator 18 amps;
Optional laser system: US Tianbao, Germany MOBA + Leica;
Drive system: Hydraulic Italy Sam hydraulic SAM HYDRAULIC imported hydraulic drive motor;
Walking Control: Manual adjustment, mechanical proportional hydraulic valve;
Standard tires: 80/100 × 21 motorcycle tire choice AT28 × 10.00-12 ATV tires;
Suspension: Independent hydraulic suspension system;
Specification
| Model | GYL-P300 | GYL-E300 |
| Engine Type | Kohler CH440 | Kohler CH440 |
| Power Kw(hp) | 10.3/14.0 | 10.3/14.0 |
| Weight(lbs) | 398(876) | 398(876) |
| Oil Tank Capacity(L) | 14 | 14 |
| Screed Head Width(m) | 3.0 | 3.0 |
| Self Propel | Standard | Standard |
| Electric Starter | Standard | Standard |
| Auto Level | Standard | Standard |
| Laser System | US Trimble,German MOBA+Leica, or Topcon | German MOBA+Leica |
| Drive Unit | Italy SAM hydraulic motor | Hydraulic motor |
| Main Pump | German REXROTH axial piston pump | High performance axial piston pump |
| Filters | Italy OMT high-precision filters | high-precision filters |
| Master Valve | Sauer-danfoss main control valve | Load sensitive pressure compensated main control valve |
| Vibration Control System | US INDCOM high-speed hydraulic motor | Chinese high-speed hydraulic motor |
| Accumulator | German HYDAC high-pressure accumulator | high-pressure accumulator |
| Hydraulic Hose | US GATES high-pressure hose | High-pressure resistance Hose |
