• Model NO.：SWE230LB
• Size：Medium-Sized
• Certification：ISO9001: 2000, ISO14001
• Condition：New
• Max. Cutting Height：12190 mm
• Max. Digging Depth：11600 mm
• Max. Reach：15100 mm
• Operating Weight：24.1 Ton
• Brand：Sinoway
• Warranty：12 Months
• Transport Package：Naked
• Specification：operating weight 24100KG
• Trademark：SINOWAY
• Origin：China
• HS Code：84295212
• Production Capacity：200 Units,Month

Basic Info.

Model NO. SWE230LB Size Medium-Sized Certification ISO9001: 2000, ISO14001 Condition New Max. Cutting Height 12190 mm Max. Digging Depth 11600 mm Max. Reach 15100 mm Operating Weight 24.1 Ton Brand Sinoway Warranty 12 Months Transport Package Naked Specification operating weight 24100KG Trademark SINOWAY Origin China HS Code 84295212 Production Capacity 200 Units/Month

Product Description

Advantages
The Cummins B5.9 engine produces high power output. Sinoway has harnessed this power for the six working modes of the excavator. Perfectly match these work modes to the job at hand and even the least experienced of the operators will find they can work faster and complete more in less time.
Where intelligence meets brute force.Negative flow hydraulics direct the engine's power to ensure hydraulic pump flow
continually adjustable for smooth, quick and efficient operation.Engine power and hydraulic pump flow are automatically reset to adjust for the load attachment, helping to maximize the efficiency of the machine.
The SWE230LC 's tough and reliable structure provides increased strength, reduced wear, and improved transmission of power to the ground drive.
Ergonomically designed controls, clear and informative displays, increased visibility, and exceptional comfort increases operator efficiency and safety. The easily accessible service points ensures important daily servicing and routine maintenance gets done.
The boom and arm structures are designed with large cross-sectional supports and incorporates one-piece steel castings. This solid engineering guarantees long-term durability and high resistance to bending and torsional stress. Standard rock-guard plates and vertical guards protect the arm in rocky digging conditions and tough environments.
The upper structure is strongly reinforced by the use of an H-beam in the high cross section of the main structure providing even weight distribution and increasing stability.The platform's collision protection system has been welded into place to improve its strength, rigidity and overall service life.

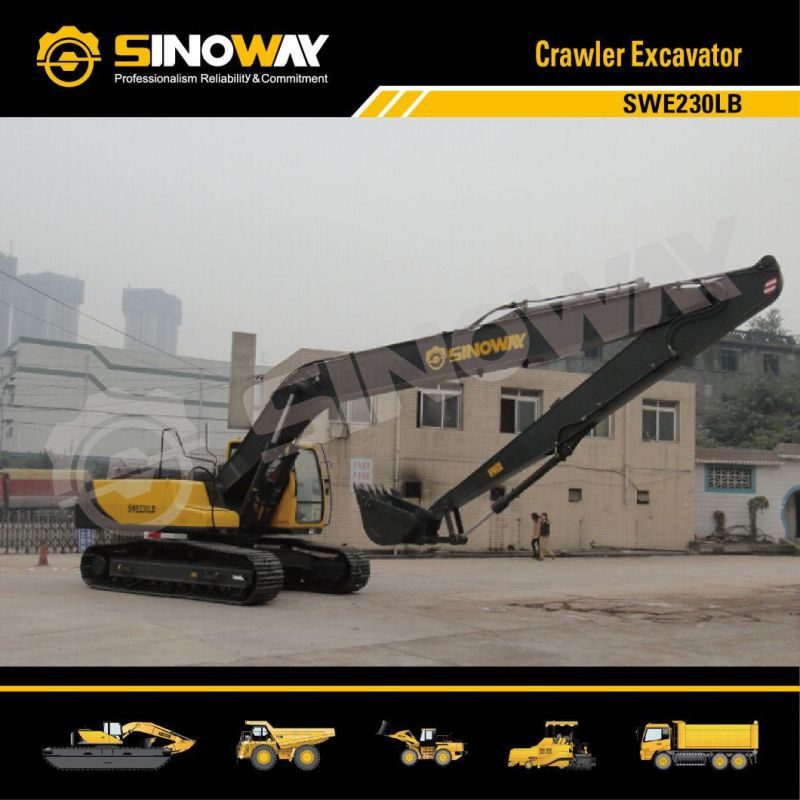

Product Show



Specifications

Engine
Model	Isuzu
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	106.5KW
Rated speed	2100rpm
Main Technical Specification
Operating weight	24100Kg
Standard bucket capacity	0.5m3
Slewing speed	13rpm
Stick digging force	50KN
Bucket digging force	64KN
Main Features
Dual hydraulic pump system
Advanced electrical system
Special preferential hydraulic system
Ergonomically designed cab
Main Applications
Dredging project
Hydro-electric project
Road construction
City dwellings construction
Sea port and airport
Road repairing project
Hydraulic System
Main pump	KAWASAKI
Main valve	KAWASAKI
Motor	KAWASAKI
Hydraulic flow rate	2×235L/min
Hydraulic pressure	30MPa
Travelling System
Travelling speed	3~5km/h
Grade ability	65%
Ground pressure	0.047MPa
Dimensions
Overall length	13150mm
Overall width	3000mm
Overall height of boom	3320mm
Overall height of cab	2755mm
Engine cover height	2300mm
Counterweight clearance	1060mm
Ground clearance	465mm
Upperstructure width	2710mm
Rear-end length/Slewing radius	2940mm
Overall track length	4510mm
Track length on ground	3720mm
Track gauge	2400mm
Track width	600mm
Boom slewing angle(L/R)	0o
Operating Scope
Stick length	5200mm
A: Max. cutting height	12190mm
B: Max. dumping height	9800mm
C: Max. digging depth	11600mm
D: Max. reach	15100mm
