• Model NO.：LW300KN
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Dump Clearance at Max Lift：3100~3780mm
• Rated Power/Speed：92,2000kw,Rpm
• Transport Package：Suit for Export
• Specification：7245*2482*3320mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：84295100
• Production Capacity：1000,Year

Overview Product Description

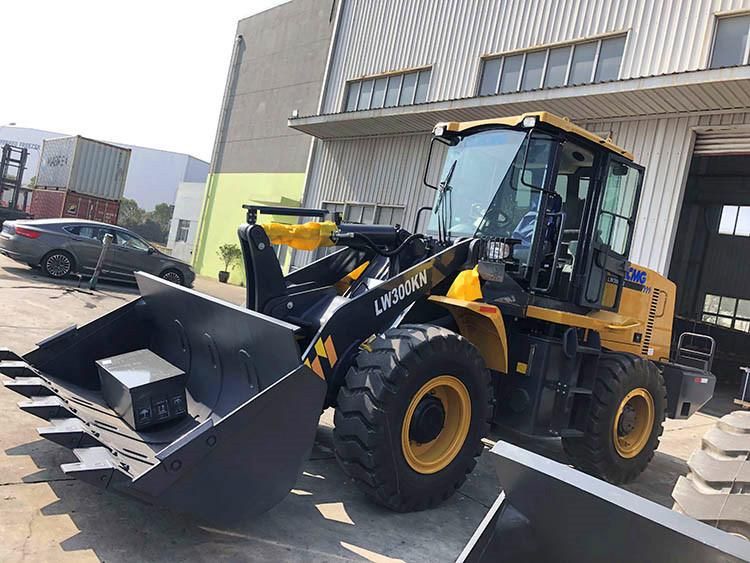

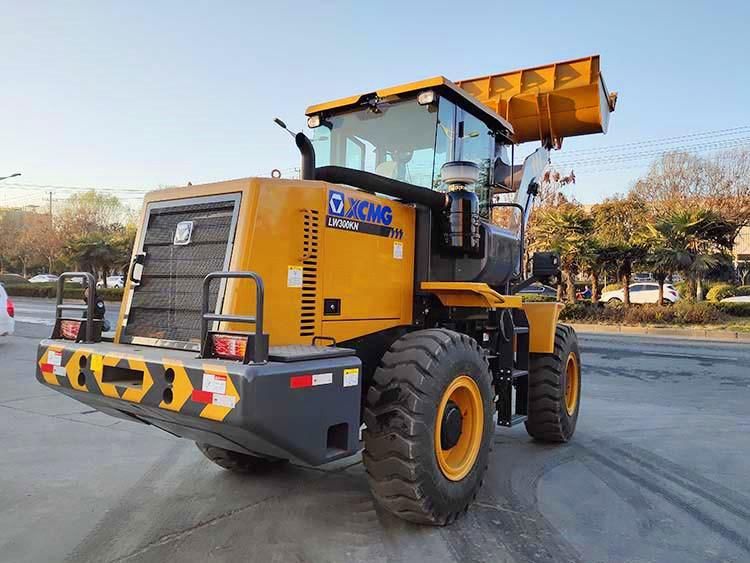

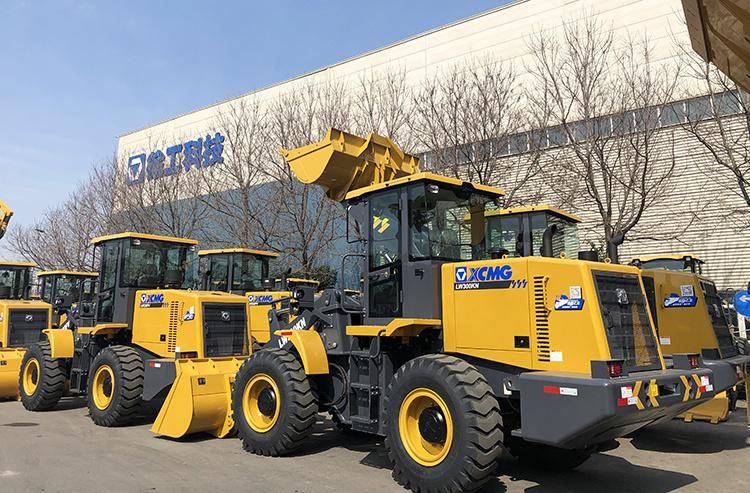

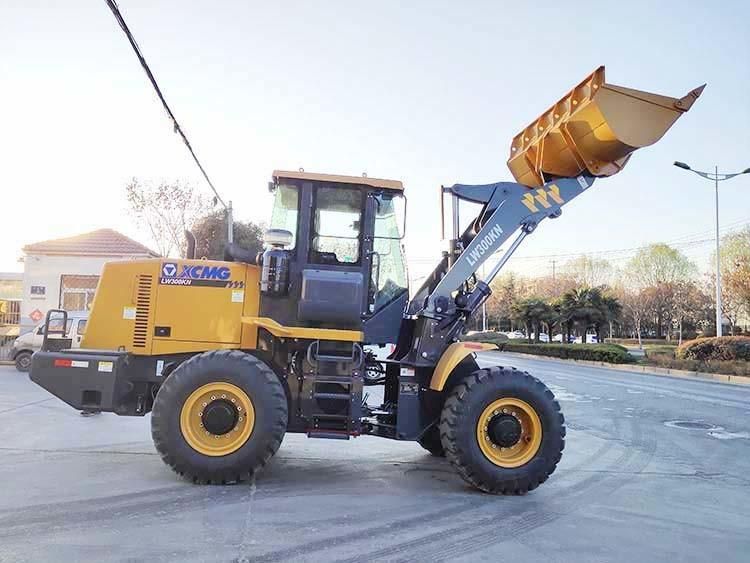

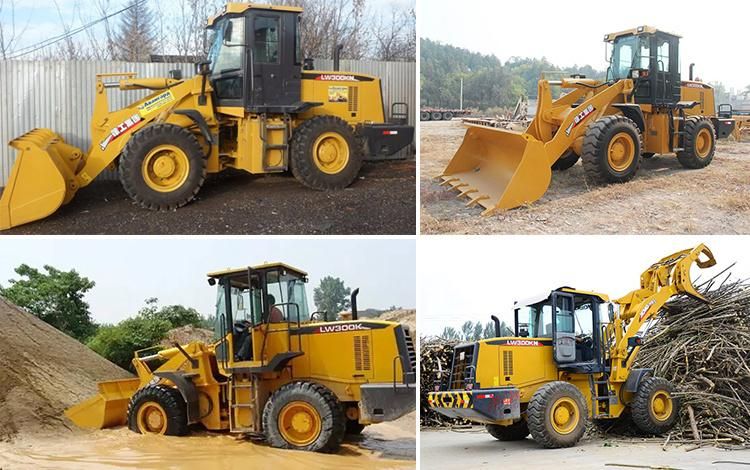

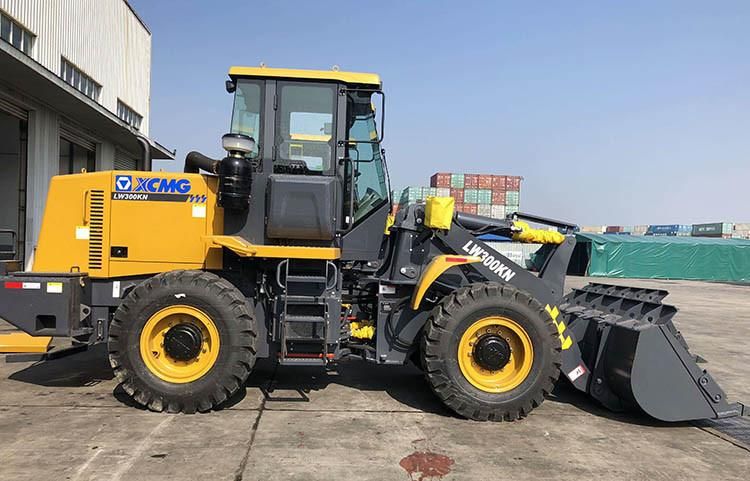

LW300KN is the popular XCMG loader, the updaged edition of ZL30E (LW321F). With the features of maturity and reliability of the old model, LW300Fis improved all round, and leads in the same kind of product. LW300F adopts metal cab and hood, and electrophoretic coating. The machine features high efficiency, strong power, long service life and comfortability, and is applicable to various conditions.

Great strength
Tilt cylinder bore of 160mm, enlarge the boom cylinder bore from 110mm to 125mm, and increase the boom lifting force by 29%.
12-ton strong tilt drawing force guarantees the outstanding adaptation to various tough conditions.
7-ton strong boom lifting force ensures various operation methods of high intensity.

Long service life
The key articulated positions feature two-stage dust-proof, less abrasion and longer service life.
Wear resistant blade and bucket teethfeature longer service life.
The hydraulic pipe adopts 24° cone and O ring, settling the issue of leakage.Product ParametersDescriptionUnitLW300KNRated operating loadkg3000Bucket capacitym³1.5~2.5Machine weightkg10900±200Dump clearance at maximum liftmm2770~3260Reach at maximum liftmm1010~1210Wheel basemm2900Treadmm1850Height of hinge at maximum lift heightmm3830Working height(fully lifted)mm4870Max.breakout forcekN130Max.horse powerkN95Hydraulic cycle time-raises5.4Total hydraulic cycle times9.3Min. turning radius over tyresmm5170Articulation angle°38±1Gradeability°28Tyre size 17.5-25-12PROverall machine dimension L×W×Hmm7245×2482×3320Model WP6G125E201Emission standards Emission 2Rated Power/SpeedkW/rpm92/2000Fuel TankL170Hydraulic TankL175Product Show






Company Profile

FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
