Hydraulic Hammer Pile Driver Solar Ramming Piling Machine for Solar Project
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Yes
- Warranty：12months
- Type：Hydraulic Hammer
- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Hydraulic Hammer
- Power Source：Diesel
Base Info
- Model NO.：HW400R
- Motor Power：11kw
- Noise：With Noise
- Certification：ISO 9001:2000
- Condition：New
- Product Number：Hwl400r

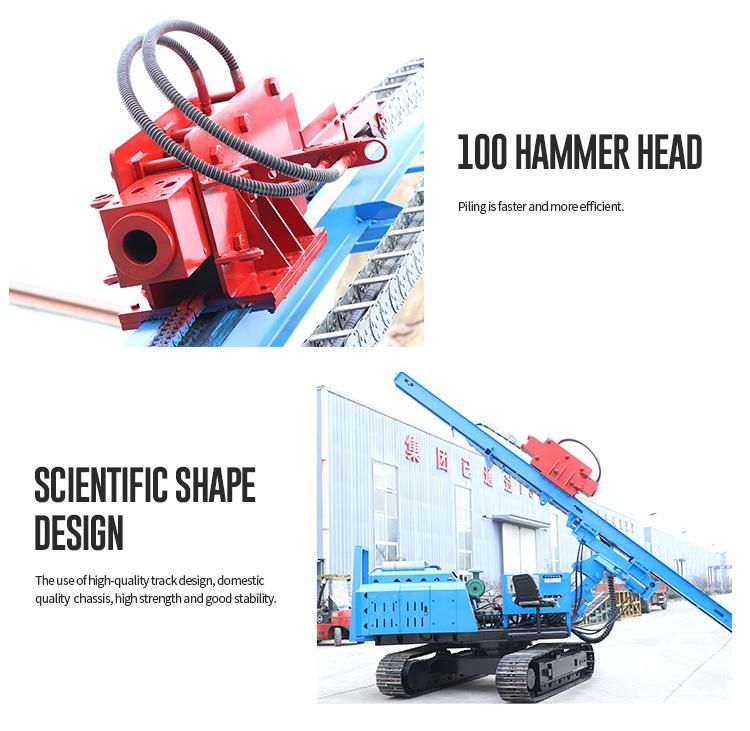

- Hydraulic Hammer Model (mm)：75,85,100
- Hydraulic Hammer Flow (L/Min)：50-110
- Impact Frequency (BMP)：350-800
- Drill Rod Diameter (mm)：75,85,100

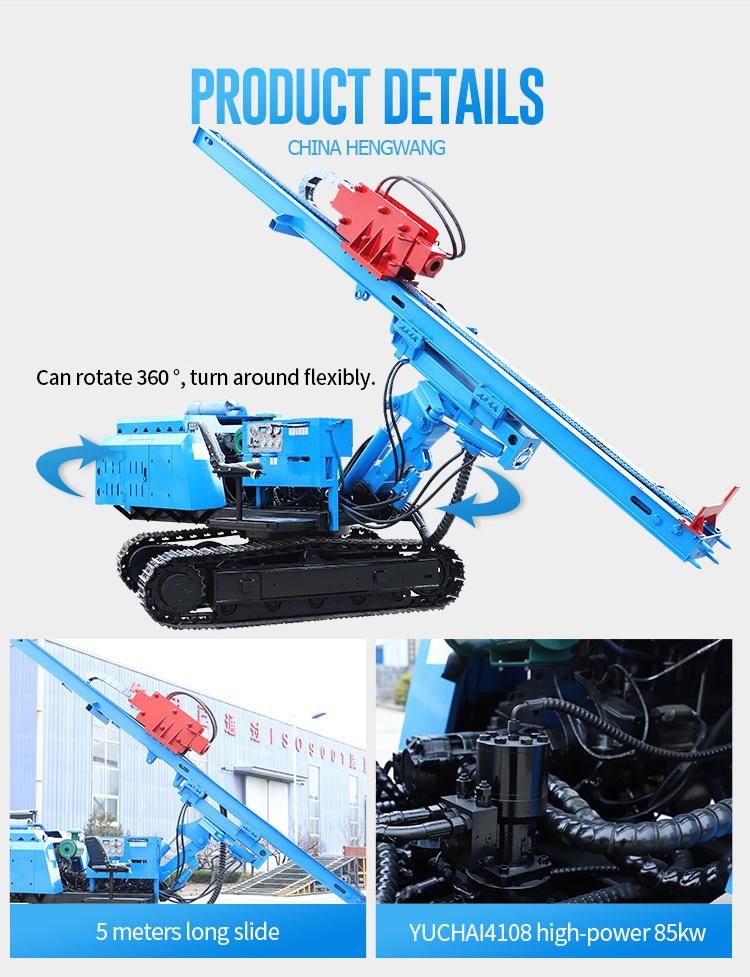

- Frame Rotation Angle (°)：360
- Traveling Speed (Km/H)：3
- Hydraulic System Pressure (MPa)：22
- Vehicle Weight (Kg)：6200
- Engine Power (Kw)：85
- Track Shoe Width (mm)：350
- Track Single (Section)：42
- Transport Package：Container
- Specification：10110*2470*3350
- Trademark：Hengwang
- Origin：Shandong, China
- HS Code：8428909090
- Production Capacity：500 Sets Per Month
Description
Product number
HWL400R
Hydraulic hammer model (mm)
75/85/100 optional
Hydraulic hammer flow (L/min)
50-110
Impact frequency (bmp)
350-800
Drill rod diameter (mm)
75/85/100
Walking motor torque (N.m)
<11500
Pile height (mm)
According to the slide
Sliding guide frame inclination angle (°)
(Left) 5(Right) 5
Frame rotation angle (°)
360
Hydraulic system pressure (mpa)
22
Gear pump displacement (ml/r)
40+40+25
Traveling speed (km/h)
3
Vehicle weight (kg)
6200
Engine power (kw)
85
Engine rated speed (r/min)
2600
Track shoe width (mm)
350
Track single (section)
42
Total displacement of walking motor (ml/r)
53
Rated pressure of walking motor (mpa)
30
Travel motor reduction ratio
1:54.4
Dimensions (mm)
4420*1920*4900-7900(working state)4500-7500*1920*2800(transportation status)
