• Size：Small-Scale
• Certification：ISO9001: 2000
• Condition：New
• Engine Power：18.1kw-22.1kw
• Rated Speed：2200r,Min
• Hydraulic System Pressure：16MPa
• Climbing Gradient：30°
• Walking Speed：2km-3km,H
• Platform Turning Speed：10r,Min
• Maximum Pulling Force：10.5kn-11.5kn
• Total Length：2710-3600mm
• Max Digging Height：3150 mm-3400mm
• Max Dumping Height：1600 mm-2200mm
• Warranty：1 Year
• Multifunction：Auger, Hammer, Rake, Ripper, Gripper
• Other Product：Backhoe Loader, Self Loading Concrete Mixer
• Product Usage：Digging Machine
• Maximum Digging Height Radius：2900mm-4500mm
• Transport Package：Container
• Specification：1550kg-2300kg,set
• Trademark：Hixen
• Origin：China
• HS Code：84295212
• Production Capacity：200 Units,Month

Basic Info.

Size Small-Scale Certification ISO9001: 2000 Condition New Engine Power 18.1kw-22.1kw Rated Speed 2200r/Min Hydraulic System Pressure 16MPa Climbing Gradient 30° Walking Speed 2km-3km/H Platform Turning Speed 10r/Min Maximum Pulling Force 10.5kn-11.5kn Total Length 2710-3600mm Max Digging Height 3150 mm-3400mm Max Dumping Height 1600 mm-2200mm Warranty 1 Year Multifunction Auger, Hammer, Rake, Ripper, Gripper Other Product Backhoe Loader, Self Loading Concrete Mixer Product Usage Digging Machine Maximum Digging Height Radius 2900mm-4500mm Transport Package Container Specification 1550kg-2300kg/set Trademark Hixen Origin China HS Code 84295212 Production Capacity 200 Units/Month

Product Description

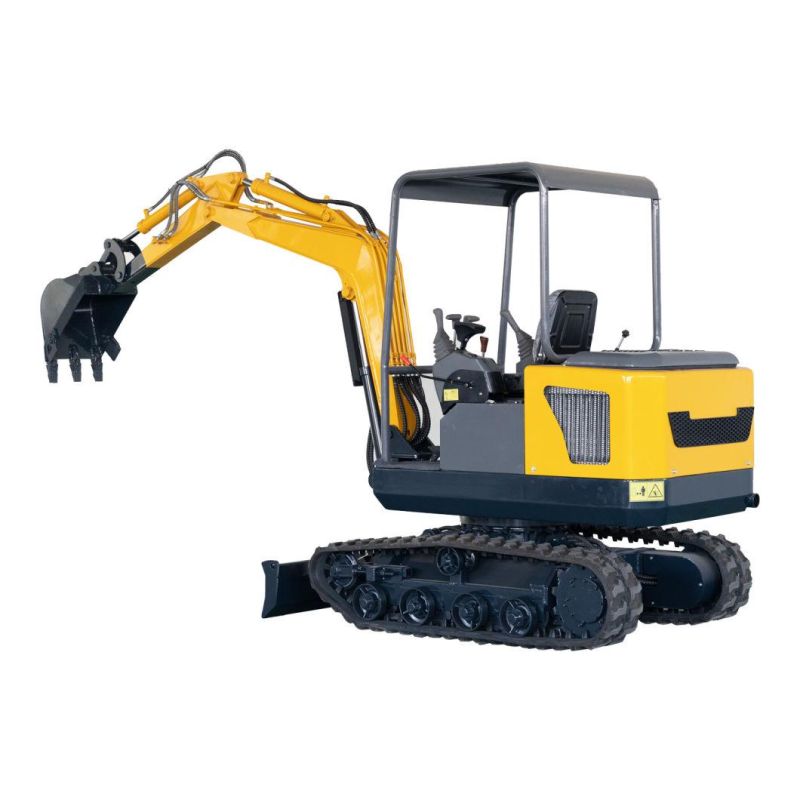

Ce Approved 2020 New Yanmar engine Multifunctional Mini Micro Hydraulic Crawler Excavators 1.5ton-2.5ton Competitive Prices for Sale

HIXEN   mini excavator is designed for small projects which widely used in construction area, agriculture, municipal works, vegetable

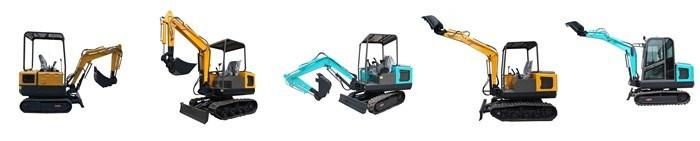

greenhouse and trench digging etc. 1.0Ton, 1.6Ton, 1.8Ton, 2.0Ton, 2.2Ton, 2.5Ton, 3Ton, 3.5Ton are all available.

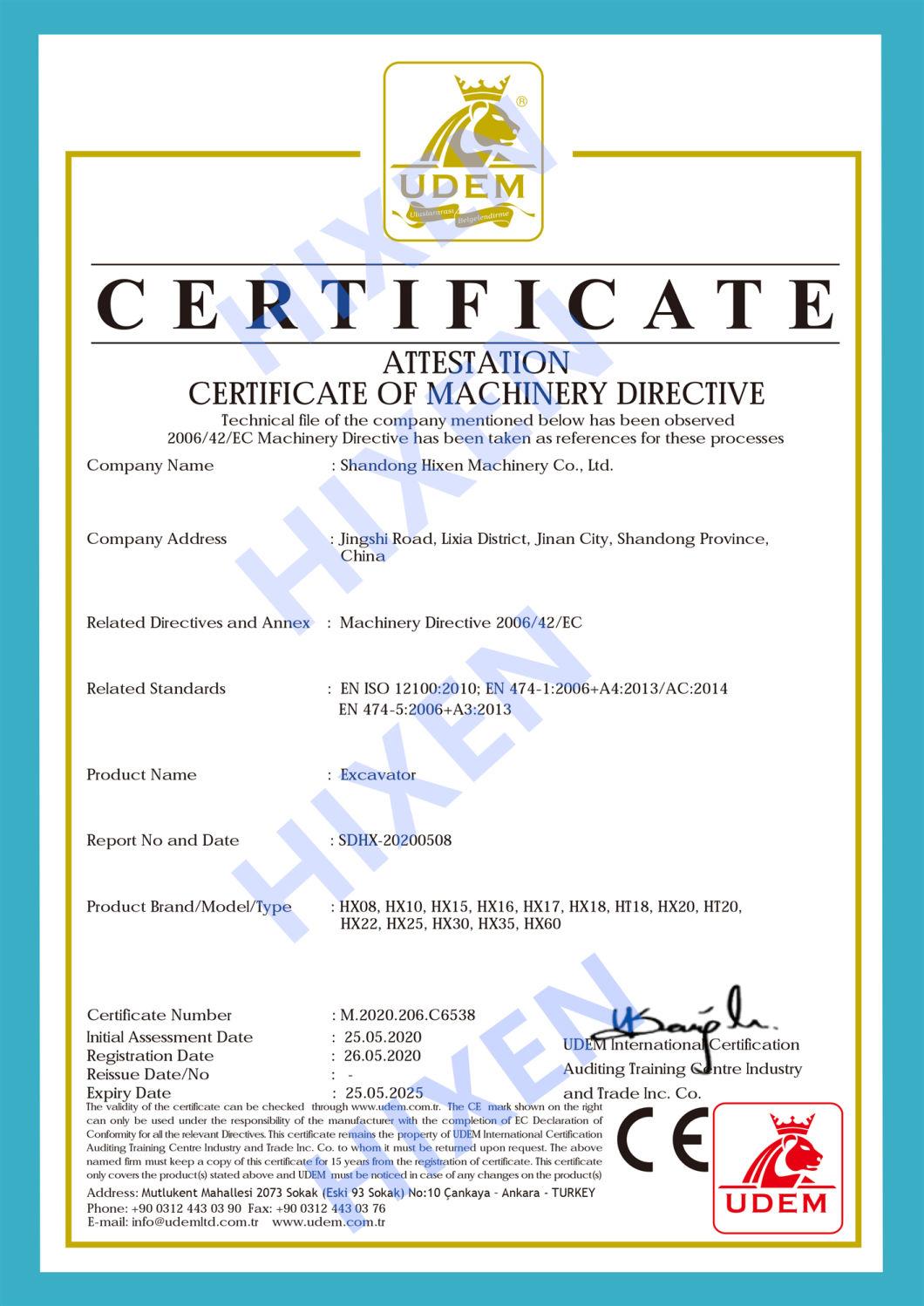

CE Certificate:


Main Features:
1) Small working dimensions, situable for limited space.
2) Convenient operation, compact design, flexible movement.
3) Adapting to various of working conditions.
4) Solid cast iron counterweight improves working stability.
5) Multi-purpose such as: Excavation, crushing, bulldozing, drilling, grabbing




Specificaiton

Model	HX16	HX18	HX20	HX22	HX25
Machine weight	1550 Kg	1800 Kg	1950 Kg	2150 Kg	2300 Kg
Bucket capacity	0.05m³	0.06m³	0.08m³	0.1m³	0.1m³
Engine power	18.1KW	18.4KW	22.1KW	22.1KW	22.1KW
Climbing gradient	30°	30°	30°	30°	30°
Walking speed	2.7Km/h	2.7Km/h	3Km/h	3Km/h	3Km/h
Total length	2710 mm	3600 mm	3600 mm	3600 mm	3600 mm
Total width	1000 mm	1200 mm	1300 mm	1300 mm	1300 mm
Total height	2150 mm	2250 mm	2300 mm	2300 mm	2300 mm
Platform width	1000 mm	1080 mm	1200 mm	1200 mm	1200 mm
Platform clearance to ground	760 mm	810 mm	810 mm	810 mm	810 mm
Maximum digging height	3150 mm	3240 mm	3300 mm	3400 mm	3400 mm
Maximum dumping height	1600 mm	2155 mm	2200 mm	2200 mm	2200 mm
Maximum digging depth	1900 mm	2000 mm	2200 mm	2200 mm	2200 mm
Maximum digging radius	3700 mm	3920 mm	4200 mm	4500 mm	4500 mm
Maximum digging height radius	2900 mm	3800 mm	3800 mm	3800 mm	4500 mm

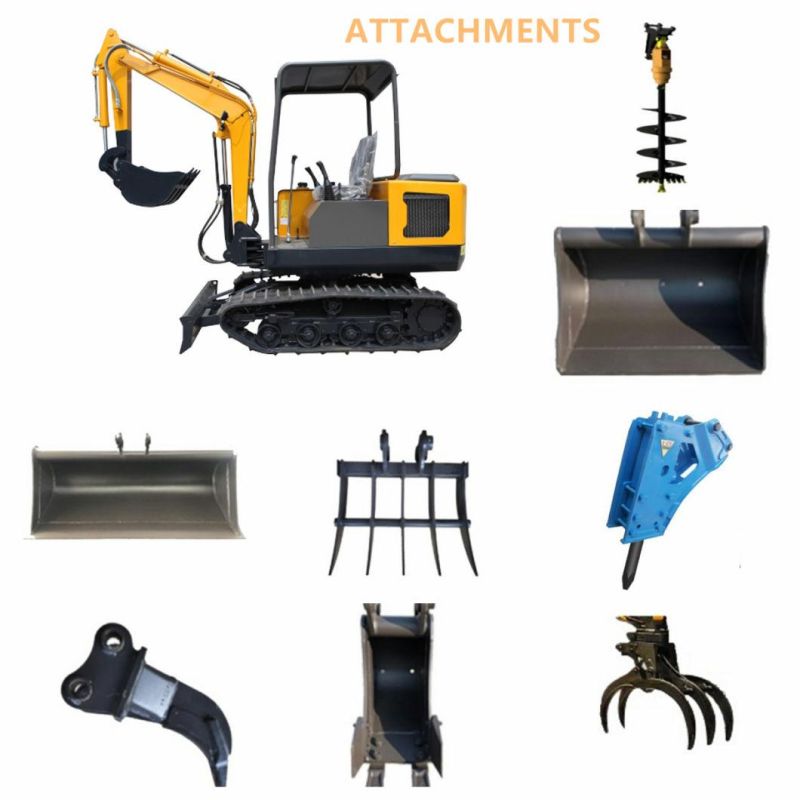

Optional attachments
HIXEN mini crawler excavator is equipped with the backup hydraulic oil pipeline, which a lot of tools can be fitted into.
It mainly includes but not limited the following tools: breaking hammer, auger, rake, grapple, fork, bucket etc.

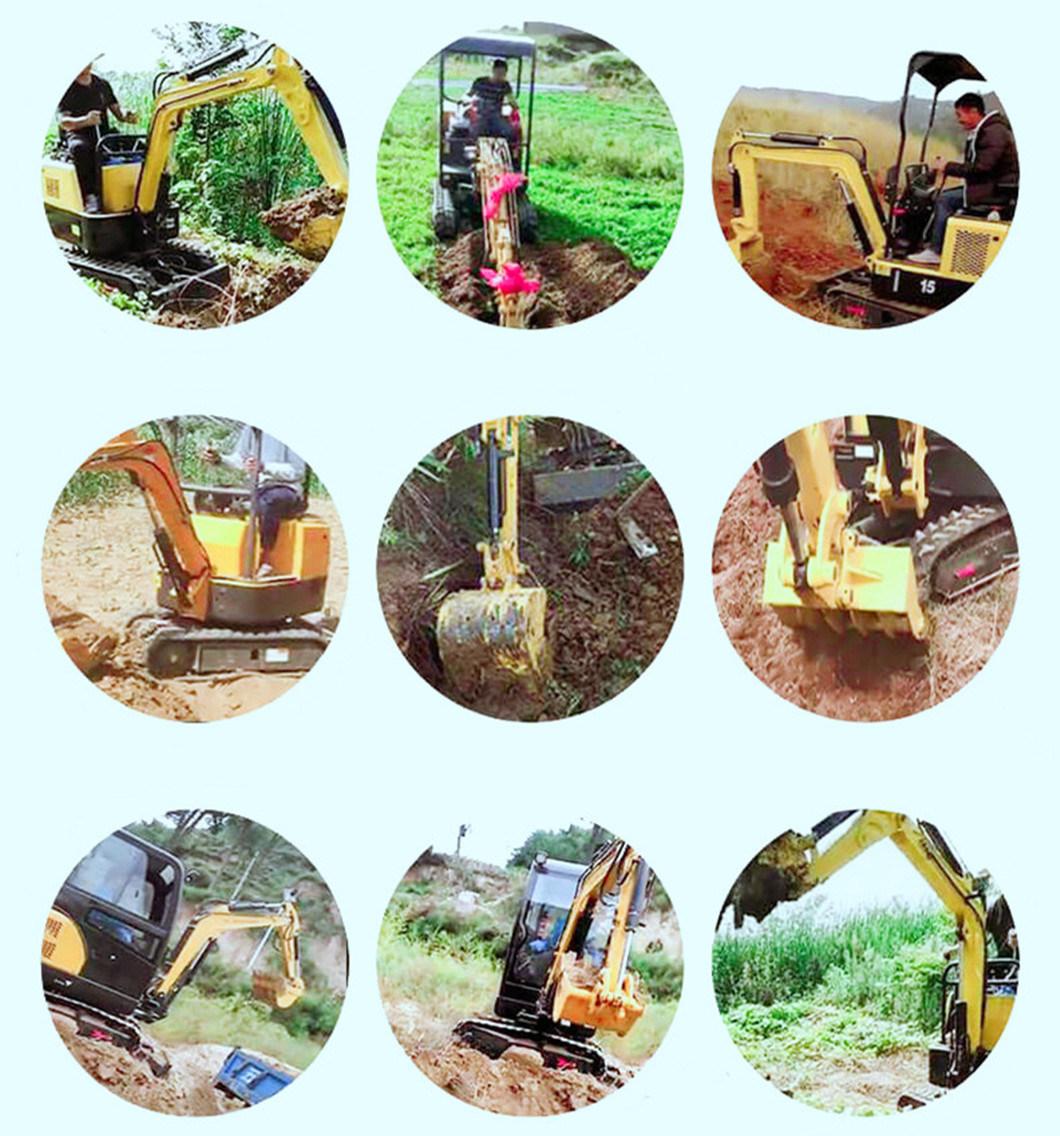

Applications:
1) Ditching and digging such as: Cable trench, water pipeline, oil and gas pipeline etc.
2) Exploitation of new land.
3) Municipal works such as landscaping.
4) Construction works such as road engineering.
5) Farming and greenhouse for trenching and digging.
6) Mine for loading and unloading.

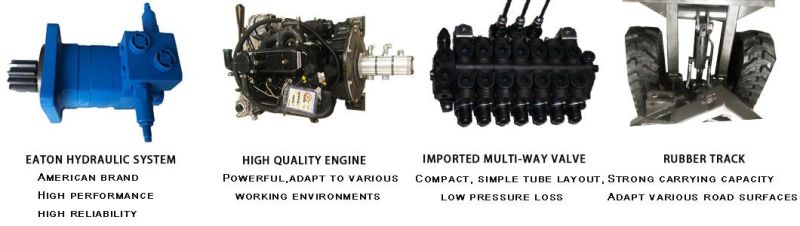

>>Main Components

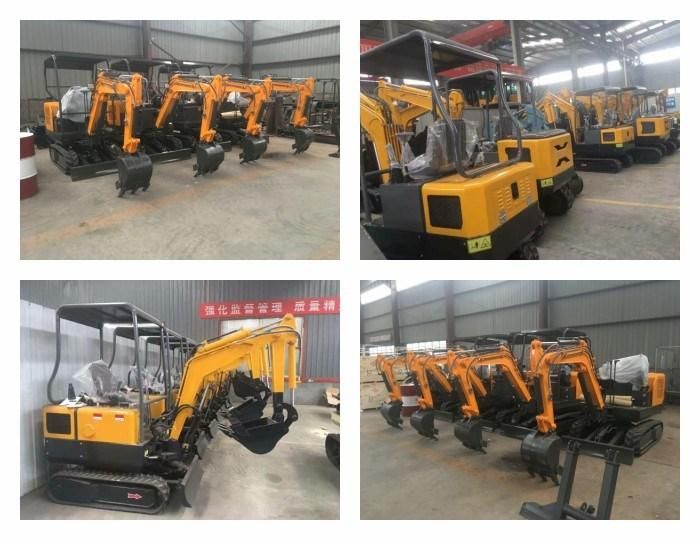

>>About HIXEN

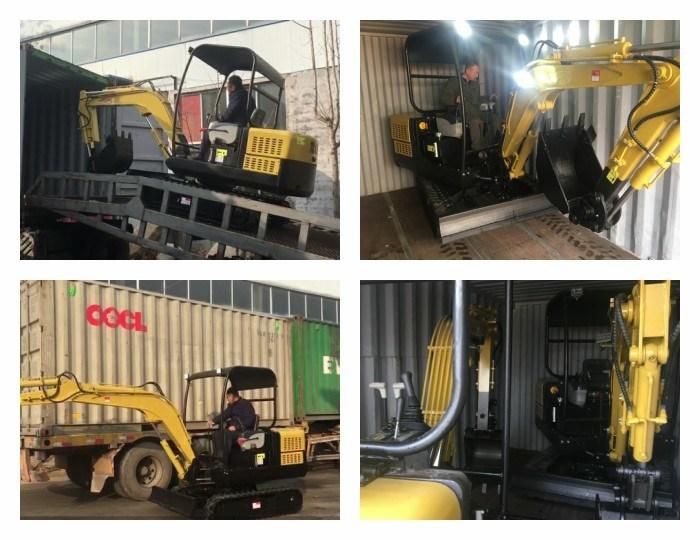

>>Packing&Delivery
Hixen adopt the standard export packing, and can also pack the products according to clients' require.
For nude packing inside the container, we ensure the goods fastened tightly with the container, where will be no sliding or crushing.
We can also packed the container into the wooden box for better all around protection.

 >> FAQ:

Q1. What is the delivery period?
 After receiving the initial payment, the goods will be ready for delivery within 5 days. The rest time depends on the distance and transport method which need to be negotiated.

Q2. What is the payment terms can you accept?
 30% initial payment, 70% balance payment when the goods are ready for delivery by T/T.

Q3. How long is the product guarantee?
 We provide one year quality guarantee.

Q4. What kind of service could you provide?
 1) Pre-sale service: we could assist you finding the suitable equipment according to your requirement.
 2) On-sale service: we strictly follow the commercial rules, contract signing, following the production process, controlling the goods quality, tracking the goods delivery, guaranteeing you receive the qualified goods safely.
 3)After-sale service: we provide some consumables with the equipment;
  We have operation manual for instructing the basic installation and operation; video guidance for trouble shooting; engineers ready for field maintenance and repairing when necessary.

Q5. Can we have the special order like specification change, logo making?
Yes, we accept the customization. We can make it clear in the contract and then our technical start design and production as per your requirement.

For more questions, please feel free to contact us.
We sincerely welcome all friends paying visits to us and reach a mutual success!
