Large Capacity 240m3/H Ready Concrete Batching Plant From China

Shanghai Super-Above Industry Holdings Co., Ltd.
  • Shotcrete Type：Wet
  • Machining Process：Vibrating Mixing

Base Info

  • Model NO.：sx20
  • Structure：Spiral Type
  • Productivity：240m3,H
  • Feeding Height：1370mm
  • Vibrating Amplitude：1.2mm
  • Certification：ISO9001: 2000, CE
  • Condition：New
  • Color：Yellow
  • Air Compressor：3kw
  • Electromagnetism Valve：1
  • Drawbar Pin：1
  • Batching Control Meter：Made in China
  • Circuit Breaker：Delixi
  • Connecting Cable and Accessories：Made in China
  • Cement Silo：100t,150t,200t,300t
  • Cement Screw：φ219*8
  • Hoisting Mixer System：Discharge Height 4.2m
  • Aggregate Hoisting and Measuring System：Made in China
  • Aggregate Feeding Type：Belt Conveying Type
  • Concrete Mixer Power：90 - 215.5kw
  • Name：Ready Mix Concrete Plant
  • Control System：Siemens PLC+PC
  • After-Sales Service Provided：Field Installation, Commissioning and Training
  • Transport Package：Naked in Container
  • Specification：CE
  • Trademark：Super-above
  • Origin：Jiangsu, China
  • HS Code：8474310000
  • Production Capacity：5000PC,Year

Description

ModelHZS240/240Production in theory(m3/h)240Mixing engineJS4000Measuring scope and precisionStone(kg)5000±2%Cobble(kg)5000±2%Cement(kg)2400±1%Mingled materials(kg)1200±1%Water(kg)1000±1%Additives(kg)100±1%Distributing plant/containerContainer quantity,container capacity,and installed form of distributing plant and mixing towers varying with customers demands.Powder tank systemPowder tank volume and quantity,and configuration of powder tank accessories varying with customers demands.General power(kw)220Discharging height(m)3.8Large Capacity 240m3/H Ready Concrete Batching Plant From China
Large Capacity 240m3/H Ready Concrete Batching Plant From China
Large Capacity 240m3/H Ready Concrete Batching Plant From China

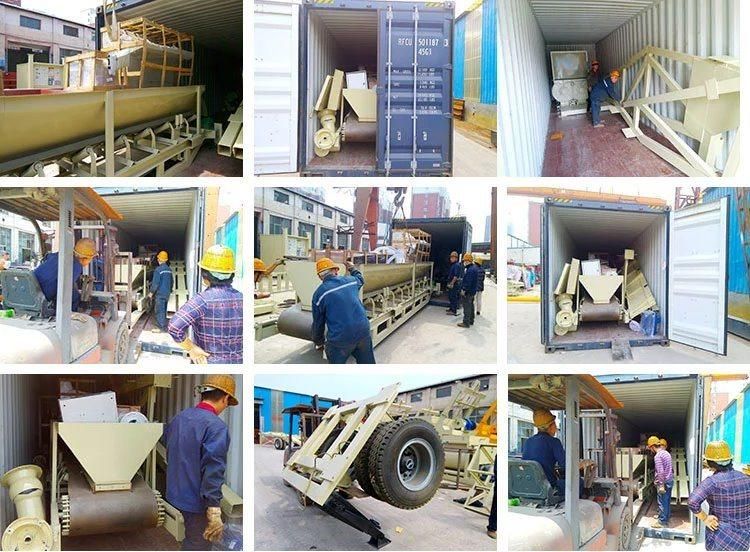

Packing & Delivery
Large Capacity 240m3/H Ready Concrete Batching Plant From China

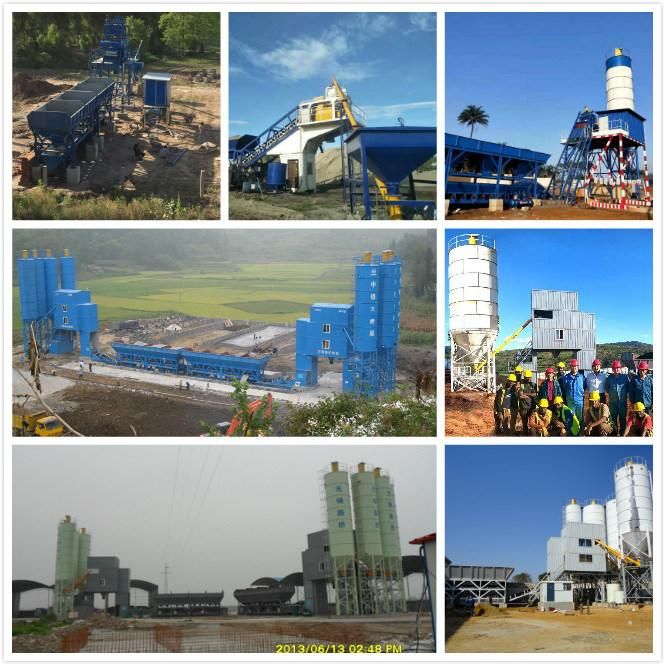

Our Cases
Large Capacity 240m3/H Ready Concrete Batching Plant From China
Large Capacity 240m3/H Ready Concrete Batching Plant From China
Large Capacity 240m3/H Ready Concrete Batching Plant From China
Large Capacity 240m3/H Ready Concrete Batching Plant From China
