• Model NO.：XS143J
• Travel Speed：0-12 Km,H
• Centrifugal Force：40KN
• Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Drum Width：2130mm
• Vibration Frequency(Low/High)：28,35 Hz
• Excitation Force(High/Low)：305,225 Kn
• Engine Power：110kw
• Transport Package：Container,Roro,Bulk
• Specification：14000kg
• Origin：China
• HS Code：8429401900
• Production Capacity：50units,Month

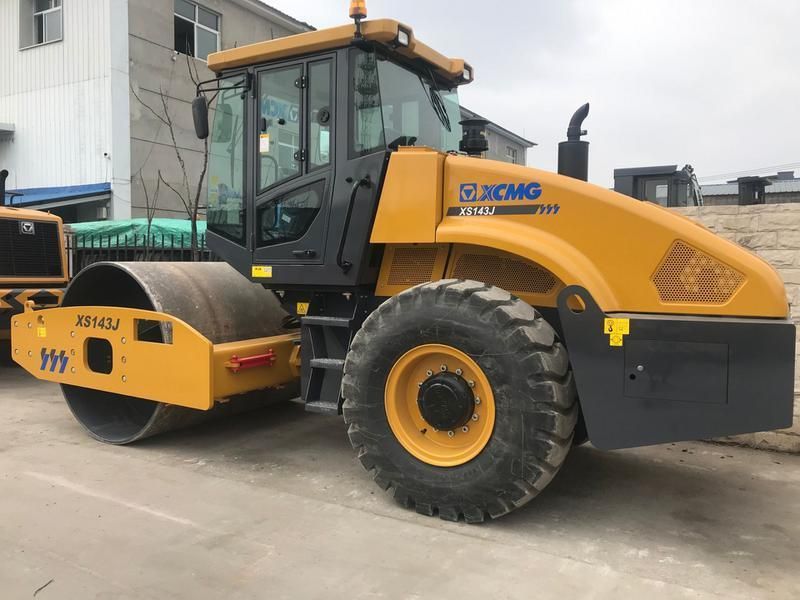

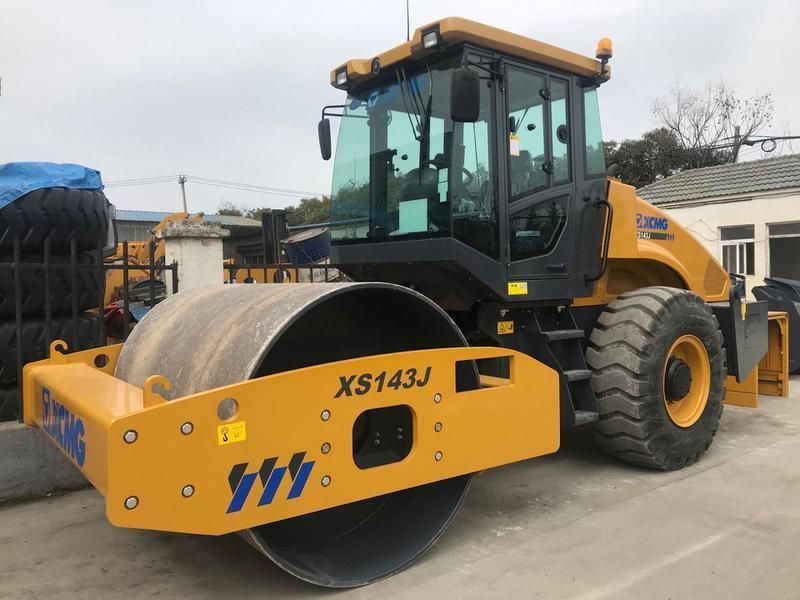

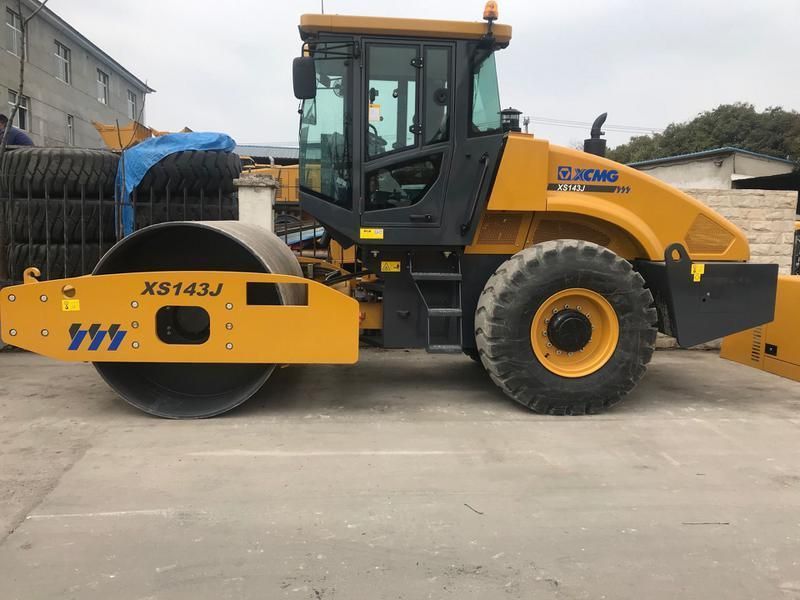

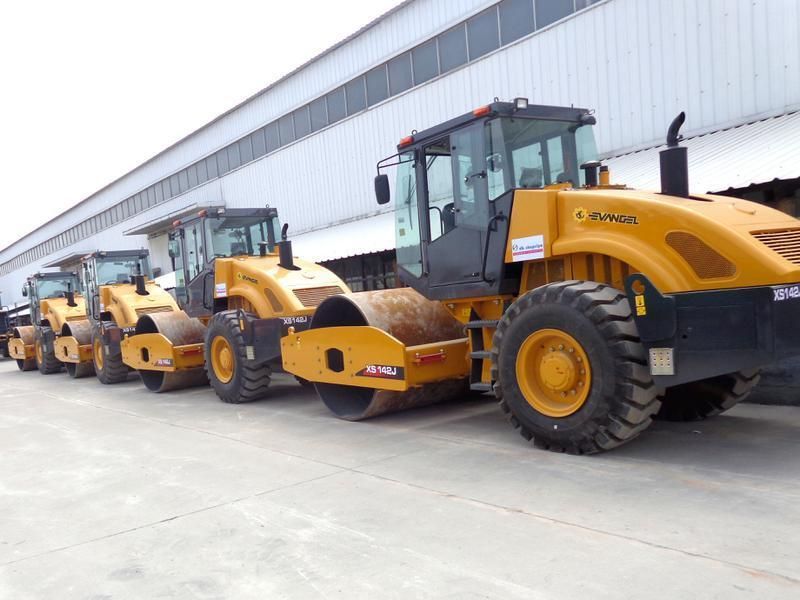

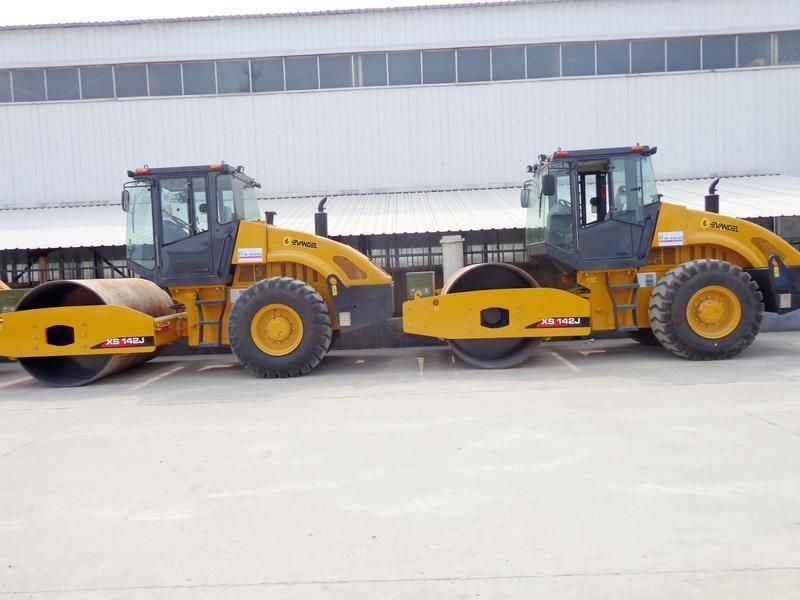

Product Parameters TypeUnitXS143Operating weightkg14000Load on front drumkg8200Load on rear wheelskg5800Drum widthmm2130Static linear loadN/cm385Vibration frequency(Low/High)Hz28/35Nominal amplitude(High/Low)mm1.86/0.88Excitation force(High/Low)KN305/225Travel speedkm/h0~12Steering angle°±33Swing angle°±10Theoretical  gradeability%55Min. external turning radiusmm6415Engine model Cummins B5.9Engine powerkw110Rated engine speedr/min2200Engine oil consumptiong/kW.h232Hydraulic oil tank capacityL240Fuel tank capacityL240 Detailed Photos
