Liugong 22 Ton 1cbm Crawler Digging Excavators 922e
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：Online Service
- Warranty：1 Year
- Type：Crawler Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
Base Info
- Model NO.：922E
- Bucket Capacity：0.5~1.0m³
- Size：Medium-Sized
- Certification：CE, ISO9001: 2000
- Condition：New
- Operating Weight (Kg)：22000kg
- Maximum Travel Speed (High)：5.3km,H
- Arm Breakout Force：97kn
- Bucket Breakout Force：140kn
- Digging Reach：9870mm
- Engine Power：150HP
- Specification：9570*2990*3140mm
- Origin：China
- HS Code：8401200000
- Production Capacity：200
Description
Operating weight with cab
22000 kg
Engine power
124 kW (166hp) @ 2050 rpm
Bucket capacity
0.9 / 0.95 / 1.0 / 1.1 / 1.2 m³
Maximum travel speed (High)
5.3 km/h
Maximum travel speed (Low)
3.0 km/h
Maximum swing speed
10.5 rpm
Arm breakout force
97 kN
Arm breakout force Power boost
105 kN
Bucket breakout force
140 kN
Bucket breakout force Power boost
152.5 kN
Shipping length
9570 mm
Shipping width
2990 mm
Shipping height
3140 mm
Track shoe width (std)
600 mm
Boom
5710 mm
Arm
2915 mm
Digging reach
9870 mm
Digging reach on ground
9685 mm
Digging depth
6562 mm
Vertical wall digging depth
5080 mm
Cutting height
9945 mm
Dumping height
7170 mm
Minimum front swing radius
3090 mm
Model
C QSB7
Emission
EPA Tier 3 / EU Stage IIIA
System maximum flow
2×224 L/min (2x59 gal/min)
System pressure
34.3 MPa

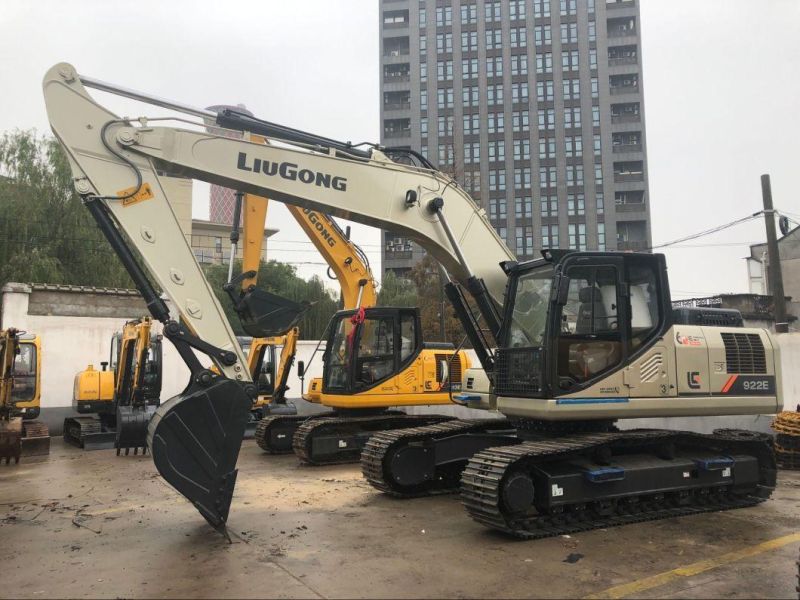

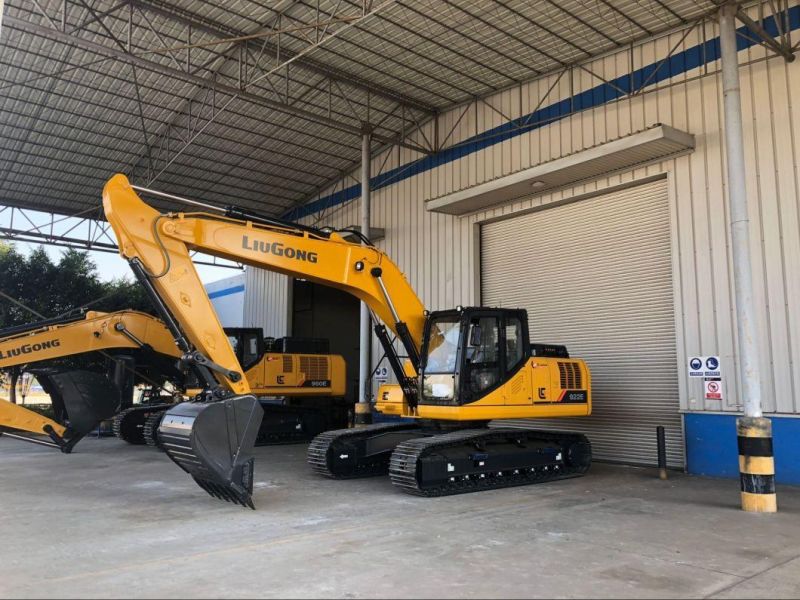

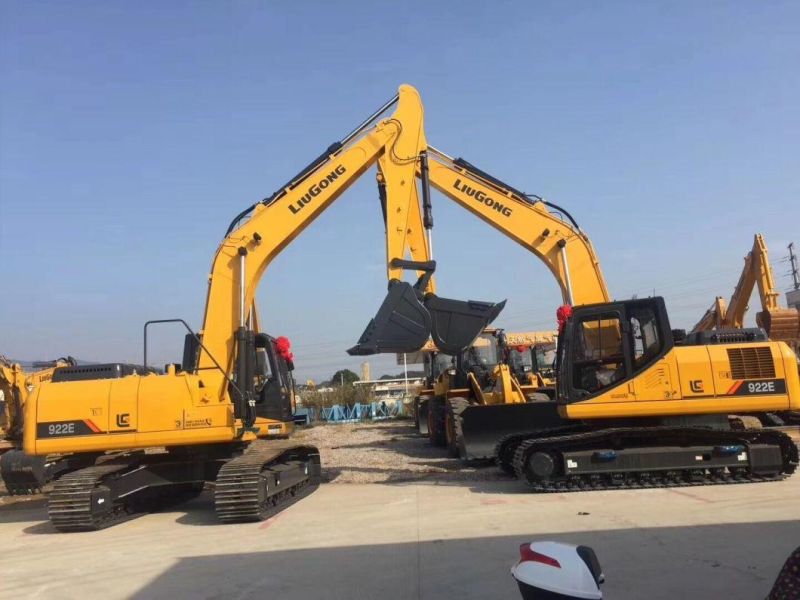

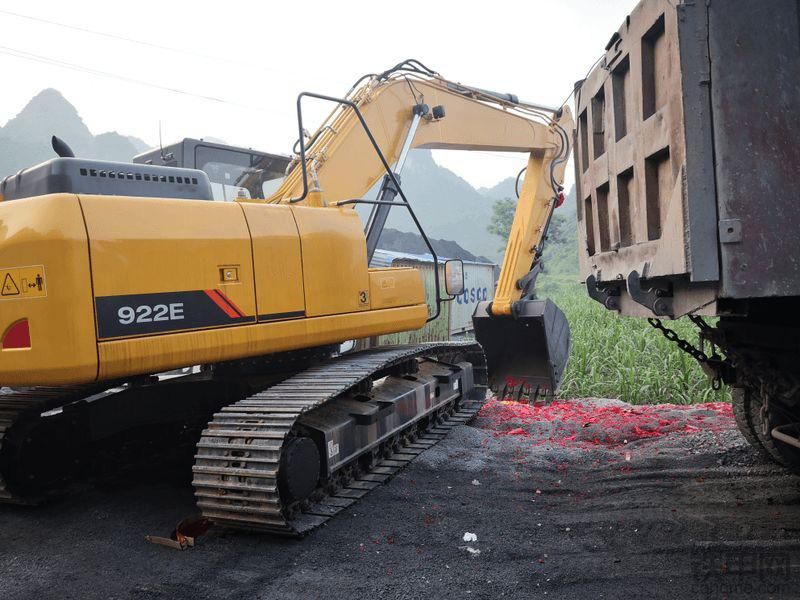

Product Show:
