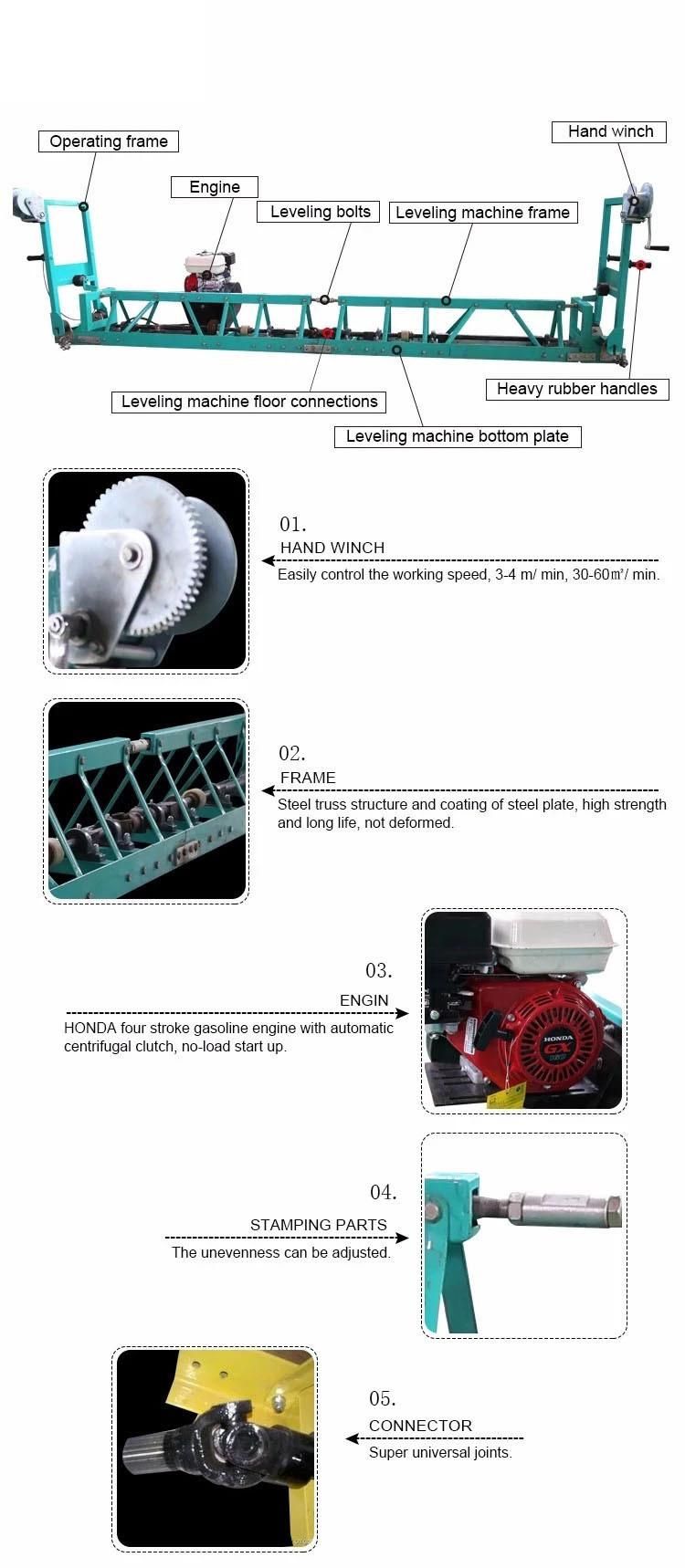

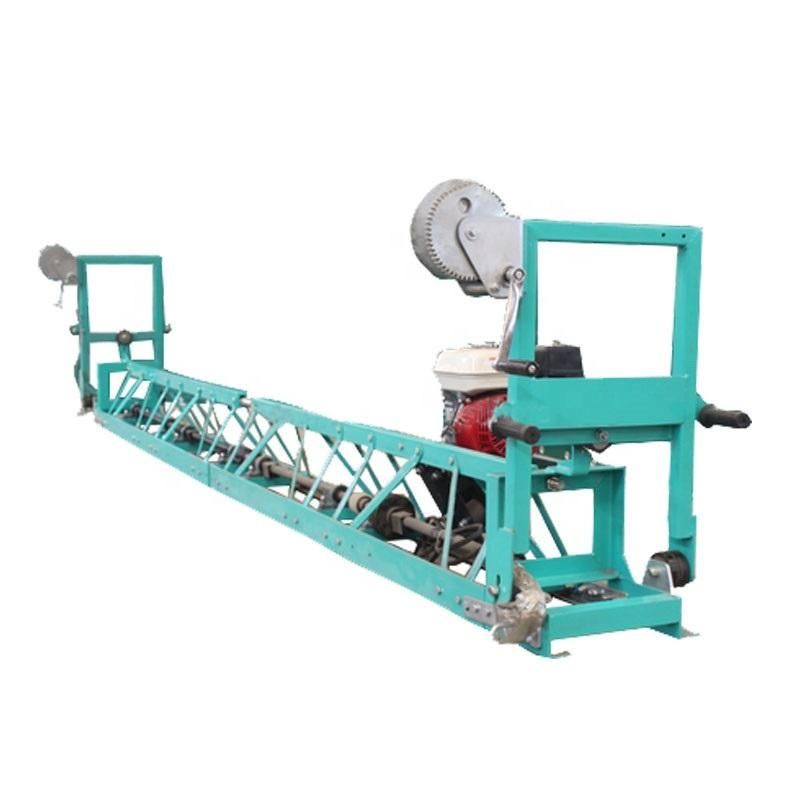

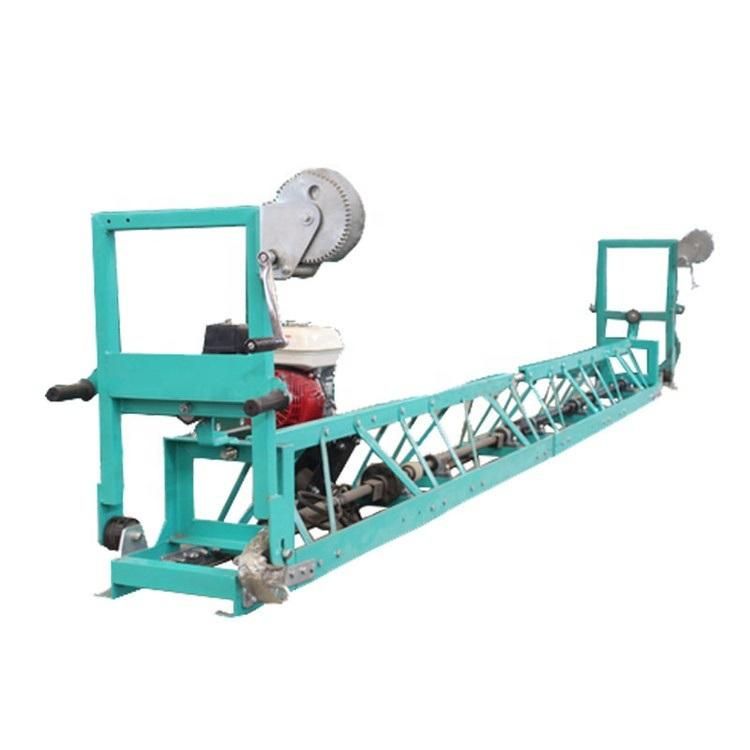

0-16m Gasoline Concrete Leveling Machine Vibrating Truss Screed for Road Surface Finishing

Ningbo Ace Machinery Co., Ltd.
  • Product Name：Concrete Screeds for Sale
  • Engine：Honda Gx160
  • Power：5.5HP
  • Working Width：405mm
  • Working Depth：260mm
  • Frequency：70Hz

Base Info

  • Model NO.：ZP55
  • Transport Package：Carton
  • Specification：3-16M
  • Trademark：ACE
  • Origin：Ningbo, China
  • HS Code：84306100
  • Production Capacity：3000 PCS,Year

Description

ModelZP55ZP90ZP130Compaction:Nominal amplitude0.6mmVibrating Frequency:70HzExciting Force11KNWorking Depth260mmEngine:Engine ModelHONDA GX160HONDA GX270HONDA GX390Engine typeGasoline engine,air cooled,4-stroke,OHV, Single CylinderPower5.5HP9.0HP13.0HPFuel tank volume3.6L6L6.5LLubricant0.6L1.1L1.1LFuel consumption230g/hp-h230g/hp-h230g/hp-hDimension:Working Width (mm)405mm405mm405mmStandard  Single-LENGTH(mtr )405*500mm,   405*1000mm,  405*2000mmLength (mm)6000mm(MAX)9000mm(MAX)12000mm(MAX)


Note: The chosen length of machine should be 500mm longer than real construction width.
