• Model NO.：ZN-50-70HA,HB,HC,HD
• Vibrating Amplitude：1.2mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Black,Blue,Red ,Green, Yellow
• Voltage：220,110V
• Frequency：50,60Hz
• Material Body：Iron Smooth
• Size：39*28*30cm
• Transport Package：Carton Box
• Trademark：Maxmach
• Origin：Zhejiang, China
• HS Code：8431499900
• Production Capacity：50000sets,Month

Basic Info.

Model NO. ZN-50-70HA/HB/HC/HD Vibrating Amplitude 1.2mm Certification ISO9001: 2000, CE Condition New Color Black/Blue/Red /Green/ Yellow Voltage 220/110V Frequency 50/60Hz Material Body Iron Smooth Size 39*28*30cm Transport Package Carton Box Trademark Maxmach Origin Zhejiang, China HS Code 8431499900 Production Capacity 50000sets/Month

Product Description

Product Introduction:
The working part of the vibrator is a rod-shaped hollow cylinder with an eccentric vibrator inside, which is rotated at high speed under the motor to generate high-frequency micro-vibration. The vibration frequency can reach 12000~15000 times/min.

Principle:
There is an electromagnetic coil in the electromagnetic vibrator, through the electromagnetic
The working principle of the vibrator is shown in the figure
The working principle of the vibrator is shown in the figure
The current of the coil is a pulse current that is half-wave rectified. In the positive half wave, the current passes, the electromagnet has suction, and the vibrating plate is attracted; in the negative half wave, no current passes, the electromagnet suction disappears, and the vibrating plate returns to the original position due to the action of the spring, and gives The coal channel is connected to the vibrating plate, so that under the action of the electromagnetic vibrator, the coal channel is continuously vibrated.


Features:
1.Convenient and comfortable to operate due to the design of the motor and light weight
2.Double-insulation for the motor enhance the safe operation greatly
3.Working with the single phase power supply, very suitable for individual use.
4.Always easy and convenience to handle and operation.

Parameter:

Model	Power(HP)	Voltage(V)	Frequency(Hz)	G.W.(kg)	Material Body	Size(cm)
ZN-50HA	2.0	220/110	50/60	14	Iron Smooth	39*28*30
ZN-70HA	3.0	220/110	50/60	16	Iron Smooth	39*28*30
ZN-50HB	2.0	220/110	50/60	14	Iron Smooth	39*28*30
ZN-70HB	3.0	220/110	50/60	16	Iron Smooth	39*28*30
ZN-50HC	2.0	220/110	50/60	17.5	Iron Smooth	39*28*30
ZN-70HC	3.0	220/110	50/60	19.5	Iron Smooth	39*28*30
ZN-50HD	2.0	220/110	50/60	16.5	Iron Smooth	39*28*30
ZN-70HD	3.0	220/110	50/60	18.5	Iron Smooth	39*28*30

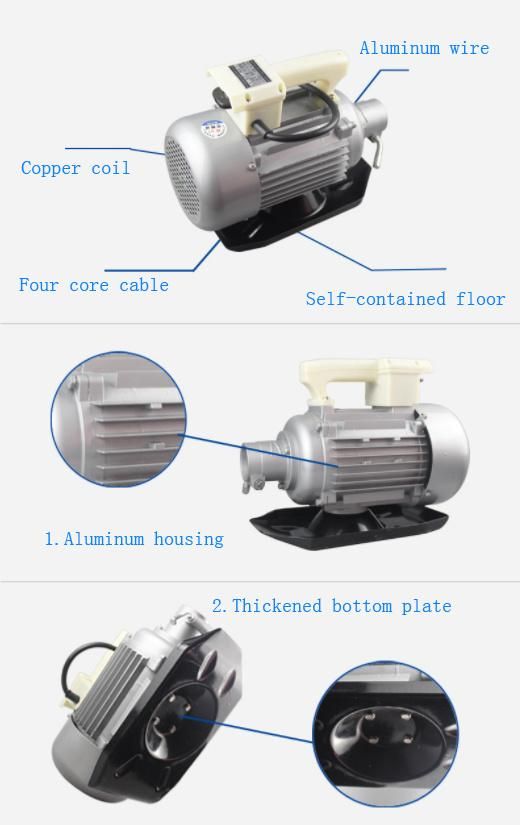

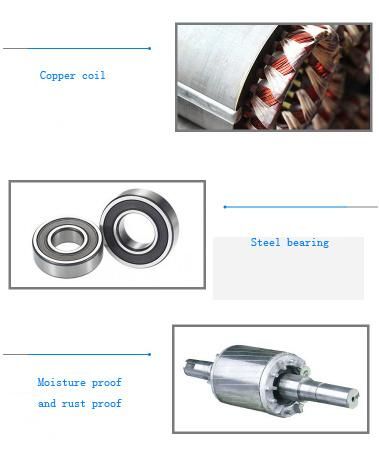

Details:
