• Model NO.：LG938
• Walking Mode：Wheeled
• Type：Small Loader
• Product Name：Wheel Loader
• Type of Product：Front End Wheel Loader
• Product Design：Compact Wheel Loader
• Product Option：Backhoe Wheel Loader
• Product Size：Mini Wheel Loader
• Product Model：LG938 Mini Loader
• Product Application：Multi-Function of Wheelloader, Backhoe Loader
• Warranty Parts：Replace for Client for Free.
• Product Series：LG Series Wheel Loaders.
• Other Series：T Series and L Series Wheel Loaders
• Certificates：CE Certificate of Mini Loader
• Transport Package：2 Units in One 40 Hq.
• Specification：6000X2050X2950mm
• Trademark：LuGong
• Origin：China
• HS Code：854921
• Production Capacity：4000 Pieces , Year

Front End Loader Main technical parametersBucket capacity1.0m³Rated load2000kgMachine weight4500kgOverall dimension (mm)6250x2020x2950Wheel base2530mmWheel track1570mmBucket width2000mmMax. dumping height3500mmMax. dumping distance700mmTurning radius4500mmWorking hydraulic systemOperating typeMechanical single joystickLifting time5SFalling time4SEngineModelsida 4102 turboPatternIn-line, 4 cylinderRated power / speed76KW/2400Weight320kgtransmissionTypeHydraulic torque converterPatternAutomaticGear shiftDouble H/LAxleAWD, LG2.0 hub reductionBraking systemService brakeAir hydraulic disc brakeParking brakeHand brakeTyreTyre16/70-20

SPECIAL FEATURES OF LG938 MINI LOADER

1. The exclusive patent Axle reduces fuel consumption

Exclusive patent brand new design axle. Fully release the power of the diesel engine, reduce fuel consumption, and achieve performance jumps.

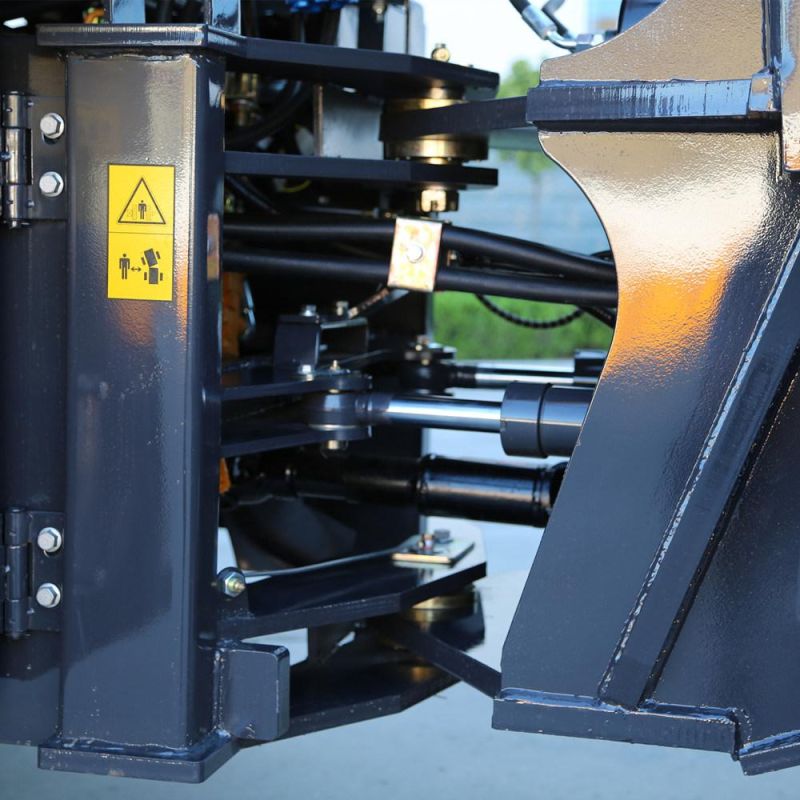

2.The special articulation system makes stronger structure

Unique patented three-layer hinged design. The structure is stronger, the control is more flexible, the steering is more labor-saving, and the service life of the frame and the pin is greatly improved.

3.The updated back hood brings better heat dissipation

The new hood design is made by a drawing and stamping process, focusing on performance and structural strength.

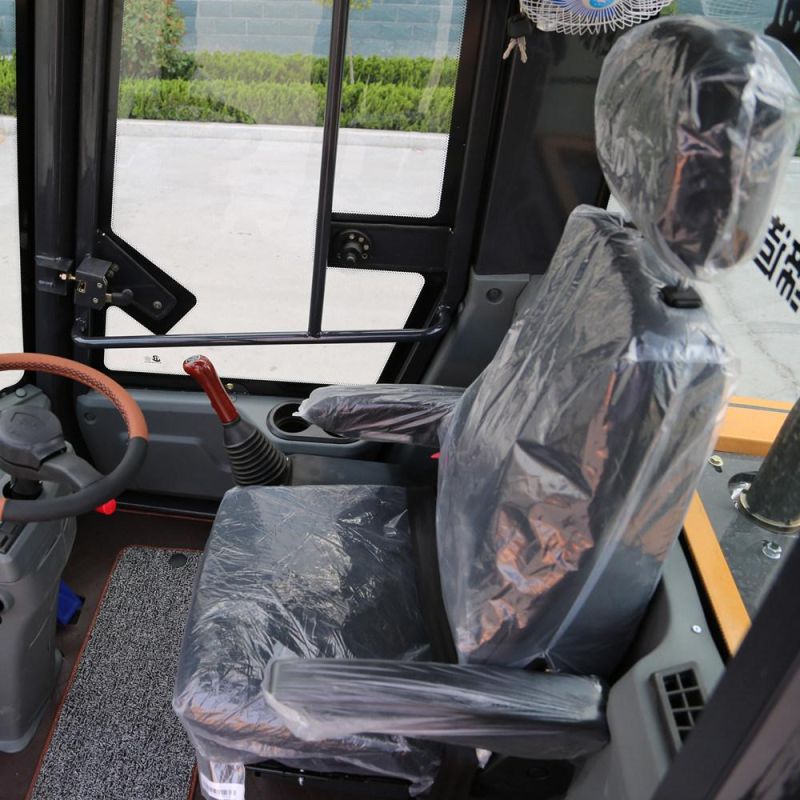

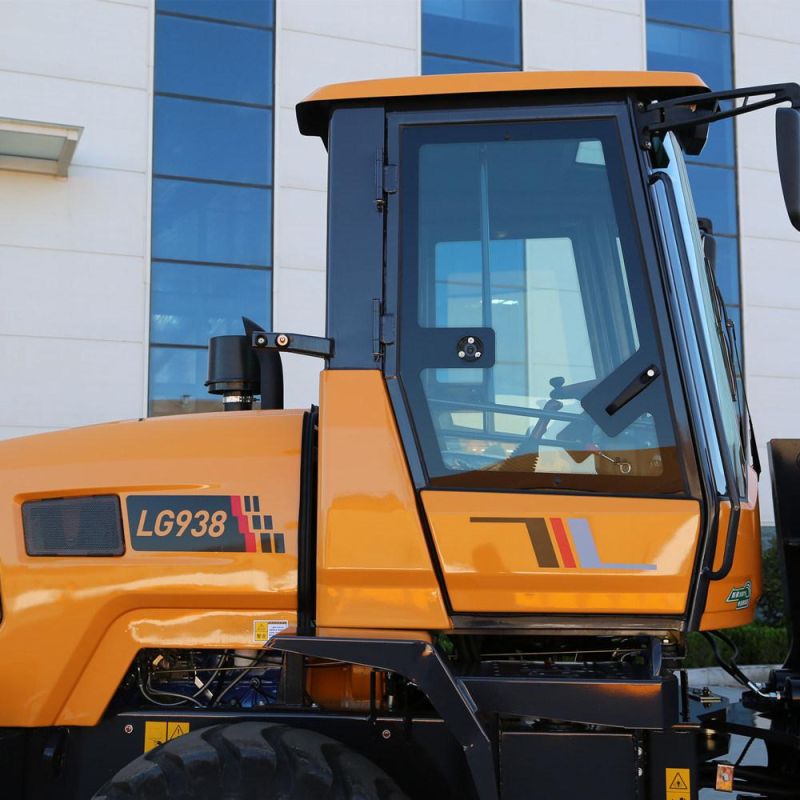

4.The new designed Cab makes comfortable experience

International standard frame structure cab. The entire curved windshield provides a wider field of vision. Comfortable luxurious seats and large driving space bring a more comfortable driving experience.

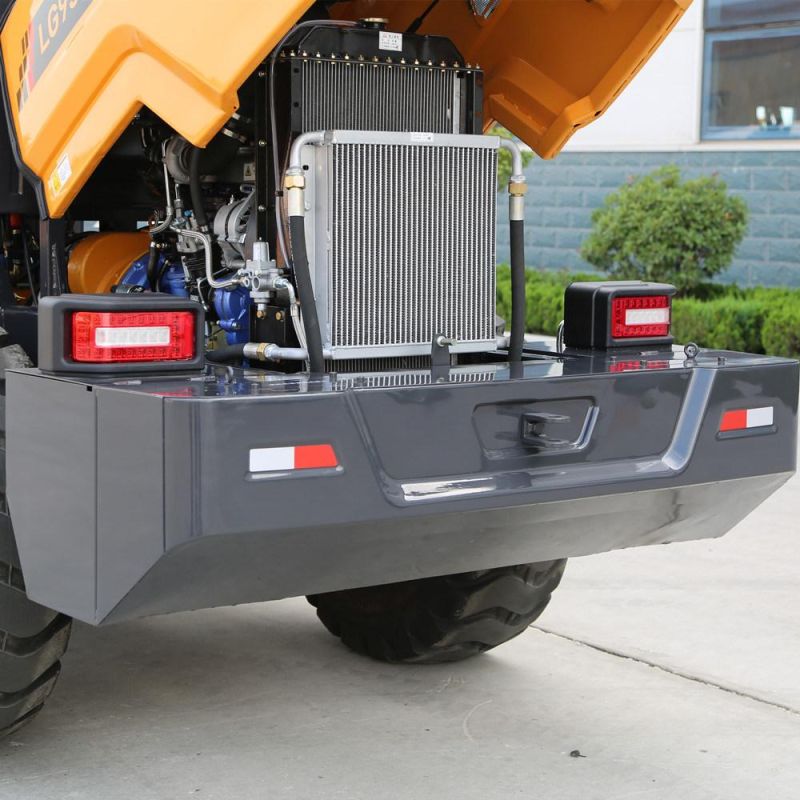

5.The improved radiator brings good heat dissipation result

The radiator uses 32 mm double-row radiating pipes, and large hole radiating grid to increase the heat dissipation area, better effects.

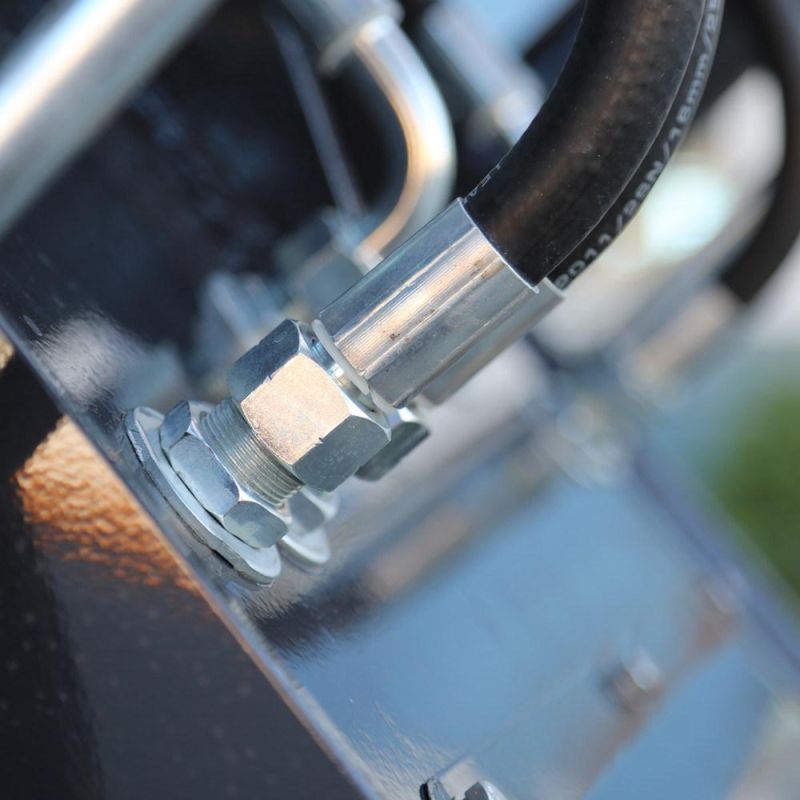

6.The special design of pipes prevents hydraulic oil leakage

The welded pipes and hose connectors in Hydraulic system have upgraded to prevent hydraulic oil leakage.
