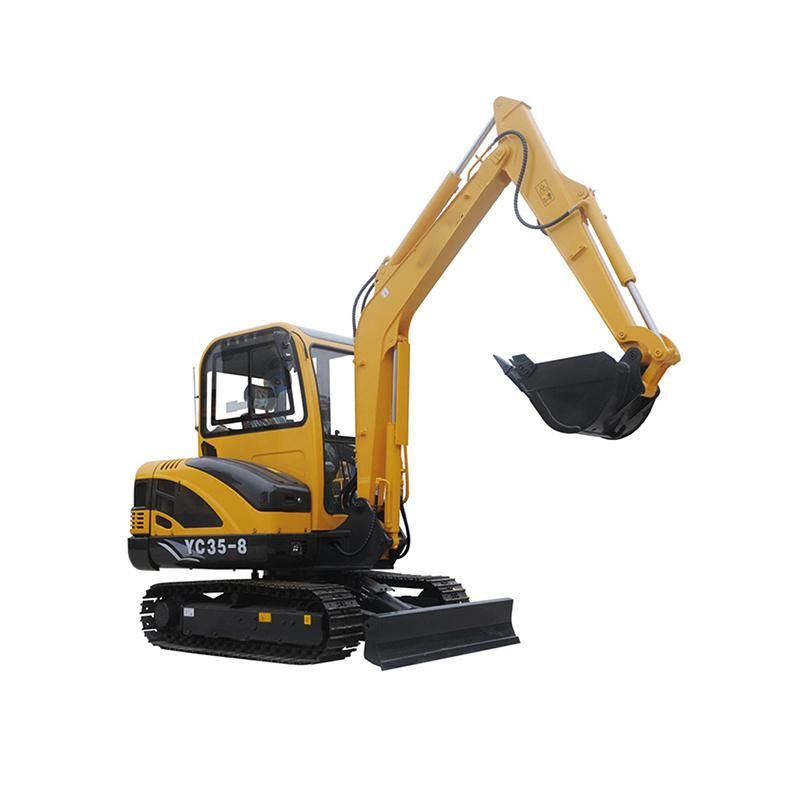

Yuchai Yc35-8 Excavator Mini Crawler Excavator for Sale
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Online Support
- Warranty：1year
- Type：Crawler Excavator
- Usage：Mining Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：YC35-8
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.12cbm
- Size：Small-Scale
- Certification：CE
- Condition：New
- Engine Power：31.2kw
- Transport Package：49*50*2470*1618mm
- Specification：3740kg
- Trademark：YUCHAI
- Origin：China
- Production Capacity：50000PCS,Year
Description
Principle Dimension
Overall Length (trans pos)
4950mm(16'24''in)
Overall Height (trans pos)
2470mm(8'1''in)
Width of Undercarriage
1618mm(5'30''in)
Width Of Track
300mm(1'in)
Maximum Platform Tail Turning Radius
1515mm(4'12''in)
Length Of Track
2100mm(6'11''in)
Sprocket To Idler Centres
1620mm(5'4''in)
Dist. Between Undercarriage And Ground
267mm(0.9'in)
Dist.Between Boom And Ground
1698mm(5'7''in)
Width Of Platform
1494mm(4'11''in)
Dist. Between Platform And Ground
570mm(1'10''in)
Operation Hydraulic Pressure
21Mpa (3045)
Maximum Digging Force
≥22.19 (4990lbs)
Maximum Gradeadility
≥58%(30°)
Travelling Speed
3.4~4.8 km/h (2.1~3mph)
Maximum traction
29KN (6521lbs)
Swing Speed of Platform
11~13rpm
Variable displacement pump capacity
20.8+20.8+7+3.5ml/r (0.0046+0.0046+0.0015+0.0008gallon/r)
Fixed displacement pump capacity
Swing Angularity of the Digging Arm(left/right)
No or 80°/50°
