• Model NO.：SWEA220
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.5~1.0m³
• Size：Medium-Sized
• Certification：ISO9001: 2000, ISO14001
• Condition：New
• Product Name：Hydraulic Undercarriage Pontoon
• Brand：Sinoway
• Pontoon Size：6~10 Meters
• Chain Numbers：2 or 3
• Track Material：Steel
• Optional：Hydraulic Spud Pile
• Manhole：Three
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84294090
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. SWEA220 Drive Type Internal Combustion Drive Bucket Capacity 0.5~1.0m³ Size Medium-Sized Certification ISO9001: 2000, ISO14001 Condition New Product Name Hydraulic Undercarriage Pontoon Brand Sinoway Pontoon Size 6~10 Meters Chain Numbers 2 or 3 Track Material Steel Optional Hydraulic Spud Pile Manhole Three Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84294090 Production Capacity 100 PCS/Month

Product Description

Highlights

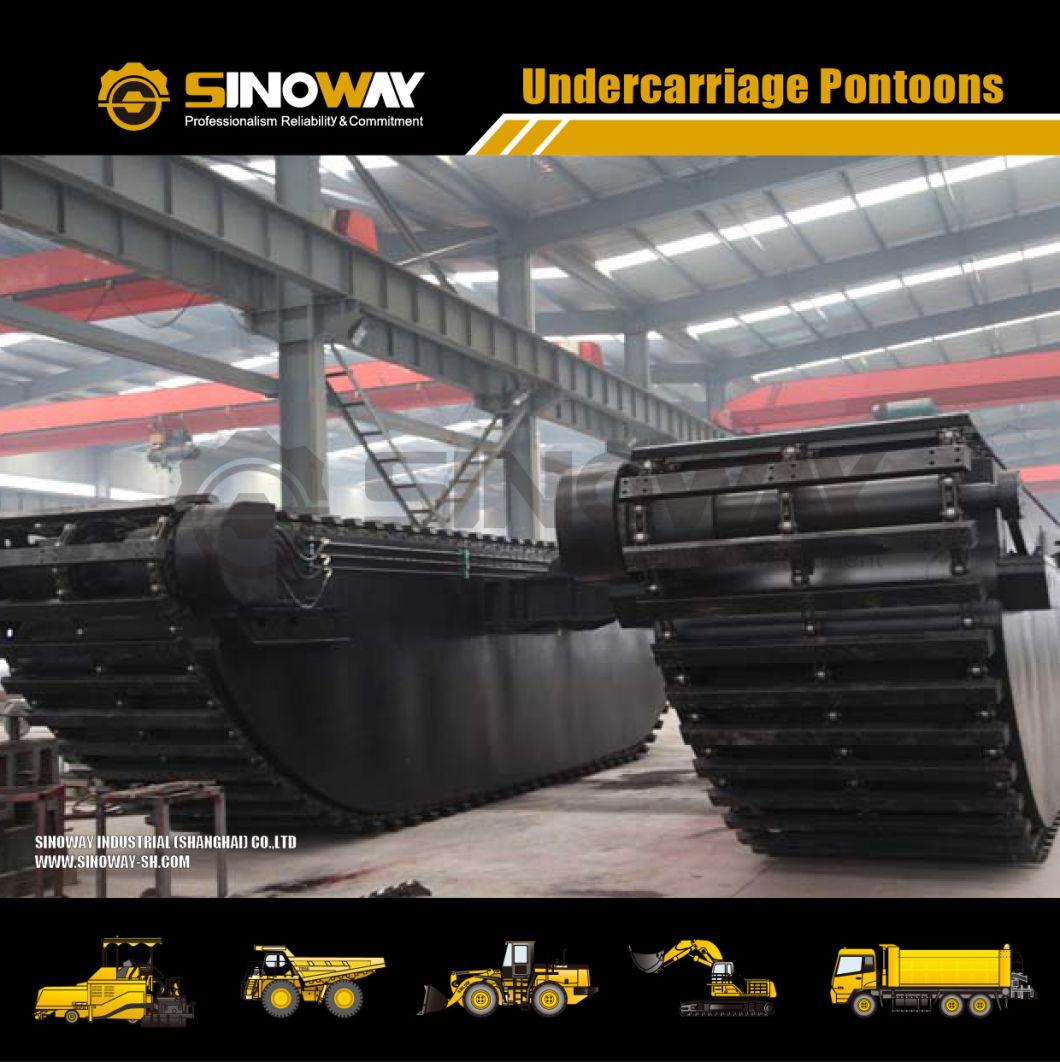

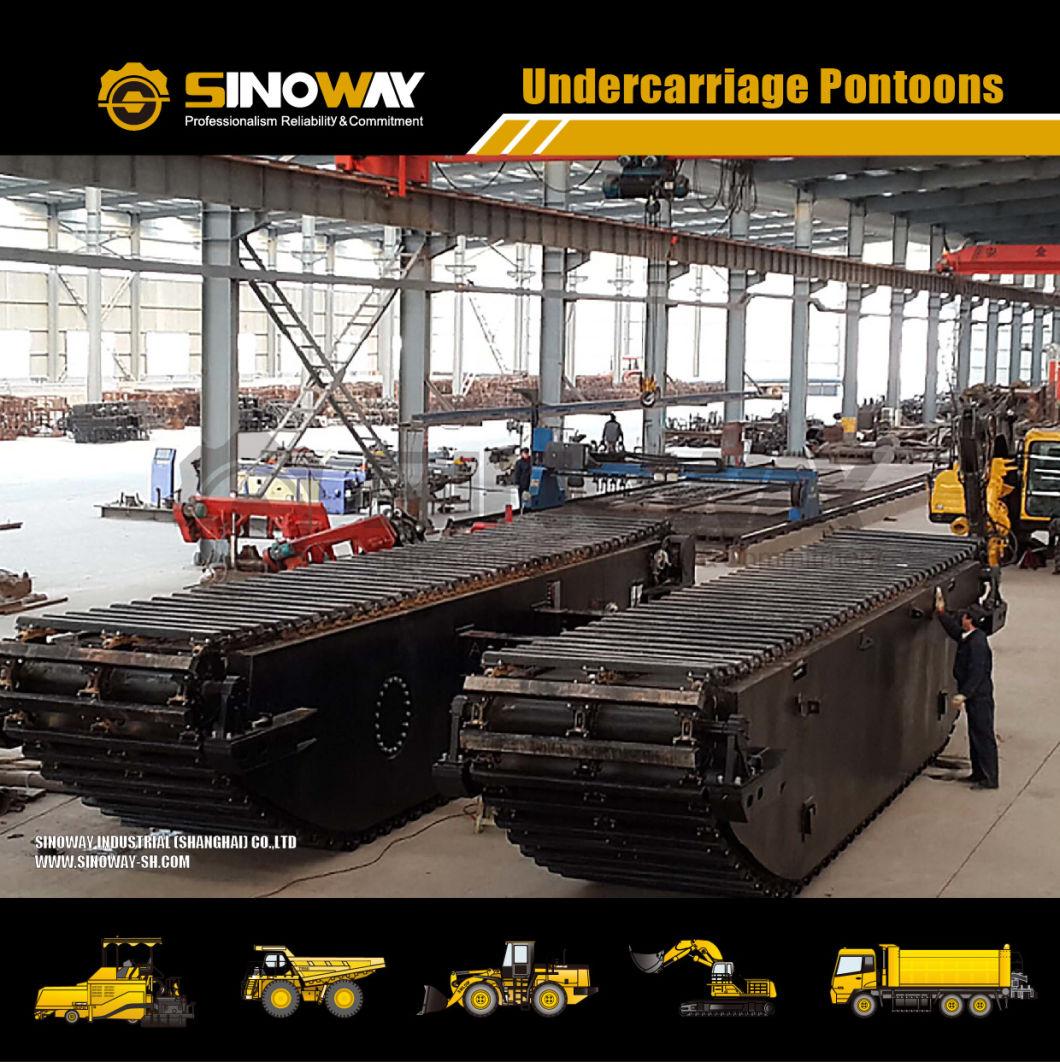

Durable Hydraulic Undercarriage Pontoons
The hydraulic undercarriage pontoons are extremely important to an amphibious excavator, Sinoway is pride of his abundant experience on manufacturing pontoons that last. According to your application requirement and working conditions, we areable to design and produce an amphibious excavator specially for your working area covering swamps, salty land, off-shore, river area and so forth.

Well protected hydraulics
hydraulic hosed are well protected by the full sealed container which minimize the possibility of damage these parts when working in swamp or water area.

Three-piece welding
The pontoons are now welded with three-piece steel sheet structure in stead of normal four-piece, two bent steel plates are connected on the top, thus the eliminating of long welding seam makes the whole pontoon even durable and neater.

Heavy duty chain link and wearproof liner
Sinoway swamp buggy comes with steel track cleats with specially design to against wearing and distortion. The material of the track plates is wear.proof steel plate, with extra toughness, special stud plate structure inside the track cleat to make it strong enough to supporting the pontoons and upper excavator.

Product Show





Specifications

Pontoon	SWPU60	SWPU70	SWPU80	SWPU90	SWPU100
Pontoon length	6 m	7.1 m	8 m	9 m	10.2 m
Pontoon width	1.3 m	1.5 m	1.5 m	1.5 m	1.7 m
Pontoon height	1.4 m	1.5m	1.5 m	1.5 m	1.76 m
Track material	Steel or Aluminum alloy	Steel or Aluminum alloy	Steel or Aluminum alloy	Steel or Aluminum alloy	Steel
Chain numbers	2	2	3	3	3
Extendable system	Extendable as  optional	Extendable as optional	Extendable as optional	Extendable as optional
Matching upper excavator	8 ton (CAT 308)	13~15ton (CAT 311,312,314)	20~23ton (CAT 320)	24~26ton (CAT 321,324)	25~28ton (CAT 324,329)

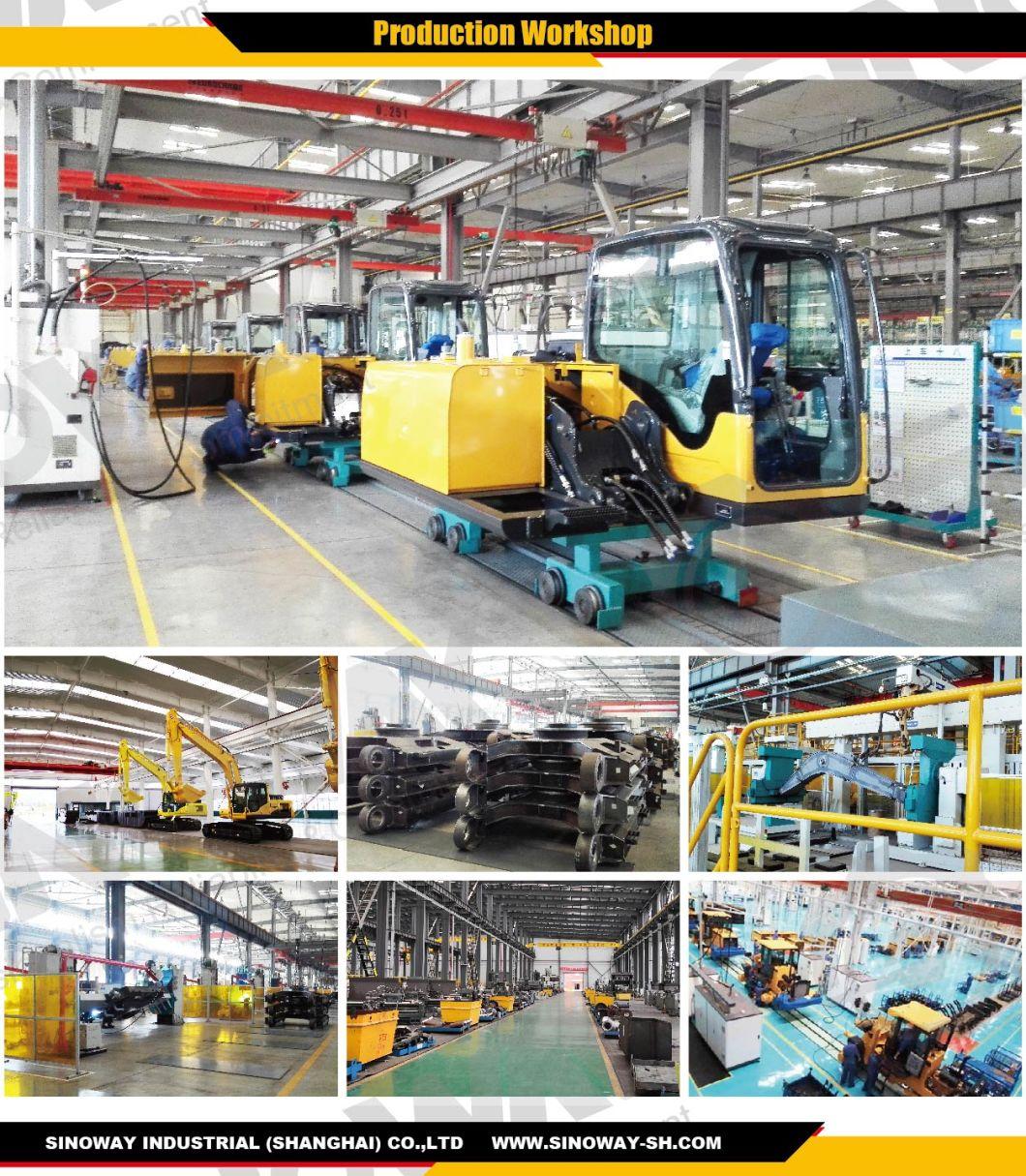

Production Line
