8 Ton Heavy Duty Road Roller Vibratory Roller Machine Compactor

Jining Furuide Machinery Manufacturing Co., Ltd.
  • After-sales Service：10 Year
  • Warranty：1 Year
  • Type：Road Roller
  • Working Method：Vibration
  • Axle：Single Drum
  • Grinding Wheel Type：Tyre Road Roller

Base Info

  • Model NO.：FYL-D208
  • Compaction Depth：25cm
  • Engine Type：Diesel Engine
  • Travel Speed：0-8km,H
  • Centrifugal Force：106kn
  • Certification：ISO 9001:2000
  • Condition：New
  • Gradeability：30%
  • Turning Radius：5000mm
  • Static Linear Load：170n,Cm
  • Engine：Yunnei Water Cooled Diesel Yn36
  • Power：81HP
  • Fuel Tank Volume：47L
  • Hydraulic Oil Tank Volume：47L
  • Drive Type：Torque Converter Driving
  • Drive Wheel：Rear Wheel
  • Nominal Amplitude：0.5mm
  • Vibration Drum Size：Diameter:1200mm Width: 1850mm
  • Transport Package：Nude
  • Specification：5100X2050X2800mm
  • Trademark：FURD
  • Origin：Jining, Shandong, China
  • HS Code：84294019
  • Production Capacity：50sets,Month

Description

Basic Info.

Model NO. FYL-D208 Compaction Depth 25cm Engine Type Diesel Engine Travel Speed 0-8km/H Centrifugal Force 106kn Certification ISO 9001:2000 Condition New Gradeability 30% Turning Radius 5000mm Static Linear Load 170n/Cm Engine Yunnei Water Cooled Diesel Yn36 Power 81HP Fuel Tank Volume 47L Hydraulic Oil Tank Volume 47L Drive Type Torque Converter Driving Drive Wheel Rear Wheel Nominal Amplitude 0.5mm Vibration Drum Size Diameter:1200mm Width: 1850mm Transport Package Nude Specification 5100X2050X2800mm Trademark FURD Origin Jining, Shandong, China HS Code 84294019 Production Capacity 50sets/Month

Product Description

8 Ton Heavy Duty Road Roller Vibratory Roller Machine Compactor8 Ton Heavy Duty Road Roller Vibratory Roller Machine Compactor
8 Ton Heavy Duty Road Roller Vibratory Roller Machine Compactor

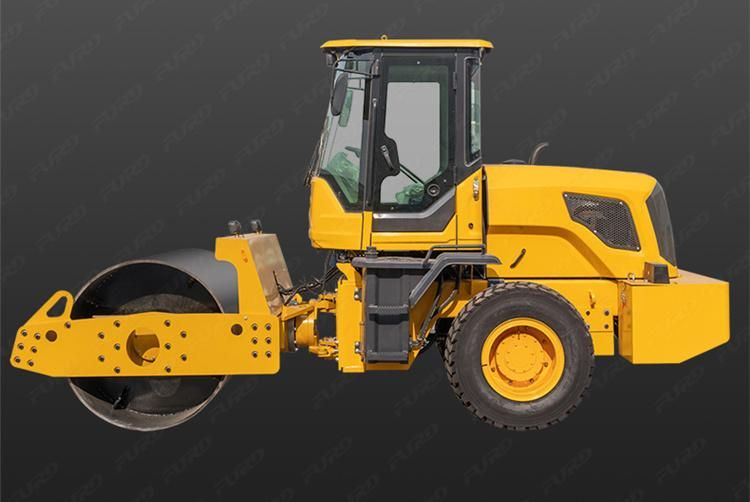

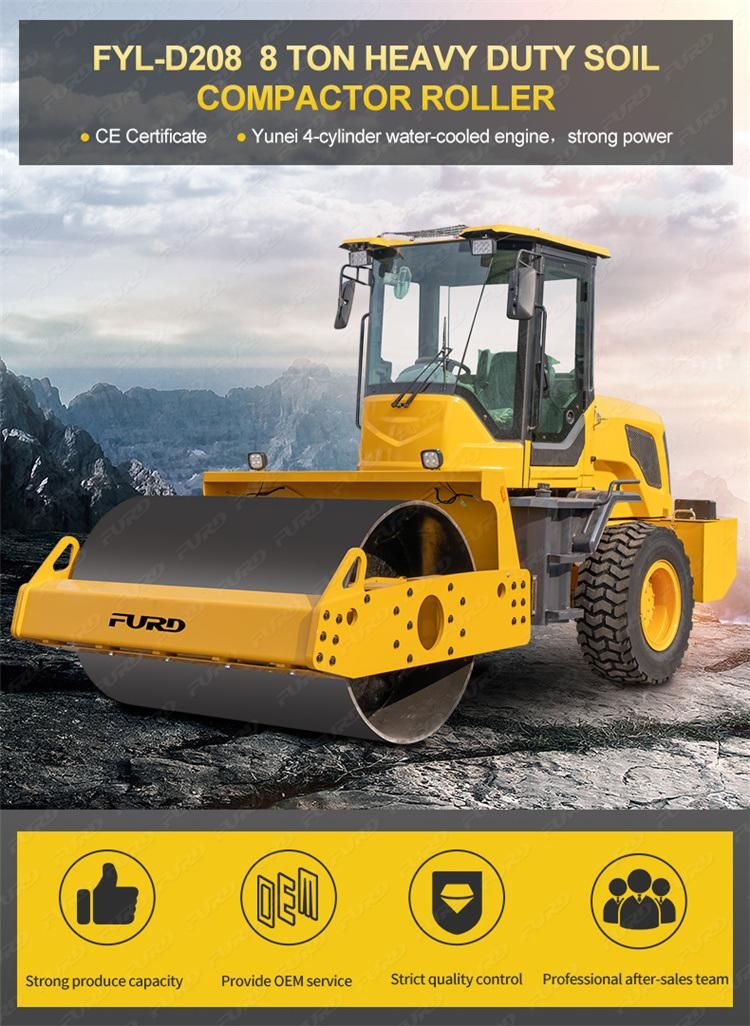

FYL-D208 is 8 ton vibratory roller machine compactor, it uses 4 cylinders engine, which has strong power. The front drum
with 1.85m steel drum, and rear drum with two rubber tyres. High vibration capacity, it's good choosen for soil compaction.

FYL-D208 Road Roller Specification:
Walk speed:0-8km/h, infinitely variable speed
Gradeability:30%
Turning radius: 5000mm
Static Linear Load: 170N/cm
Engine:Yunnei water cooled diesel YN4EZ080-30CR
Cyliner: 4 cylinders
Power:79HP
Fuel tank volume: 47L
Hydraulic oil tank volume: 47L
Rotate speed:2200rpm
Fuel consumption: 220g/kwhr
Electric system:24V
Battery: 24V/120AH
Drive type:Torque converter driving
Drive wheel: Rear wheel
Walking brake: Pneumatic brake
Vibration type: hydraulic vibration
Vibration frequency:35Hz
 Nominal amplitude: 0.5mm
Vibration capacity: 106KN
Vibration drum size: Diameter:1200mm Width: 1850mm
Working weight:8000kg
Size:5100X2050X2800mm

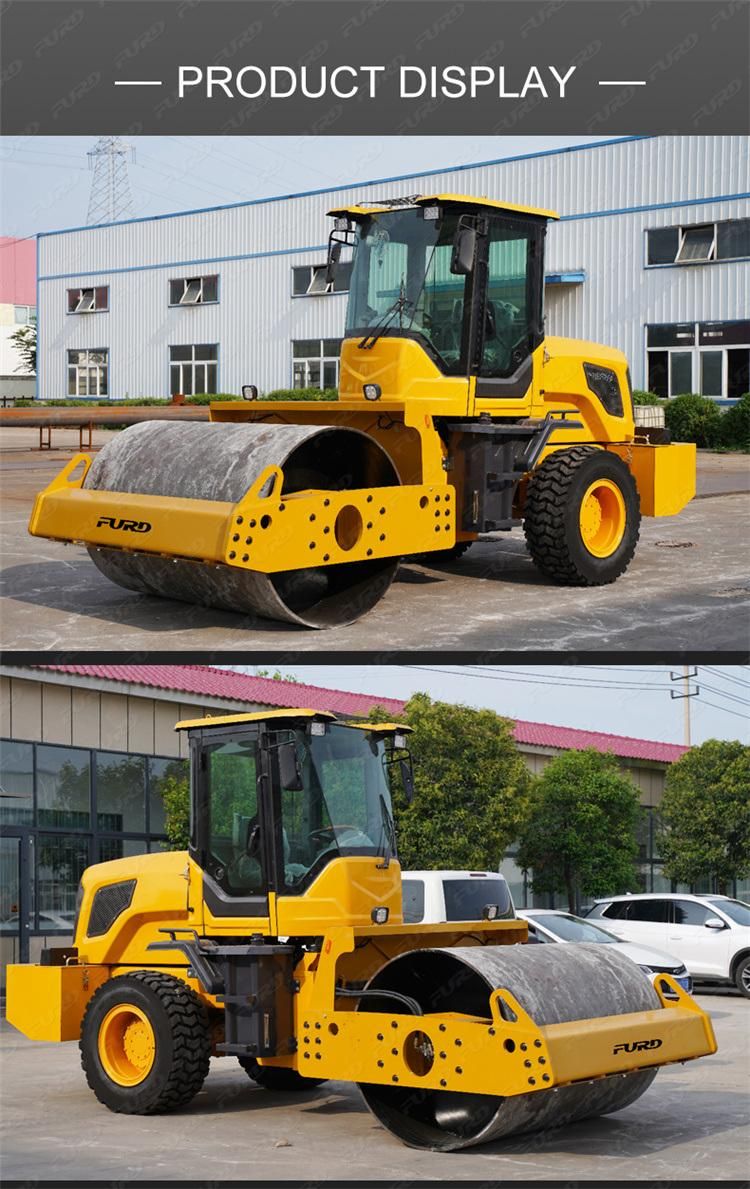

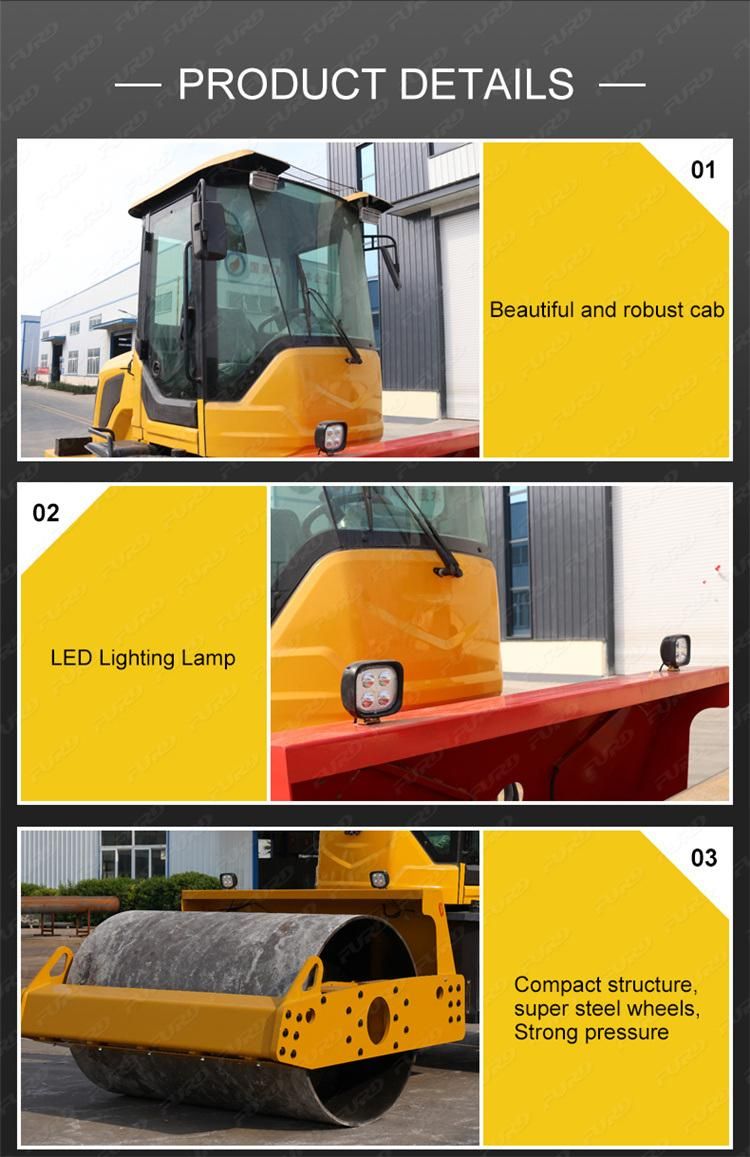

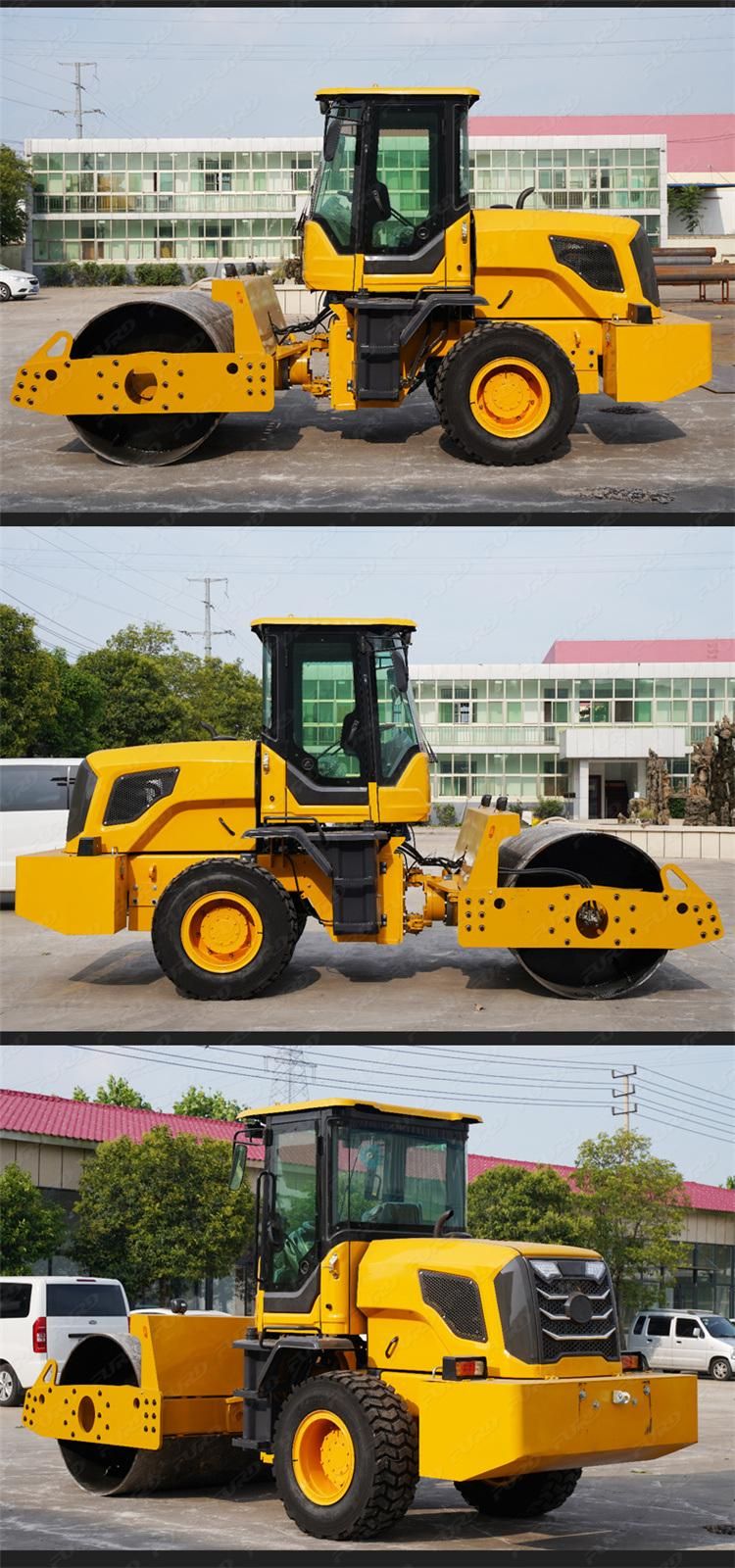

FYL-D208 Road Roller Photos:
