• Model NO.：GR165
• Walking Mode：Wheeled
• Type：Medium-sized Grader
• Engine Power：160kw
• Transport Package：6501*3151*2562mm
• Specification：26000kg
• Trademark：sinomada
• Origin：China
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. GR165 Walking Mode Wheeled Type Medium-sized Grader Engine Power 160kw Transport Package 6501*3151*2562mm Specification 26000kg Trademark sinomada Origin China Production Capacity 50000PCS/Year

Product Description

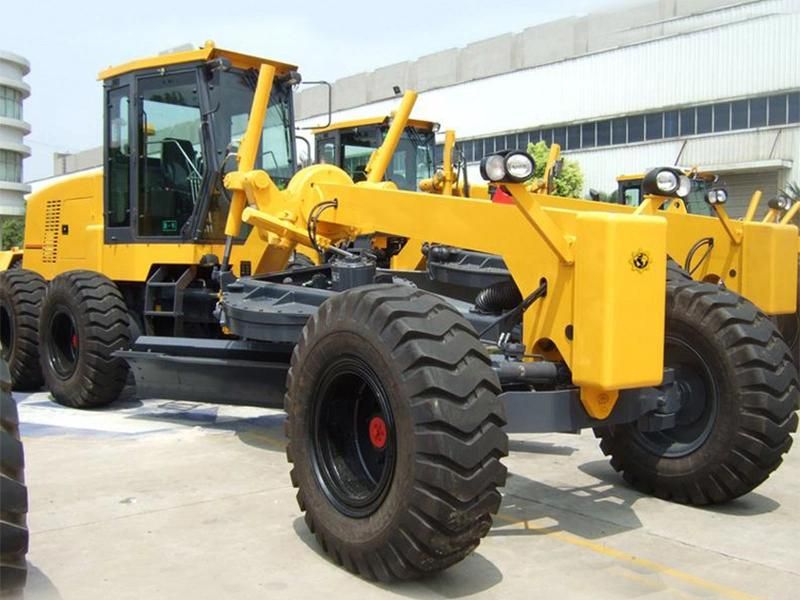

Brand New GR165 Motor grader

 The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.   1. The GR165 adopts 6BTA5.9-C180-II turbocharged diesel engine, which has large output torque and power reserve coefficient and low fuel consumption.
 2. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
 3. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque. 4. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
 5. The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.

project	unit	parameter
Engine manufacturer	-	Shangchai
engine model	-	SC7H180.1G3
Rated power/speed	(kW/rpm)	132/2000
Forward speed	(km/h)	5/8/11/19/23/38
Backward speed	(km/h)	5/11/23
Traction force f=0.75	(kN)	77
Minimum turning radius	(m)	7.3
Blade length X chord height	(mm)	3660x610
Overall dimensions	(mm)	8900x2625x3420
Total Weight	(Standard configuration/kg)	14,500
