(GQ 40) Steel Bar Cutting machine

Ningbo Ace Machinery Co., Ltd.
  • Item：Steel Bar Cutter
  • Power (Kw)：3
  • Voltage (V)：380
  • Motor Speed (R/Min)：2880
  • Max Cut of Flat Steel：80*18mm
  • Max Cut of Square Steel：40*40mm

Base Info

  • Model NO.：GQ 40
  • Max Cut of Angle Steel：63*63mm
  • Cutting Speed (T/Min)：32
  • Net Weight (Kg)：377
  • Packing Size (Cm)：125*50*86
  • Transport Package：Hob with Carton
  • Specification：50mm
  • Trademark：KZW
  • Origin：Ningbo, China
  • HS Code：8461500090
  • Production Capacity：5000 PCS,Year

Description

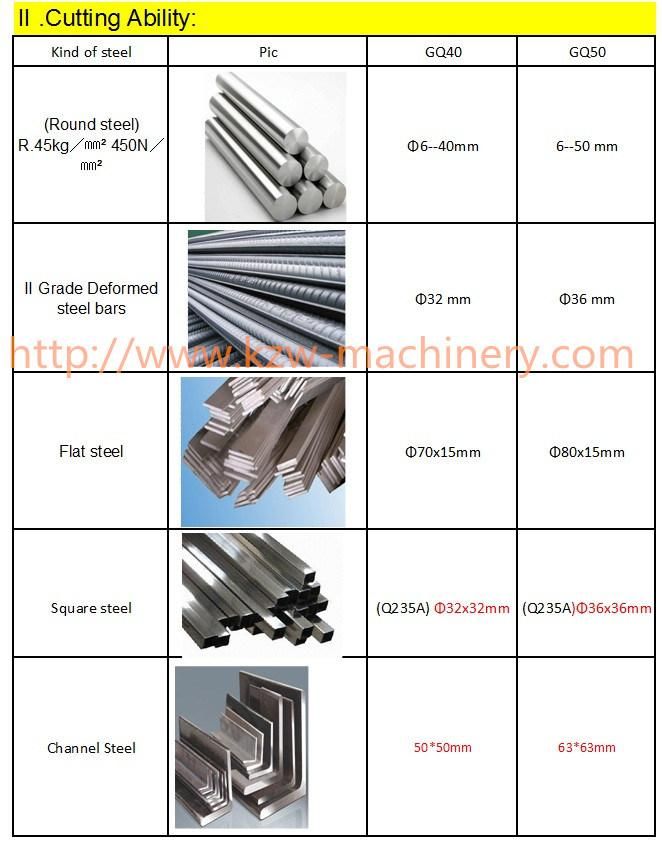

Steel bar cutter / steel cutting machineModelGQ40 (with clutch)GQ50 (with clutch)GQ60  (with clutch)Cutting rebar Dia (Plain Carbon Steel)6-40mm6-50mm6-60mmIIgrade screw  thread  rebar Dia:6-32mm6-42mm6-50mmFlat steel max. diameter:70×15mm80×18mm90x28mmCutting square steel max. spec(Q235A)32×32mm40×40mm50×50mmAngle steel max. spec :50×50mm63x63mm73×73mmCutting quantity:32t/min28t/min28t/minMotor spec: model:Y100L-2   3KWY112M-2  4KWY112M-2   5.5KWVoltage / speed380V   2800rpm380V  2800rpm380V  2800rpmDimension:1190×450×680(mm)1280×480×720mm1380×580×820mmNet weight:360kgs510kgs890kgsGross weight:415kgs535kgs920kgsPacking size:1270×490×820mm1470×560×1010mm1570x700x1110mmDiameter of steel bar (mm)4~810~1314~1819~22More than 22Cutting off piece number each time
GQ4065321Cutting off piece number each time GQ5085432 (GQ 40) Steel Bar Cutting machine
