China Road Construction Equipment Acntruck Gr135 Grader with Scarifier Motor Grader
Acntruck Automobile Sales (Shanghai) Co., Ltd.- After-sales Service：Field Installation, Commissioning and Training
- Warranty：1 Year
- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic
Base Info
- Model NO.：GR135
- Walking Mode：Wheeled
- Type：Medium-sized Grader
- Rated Power/Speed：97kw,2300rpm
- Overall Dimension：8015*2380*3050 mm
- Total Weight：11200 Kg
- Tire Specification：13.00-24
- Tread：2020 mm
- Ground Clearance：515 mm
- Inflation Pressure of Tires：300 Kpa
- Working System Pressure：16 MPa
- Max Shoveling Depth：515 mm
- Max Lifting Height：410 mm
- Transport Package：Nude Package
- Specification：8015*2380*3050 mm
- Trademark：Acntruck
- Origin：China
- Production Capacity：50 Unit Per Month
Description
Basic Info.
Model NO. GR135 Walking Mode Wheeled Type Medium-sized Grader Rated Power/Speed 97kw/2300rpm Overall Dimension 8015*2380*3050 mm Total Weight 11200 Kg Tire Specification 13.00-24 Tread 2020 mm Ground Clearance 515 mm Inflation Pressure of Tires 300 Kpa Working System Pressure 16 MPa Max Shoveling Depth 515 mm Max Lifting Height 410 mm Transport Package Nude Package Specification 8015*2380*3050 mm Trademark Acntruck Origin China Production Capacity 50 Unit Per MonthProduct Description
China Road Construction Equipment Acntruck GR135 Grader With Scarifier Motor Grader
Main Features
GR135 adopt impoted turbocharged diesel engine, Large output torque and power reserve cofficient and low oil consumption.
Torque converter has big torque coefficient, wide high efficiency area. It has good combination working characteristics with engine. The transmis-sion box has six forward gears, three backward gears, with neutral start protection function, gear shift controlled by electro-hydraulic, flexible operation, shift without impact, reasonable speed ratio distribution, meet the requirements of various working conditions.
The front axle is steering axle. The axle can swing from side to side. In addition to the front steering, it also uses the articulated frame, which can further reduce the turning radius.
The hood is structural part, well shaped with turn over function, the two sides double door is reversible, enhances the maintainability.
| Comparative item | GR135 |
| Overall length (mm) | 8015 |
| Overall height (mm) | 3035 |
| Overall width (mm) | 2380 |
| Ground clearance (mm) | 515 |
| Tread (mm) | 2020 |
| Space of front and rear axles (mm) | 5780 |
| Blade Max lifting height (mm) | 410 |
| Blade Max shoveling depth (mm) | 515 |
| Blade Length x chord height (mm) | 3660x610 |

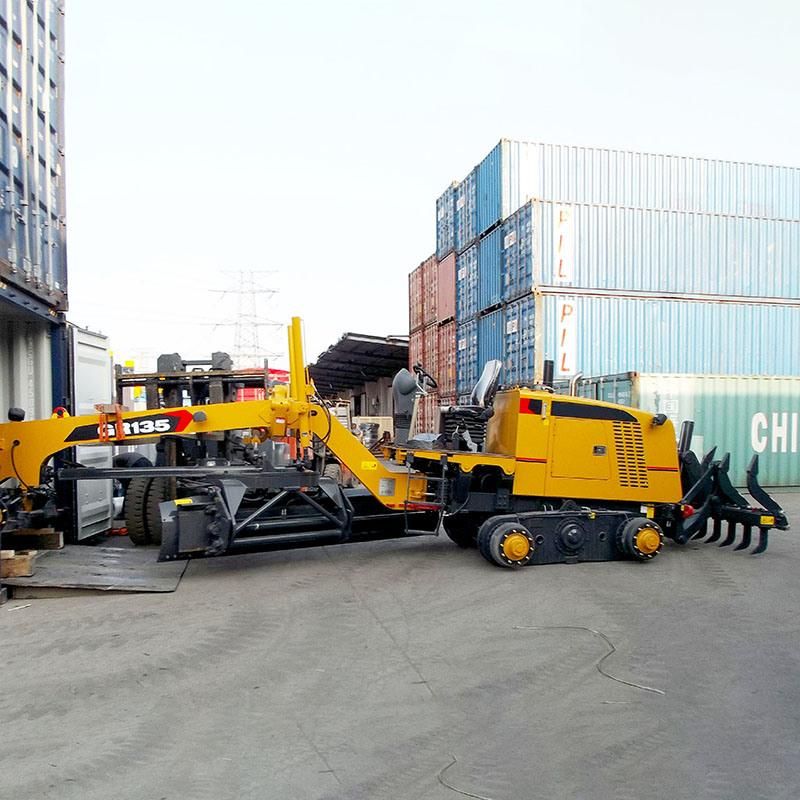

Packing Pictures
