XCMG Mini Wheel Loader 1 Ton China Front End Loader Lw160fv for Sale
Xuzhou Construction Machinery Group Import & Export Co., Ltd.- Certification：TUV, ISO, CE
- Condition：New
- Rated Load：1.6ton
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：LW160FV
- Type：Small Loader
- Power(W)：55kw
- Bucket Capacity：0.75 M3
- Dumping Height：3000mm
- Transport Package：Comply with Export Packaging Requirements
- Specification：5810*2060*2815 mm
- Trademark：XCMG
- Origin：China
- HS Code：84295100
- Production Capacity：10000 Unit,Units Per Year
Description
Main ParametersParameters Unit Rated operating load 1300 kg Dumping height 3000 mm Dumping distance 950 mm Bucket capacity 0.75 m3 Machine weight 5000 kg Wheel base 2300 mm Tread 1500 mm Hinge-axis height at lifting limit 3600 mm Max. breakout force 44 kN Boom lifting time 5 s Total cycle time 9.5 s Min. turning radius over tyres 4450 mm Articulation angle 35 Gradeability 25 Tyre size 16/70-16 - Overall machine dimension L*W*H 5810*2060*2815 mm Engine model No. YN4C075-30CR - Rated Power/Speed 55/2400 kW/rpm Travel Speed I-gear(F/R) 8 km/h II-gear(F/R) 20 km/h

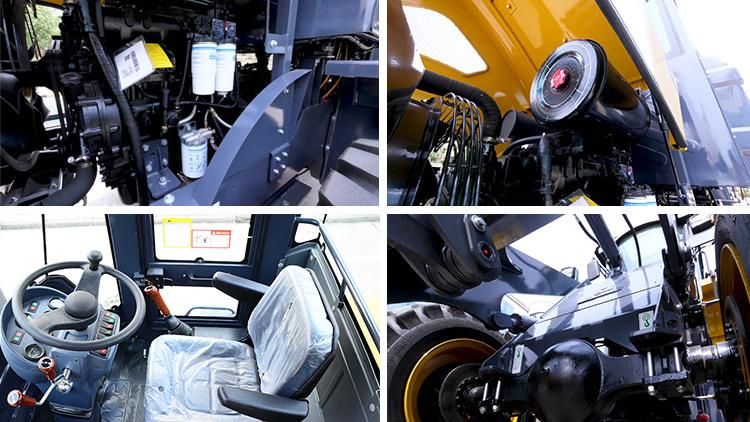

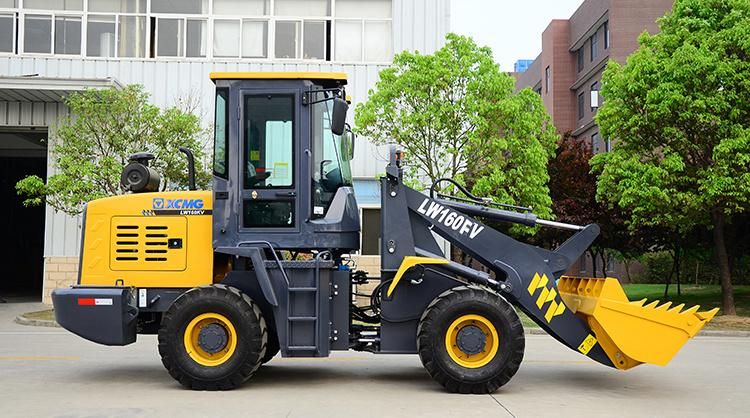

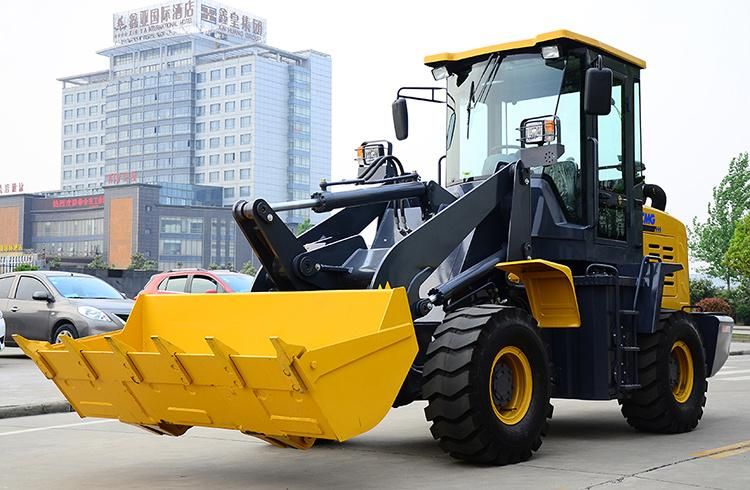

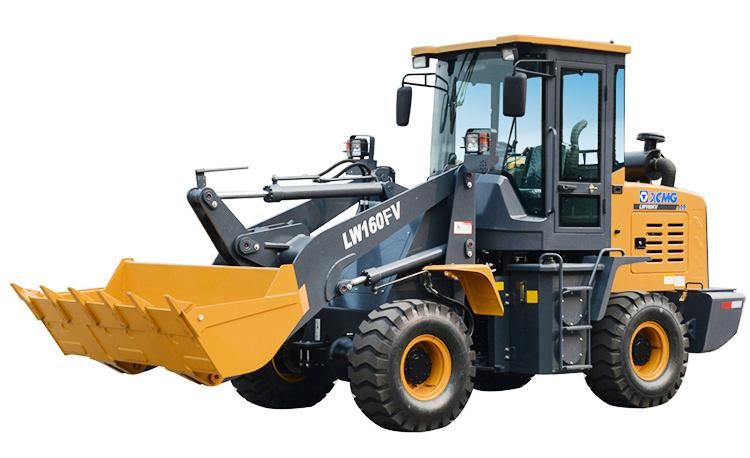

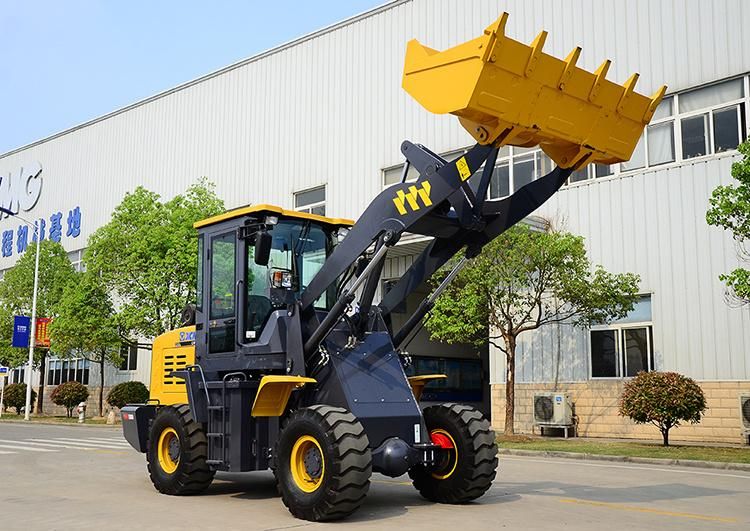

[Product Picture]
[Company Information]
[FAQ]
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
