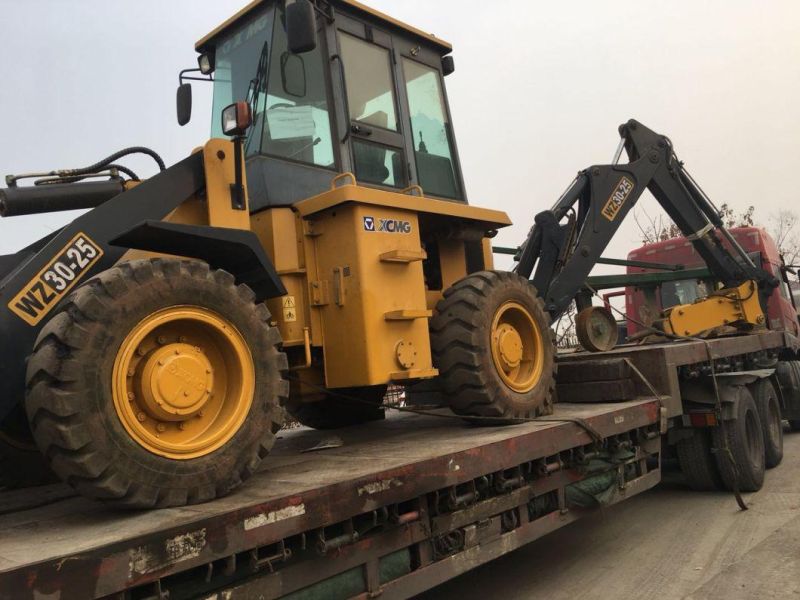

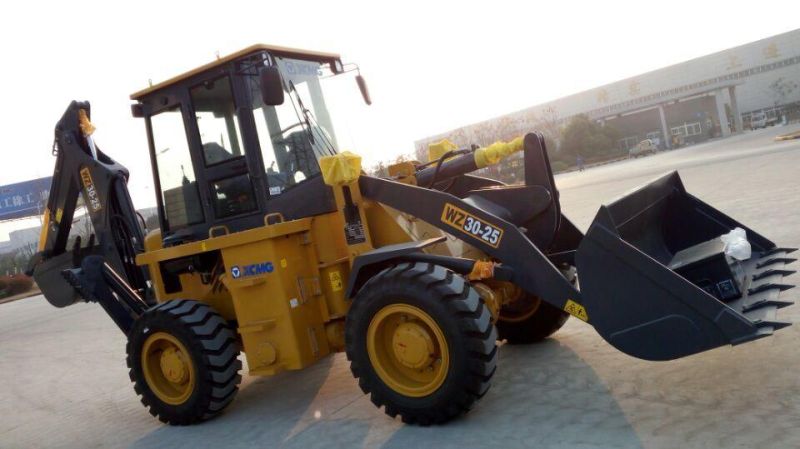

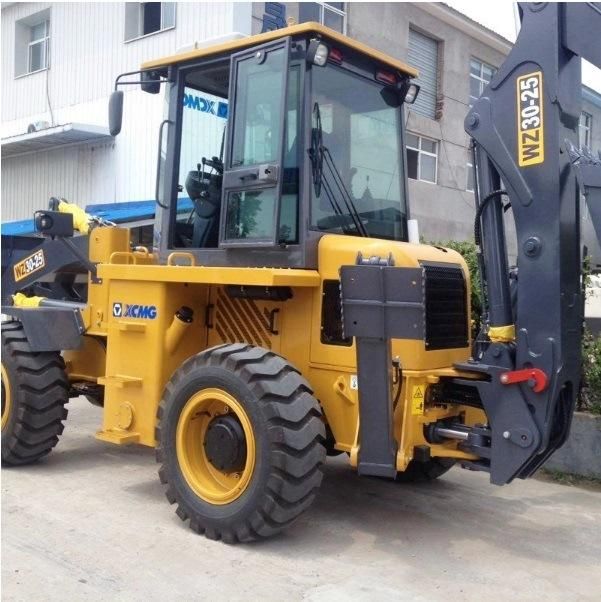

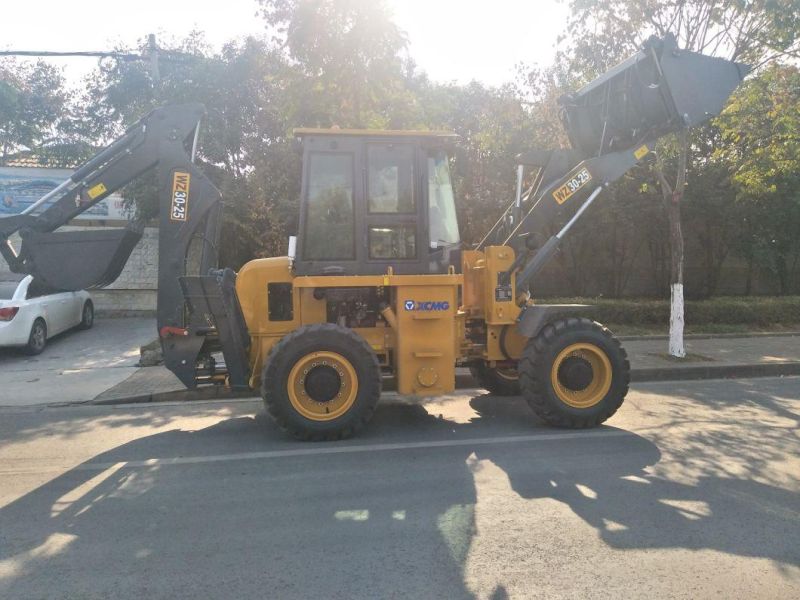

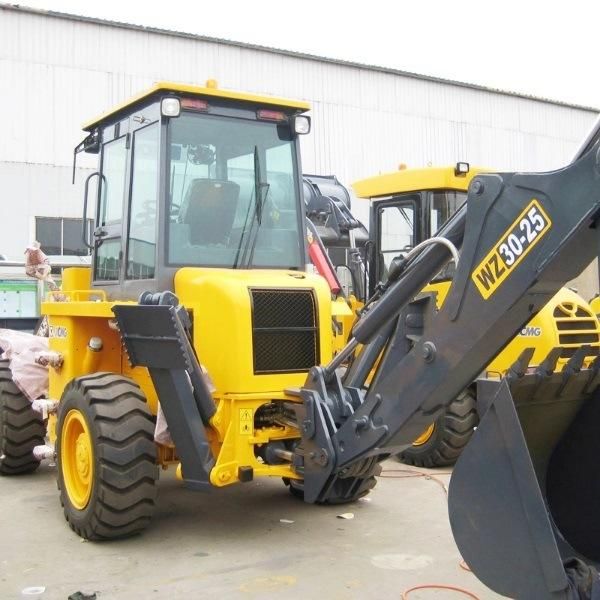

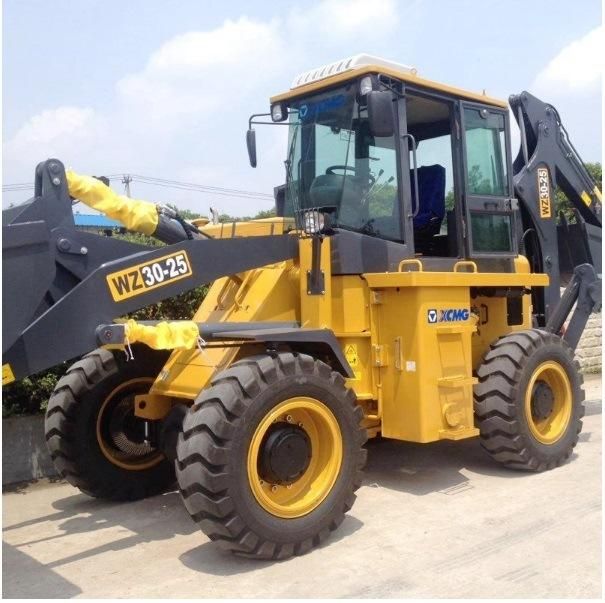

Shantui Wz30-25 Backhoe Loader 2.5 Ton Backhoe Loader Factory Price
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：After Service,Online Contact , Spare Parts for Fre
- Warranty：One Year Warranty
- Certification：ISO, CE
- Condition：New
- Transmission：Hydraulic - Mechanical
- Load and Unload Mode：Front Discharge
Base Info
- Model NO.：WZ30-25
- Walking Mode：Wheeled
- Type：Small Loader
- Key Word：Mini Loader
- Max. Breakout：66 Kn
- Max. Discharge Distance：755 mm
- Max. Digging Depth：4425
- System Pressure：24 MPa
- Transport Package：Container
- Specification：7913*2580*3494mm
- Trademark：SINOMADA
- Origin：Jiangxu, China
- Production Capacity：1000 Pieces,Per Month
Description
Description

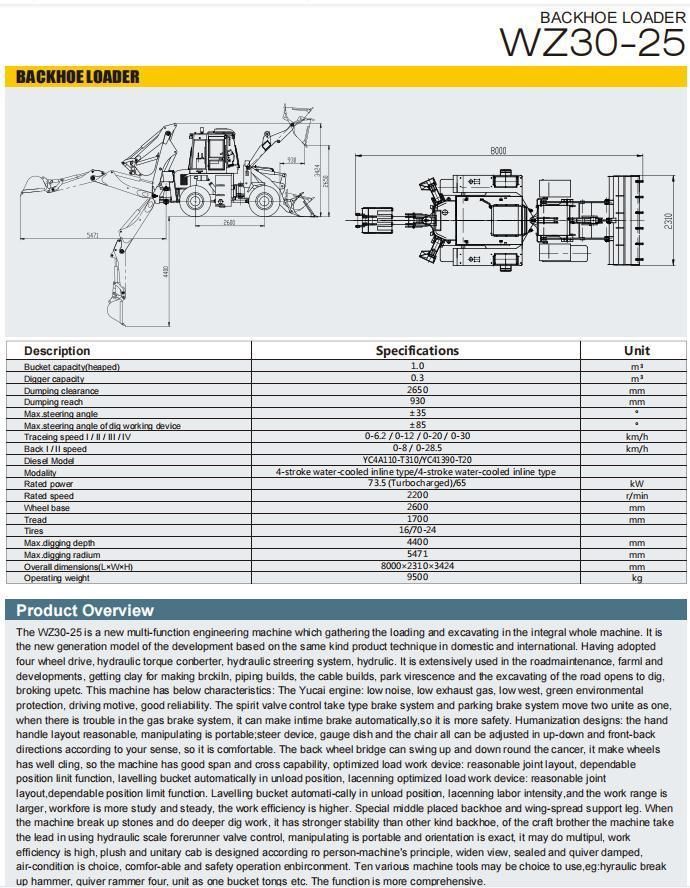

Specifications
Unit
Bucket capacity(heaped)
1.0
m3
Digger capacity
0.3
m3
Dumping clearance
2700
mm
Dumping reach
950
mm
Max. steering angle
±35
°
Max. steering angle of dig working device
±85
°
Tracing speed (F/R)
0-6.2
km/h
Tracing speed (F/R)
0-12
km/h
Tracing speed (F/R)
0-20
km/h
Tracing speed (F/R)
0-33
km/h
Back speed
0-8
km/h
Back speed
0-28.5
km/h
Diesel
Yuchai
Model
YC4108
Modality
Rated power
65
kw
Rated speed
2500
r/min
Wheel base
2600
mm
Tread
1700
mm
Tires
16/70-24
Max. digging depth
4400
mm
Max. digging radius
5471
mm
Overall dimension(L x W x H)
8000 x 2200 x 3350
mm
Operating weitght
9500
kg
