• Model NO.：YLB1000
• Quality：Korean Quality
• Chisel Type：Moil, Blunt, Wedge Type
• Color：Yellow or as Per Customers′ Request
• Material：20crmo
• Rod Diameter：100mm
• Excavator Tonnage：11-16ton
• Oil Hose Diameter：3,4inch
• Impact Rate：350-700BMP
• Transport Package：Standard Export Packing
• Specification：435KGS
• Trademark：PTEROSAUR
• Origin：China
• HS Code：8412210000
• Production Capacity：2000unit,Year

Basic Info.

Model NO. YLB1000 Quality Korean Quality Chisel Type Moil, Blunt, Wedge Type Color Yellow or as Per Customers′ Request Material 20crmo Rod Diameter 100mm Excavator Tonnage 11-16ton Oil Hose Diameter 3/4inch Impact Rate 350-700BMP Transport Package Standard Export Packing Specification 435KGS Trademark PTEROSAUR Origin China HS Code 8412210000 Production Capacity 2000unit/Year

Product Description

Hydraulic stone breaker tool drill hammer for cat excavator

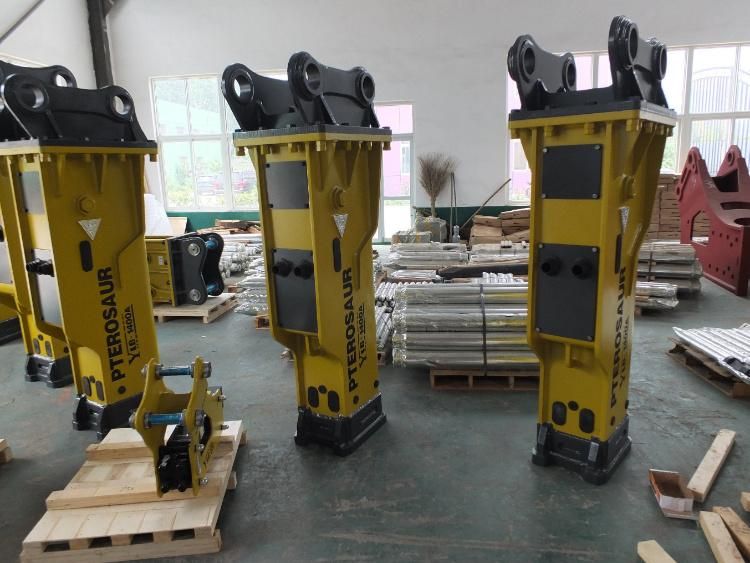

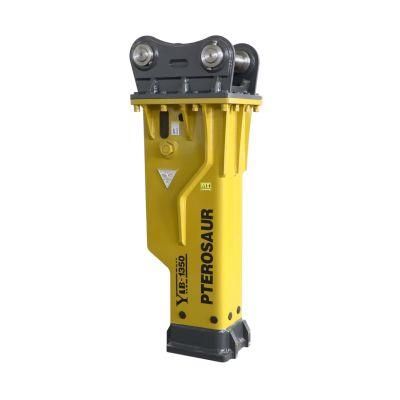

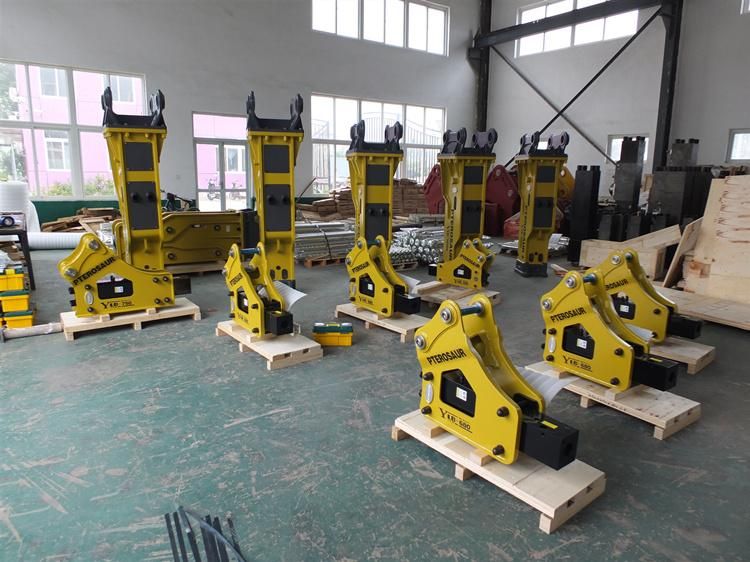

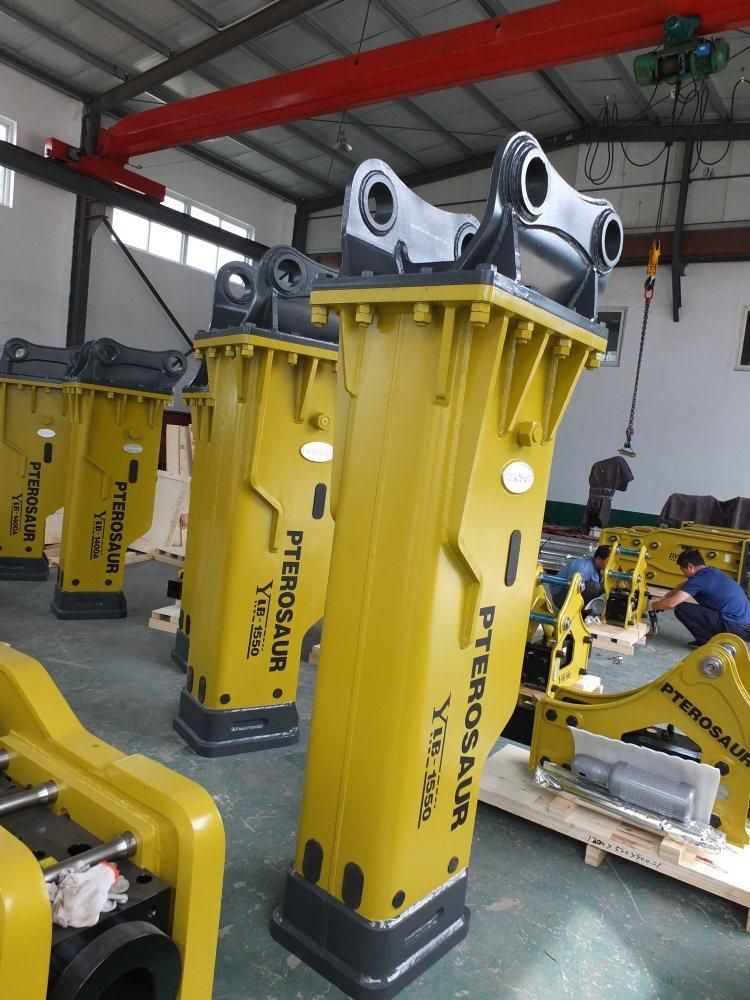

Product Show:

Specifications for Side type breakers:

Type	Model	/	SB30	SB40	SB43	SB50	SB70	SB81	SB121	SB131
Description		YLB450	YLB530	YLB680	YLB750	YLB1000	YLB1350	YLB1400	YLB1550	YLB1650
Operating Weight	KG	90	150	300	430	860	1650	1825	2850	3350
Optimum Oil Flow	L/min	15-25	25-50	40-70	50-90	80-120	100-150	130-170	170-220	200-260
Impact Rate	bpm	550-950	550-1000	500-800	450-800	350-700	350-600	350-500	300-450	250-400
Hose Diameter	inch	1/2	1/2	1/2	3/4	3/4	1	1	11/4	11/4
Rod Diameter	mm	45	53	68	75	100	135	140	155	165
Applicable Carrier	ton	1.2-3	2.5-4.5	4-7	6-9	7-14	18-21	20-26	28-35	30-40
Valve Ass'y Position	/	/	internal	internal	internal	internal	internal	internal	internal	internal

Product Advantages:
"There are Numerous satisfied world wide and you surely will be the next".

Available from 0.8 tons of mini excavators to 60 tons of large excavators

Advanced vibration absorber buffer system to reduce stress and impact wave

Long durability with precise assembly

Box housing and vertical mounting type

High efficiency with optimized control valve system

High impact energy with the gas-hydraulic mechanism

Breaking hard-rock, reinforced concrete, and metallurgical slag


Main Features:







---Back head: Material: 20CrMo, impact energy is accumulated due to charged nitrogen gas in the block.

---Front Head: Using 20CrMo material, high quality with long life using.

---Valve: We adopt production process by grinding machine, with high precision.

---Cylinder body: Material: 20CrMo, it is best quality material.

---Piston: Longer service life by optimized design and high quality special steel.

---Front Head: Using 20CrMo raw material, which are provided by domestic famous manufacturer, forging again and again to make internal organization more tight and increasing the hydraulic breaker wear-resistance.

---Chisel: The specially heat treated chisel is directly applied to break rocks. There are four types for choosing: Moil, Blunt, Flat, Conical Point. The material is 42Crmo.

---Main Body: Including Front head, cylinder and back head. Ensure your breaker will be in best performance

---Seal Kit: We can supply both Parker and NOK seal kit which are most famous brand in the business line.

Company Exhibition

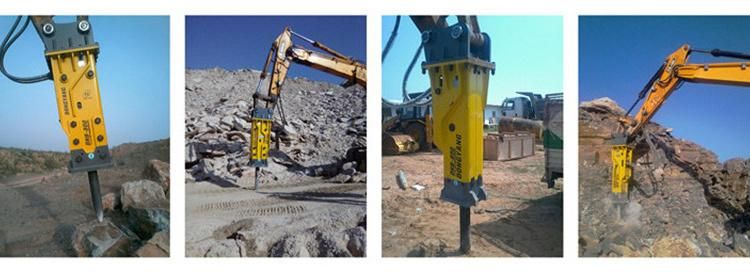

Application:

1.Mining: Mountains, mining, crushing, secondary crushing

2.Metallurgy, slag cleaning, ladle furnace demolition, demolition equipment foundation body dissatisfied

3.Railway, tunnel bridge, mountain down.

4.Highway: highway repair, cement pavement broken, foundation excavation.

5.Municipal gardens, concrete crushing, gas engineering construction, the transformation of the old city.

6.Building: the old building demolition, reinforced concrete broken.

7.The ship hull in mussels , derusting

8.Other: ice breaking, breaking the permafrost and vibrating sand


About us:
We are an earliest and professional manufacturer of hydraulic breakers in China established in 2004 with USD3,200,000.00 registered capital. All technology is original from Korea; We have mature production technology and 30 years of experience in processing workers. Our company employed seven Korea Engineers before 2010.

We mainly have SIDE, TOP, BOX type hydraulic breakers, also produce skid steer loader breakers and backhoe loader breakers.




Packing&Shipment:

1. Standard export package by poly-wood case

2. Loading port from Qingdao or any port of China

Hydraulic Breaker Standard Accessories as follows:
* Chisels x 2 pcs

* Hydraulic Oil Hoses x 2 pcs

* Nitrogen Charging Kit with Pressure Gauge x 1 set

* Nitrogen Bottle x 1 pcs

* Tool Box with necessary maintenance tools x 1 set

* User's Manual x 1 pcs.

RFQ:

Q: Are you a manufacturer?
A: Yes, our factory was established in 2009 and we have ability to trading

Q: Are you sure your product will fit my excavator?
A: Yes, we are professional about this, you can also tell me your excavator model, and we will check it for you.

Q: Can you provide customers' design?
A: Sure, we can provide OEM and ODM services. Also, we can design new appearance for you

Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T, Western Union accepted, other terms can be negotiated.

Q: How about the delivery time?
A: 5-25 workdays after the payment, depending on your quantity.

Q: How about the package?
A: Our hydraulic breaker wrapped by stretch film, packed by pallet or polywood case.

Q: Which country have you exported?
A: Vietnam, Saudi Arabia, America, Thailand, New Zealand, Canada, Australia, Peru, Chile, Brazil, Mexico, Iran, South Africa, etc.
