• Model NO.：SP25Y
• Origin：China
• HS Code：8479109000
• Production Capacity：1000,Month

Basic Info.

Model NO. SP25Y Origin China HS Code 8479109000 Production Capacity 1000/Month

Product Description

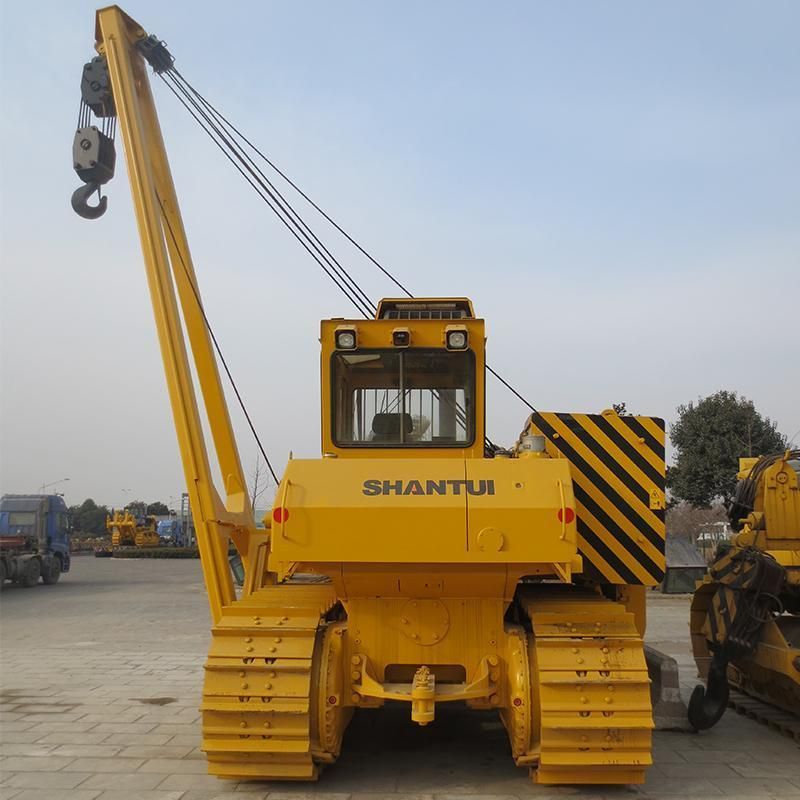

SHANTUI 25 Ton PipeLayer Pipe Layer SP25Y With Factory PriceOperating performance

The control of working device is composed of the luffing control, lifting control, and counterweight control. The reducing type pilot control valve is applied to control the hydraulic reversing valve, featuring simple controls, high flexibility and labor-saving, good fine adjustment performance, and easy arrangement on machine body.

The hook and boom controls are integrated in one joystick and the counterweight is controlled by one separate joystick to operate under diversified working conditions conveniently and rapidly, achieve good inching performance, and guarantee the user's accuracy requirement and promote the operating efficiency.

The hydraulic motors of hook and boom winches incorporate extremely high volumetric efficiency and the excellent balance valves eliminate the secondary gliding of winches and the jitter of unloaded hook. In addition, the clutch incorporated in the hook winch realizes the free hook lowering function.

Product	SP25Y
Performance parameters
Operating weight (Kg)	22000
Maximum lifting capacity(T)	25
Rated power of engine(kw/hp)	120Kw
Minimum turning radius (mm)	2950mm
Ground pressure (Mpa)	0.07
Engine
Engine model	WD10SDEC SC11CB
Number of cylinders× cylinder diameter× stroke(mm×mm)	6-126x1306-121x152.4
Rated power/rated speed (kw/rpm)	120/1850
Maximum torque (N.m/r/min)	746±6%/810±6%
Overall dimensions of machine
Length (mm)	4000
Width (mm)	3050
Height (mm)	2954
Driving performance
Forward gear 1/Reverse gear 1 (km/h)	0-3.29/0-4.28
Forward gear 2/Reverse gear 2 (km/h)	0-5.82/0-7.59
Forward gear 3/Reverse gear 3 (km/h)	0-9.63/0-12.53
