4X400W Metal Halide Flood Light Diesel Generator Portable Light Tower
Fujian Robust Power Co., Ltd.- After-sales Service：Warranty Service
- Warranty：Warranty Service
- Certifications：ISO9001:2000, Ce
- Fuel Capacity：1.85L,Hr(15 Litres,Tank)
- Engine：Single Cylinder, 4-Stroke, Air Cooled
- Engine Speed：3000rpm,3600rpm
Base Info
- Model NO.：RPLT1600B
- Alternator：2-Pole, Brushless
- Control System：Digital Control Panel
- Lighting：400W Metal Halide Lamp
- Lamp No.：4
- Lumen Output：4*25000 Lumens
- Transport Package：Plywood Pallet , Plywood Case , Cartons
- Specification：1350*840*2600mm
- Trademark：Robuster Lighting
- Origin：China
- HS Code：9405409000
- Production Capacity：100sets,Month
Description
Basic Info.
Model NO. RPLT1600B Alternator 2-Pole, Brushless Control System Digital Control Panel Lighting 400W Metal Halide Lamp Lamp No. 4 Lumen Output 4*25000 Lumens Transport Package Plywood Pallet / Plywood Case / Cartons Specification 1350*840*2600mm Trademark Robuster Lighting Origin China HS Code 9405409000 Production Capacity 100sets/MonthProduct Description

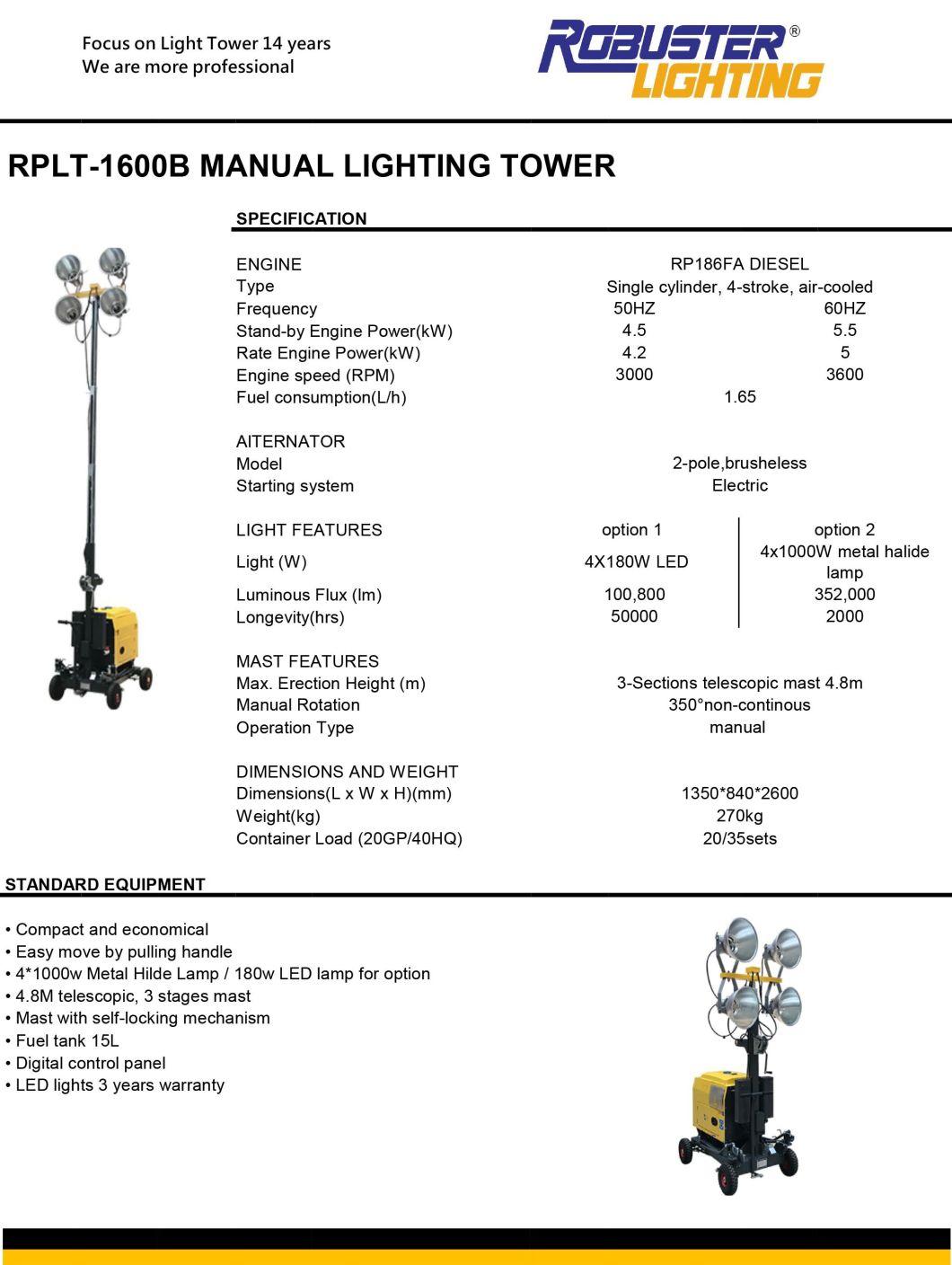

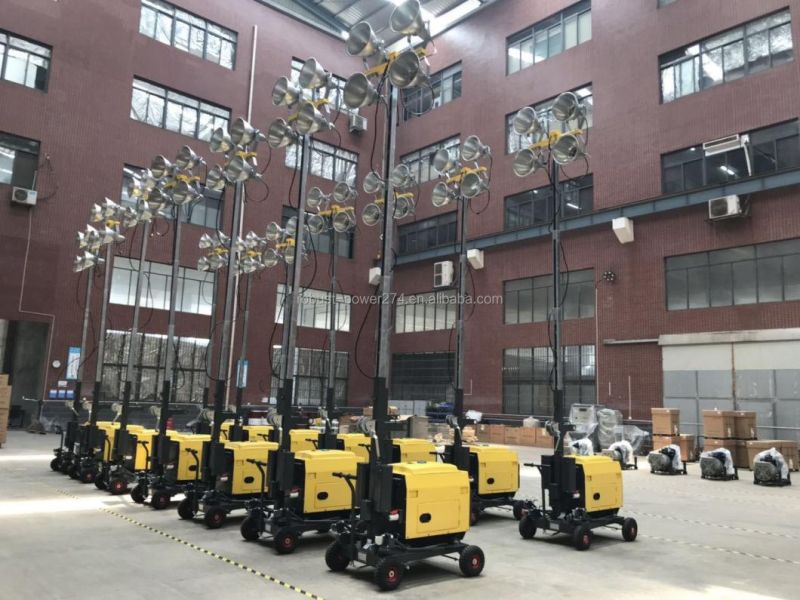

4x400W Metal Halide Flood Light Portable Light Tower (RPLT1600B)Key Features Include:
Compact and economical
4x400W Metal Halide Lamps
4x160W LED Lamps
4.8m Telescopic, 3 stages mast
Mast with self-locking mechanism
Push Handle
Technical Data:
| Light | |
| Housing Material | Aluminium die cast |
| Type of lights | LED Lamp/Metal Halide Lamp/Moon Light |
| Power of lights | 4*160W LED lamps 4*400W Metal Halide Lamp 2*1000W Moon Light |
| Lumen Output | 4*19200lm/ 4*25,000lm/2*110,000lm ( total ) |
| Voltage | AC 110V-240V |
| Frequency | 50/60Hz |
| Longevity | 3 years/2000 Hrs/2000 Hrs |
| Waterproof grade | IP54 |
| Color temperature | 2100K-5700K |
| Mast | |
| Material of mast | Galvanized iron |
| Mast lifting type | Manual mast |
| Mast section | 3-section telescopic |
| Max. height of mast | 4.8meters |
| Mast rotation system | Winch(Mechanical) |
| Engine | |
| Engine model | RP186FA Single cylinder, 4-stroke, air cooled |
| Start system | Electric (Battery start) |
| Engine speed | 3000rmp-3600rmp |
| Rated power | 4.5KW/50HZ, 5KW/60HZ |
| Insulation | H |
| Fuel tank capacity | 22L |
| Fuel consumption | 1.85L/hr |
| Maximum Working Hours | 10H |
| Waterproof grade | IP54 |
| Trailer | |
| Stabiliser Supports | 4*Manual |
| Tire Size | 25cm |
| Brakes | Manual |
| Packing | |
| Net weight | 270 kg |
| Dimention | 1350X840X2600 MM |
Robust Power Models:
| No. | Model | Mast | Power of Lamps | Engine Model |
| 1 | RPLT1600 | 4.8M Manual | 4*400W Metal Halide Lamp | RP186FA |
| 2 | RPLT1600 | 4.8M Manual | 4*160W LED | RP186FA |
| 3 | RPLT1600 | 4.8M Manual | 2*1000W Metal Halide Lamp | RP186FA |
| 4 | RPLT6000 | 9M Manual | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 5 | RPLT6000 | 9M Manual | 4*240W LED | Kubota D905 (Japan) |
| 6 | RPLT6800 | 8.6M Hydraulic | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 7 | RPLT6800 | 8.6M Hydraulic | 4*1500W Metal Halide Lamp | Kubota D1105 (Japan) |
| 8 | RPLT6800 | 8.6M Hydraulic | 4*480W LED | Kubota D905 (Japan) |
| 9 | RPLT3800 | 7M Hydraulic | 4*480W LED | Kubota Z482 (Japan) |
| 10 | RPLT6900 | 8.5M Hydraulic | 4*480W LED | Kubota D1105 (Japan) |
| 11 | RPLT7200 | 10M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 12 | RPLT7200 | 10M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
| 13 | RPLT7600 | 9M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 14 | RPLT7600 | 9M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
