• Model NO.：TDCM250-13DH
• Structure：Rotor Type
• Productivity：25m²,h
• Feeding Height：1370mm
• Vibrating Amplitude：1.1mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Capacity of Discharge：200L
• Capacity of Loading：320L
• Productivity (M3/H)：6-8
• Steel Thickness of Drum：4mm
• Mixing Time：40 Sec.
• Operation：Maunally Fed
• Power：13kw
• Power Source：Diesel or Electrol Motor
• Overall Size：2170*2636*2938mm
• Weight：1050kg
• Transport Package：Nude in Container
• Specification：ISO9001
• Trademark：kudat
• Origin：China
• HS Code：8430
• Production Capacity：100 Units,Month
• Package size per unit product：2170.00cm * 2636.00cm * 2938.00cm
• Gross weight per unit product：1050.000kg
• Lead Time：15 days (1 - 3 Pieces) To be negotiated ( > 3 Pieces)

Basic Info.

Model NO. TDCM250-13DH Structure Rotor Type Productivity 25m²/h Feeding Height 1370mm Vibrating Amplitude 1.1mm Certification ISO9001: 2000, CE Condition New Color Yellow Capacity of Discharge 200L Capacity of Loading 320L Productivity (M3/H) 6-8 Steel Thickness of Drum 4mm Mixing Time 40 Sec. Operation Maunally Fed Power 13kw Power Source Diesel or Electrol Motor Overall Size 2170*2636*2938mm Weight 1050kg Transport Package Nude in Container Specification ISO9001 Trademark kudat Origin China HS Code 8430 Production Capacity 100 Units/Month

Packaging & Delivery

Package size per unit product 2170.00cm * 2636.00cm * 2938.00cm Gross weight per unit product 1050.000kg Lead Time 15 days (1 - 3 Pieces)
To be negotiated ( > 3 Pieces)

Product Description

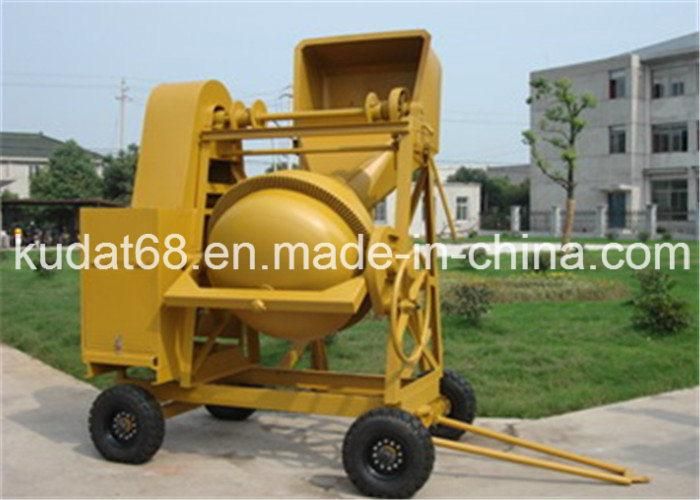

Concrete Mixer with Hydraulic Hopper TDCM250-13DH

Specifications:


	TDCM250-13DH
Power	13KW
Power source	Diesel Or Electrol Motor
Drum total Volume	660 liter
Capacity (unmixed)	320 litre
Capacity (mixed)	200 litre
Mixing time	40 sec.
Capacity Per Hour	6~8m3
Dimension	2170×2636×2938mm
Steel Thickness of Drum	4mm
Operation	Maunally Fed
Weight	1050kg

Performance:
A rigged with advanced metallurgy and technology. Designed to perform for continuous
mass concreting toughness required at any site Machine
Chassis: Made from rectangular & square tubular sections of high strength
Drum:
Large drum with 20% overload capacity. Fabricated from rolled steel plates. Its bevel
shaped and revolves noiselessly on a single hot blasted ci gear. A quick homogeneous
mix with enhanced daily output is guaranteed
Hopper:
Top Covered ,Centrally Supported Hopper mounted on rectangular tube loaded arm ,
Specifically designed for rapid discharge
Operation Safety :
1 . Light, smooth and positive linkages allows operator fatigue working
2 . Full covered moving parts and dampeners provided in compliance with safety
regulations
3 . Ample space in the engine compartment facilitates air circulation and convenience in
maintenance.
