• Model NO.：G12K
• Productivity：5cbm,Min
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：White
• Geometric Volume：19.5cbm
• Max. Diameter of Drum：2380mm
• Drum Length：5967mm
• Volume of Water Tank：450L
• Rotary Speed：0~14r,Min
• Weight：15870kg
• Power：273kw
• Transport Package：Comply with Export Packaging Requirements
• Specification：9850*2500*3980mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• Production Capacity：1000,Year

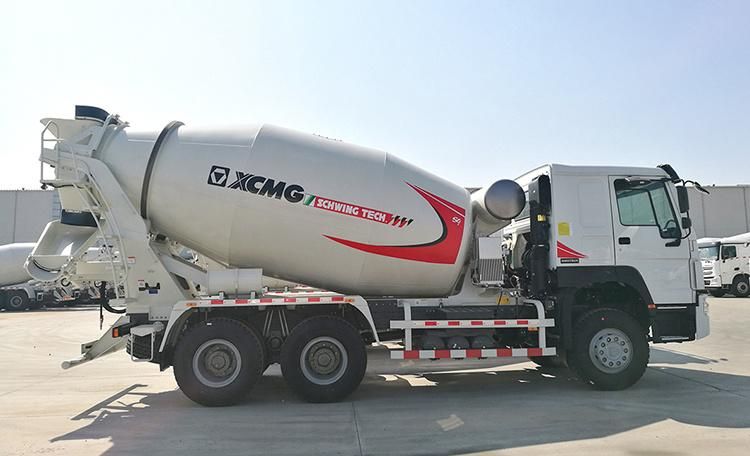

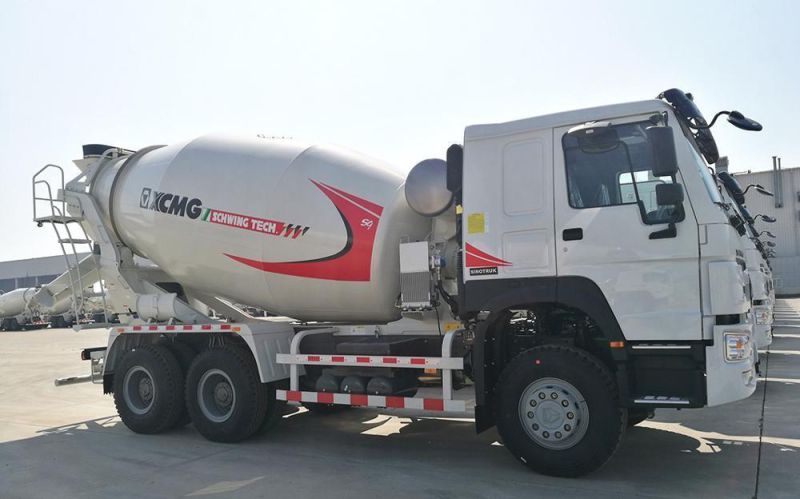

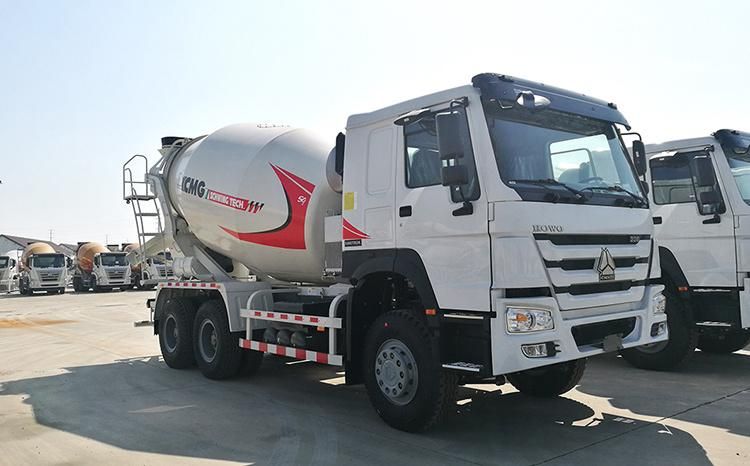

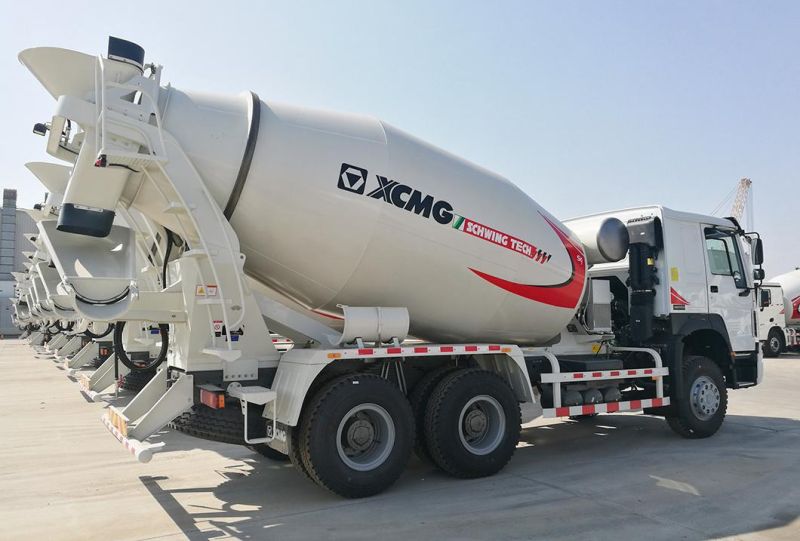

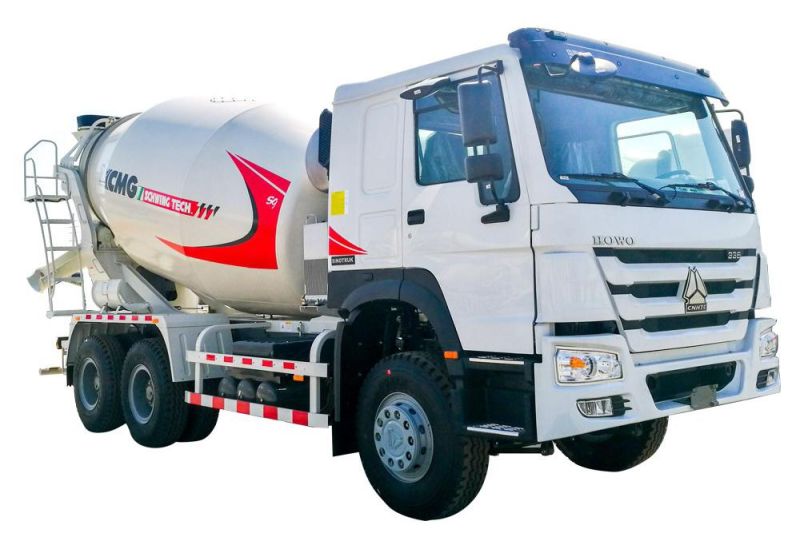

Overview Product ParametersDescriptionUnitG12KPerformance of mixing drumGeometric volumem³19.5Max. diameter of drummm2380Drum lengthmm5967Mounting tilt angle°12Rotary speedr/min0~14Charging speedm³/min≥3Discharging speedm³/min≥2Residual ratio of discharging%<0.7Range of slumpcm5~21Water supplyVolume of water tankL450Way of water supply Air pressureOverall machineChassis brand SinotruckChassis model ZZ1257N4048WSteering wheel Left steering wheelCurb masskg15870Driving type 6×4Wheelbasemm4025+1350PTO way Flywheel PTOOutline dimension (L×W×H)mm9850×2500×3980EngineModel WD615.47Rated powerKw/r/min273DisplacementL9.726Emission standard China IIProduct Show

Company Profile

FAQ

1: What kind terms of payment can be accepted?

A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
